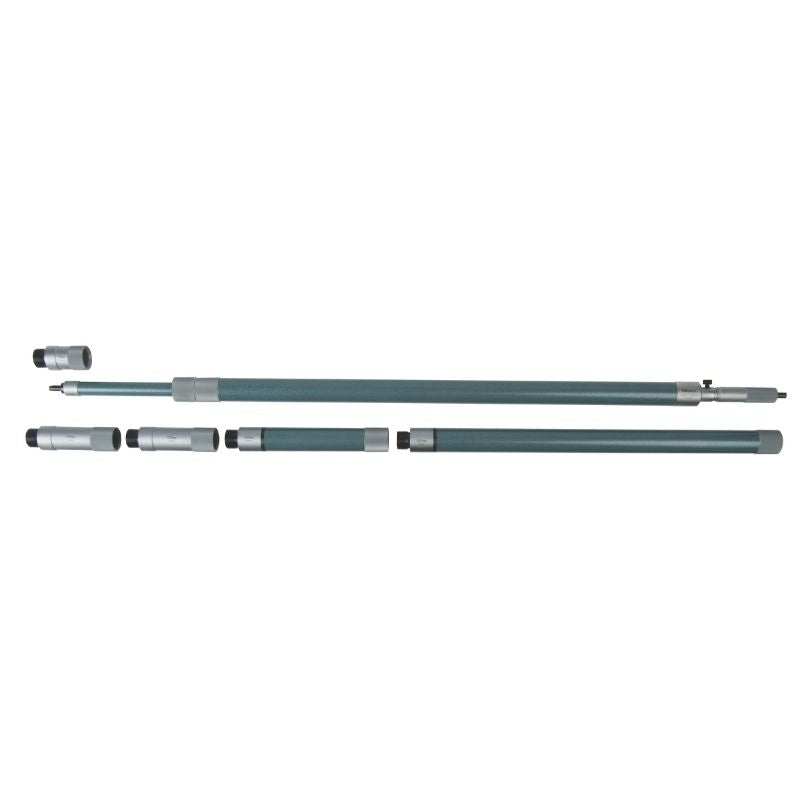

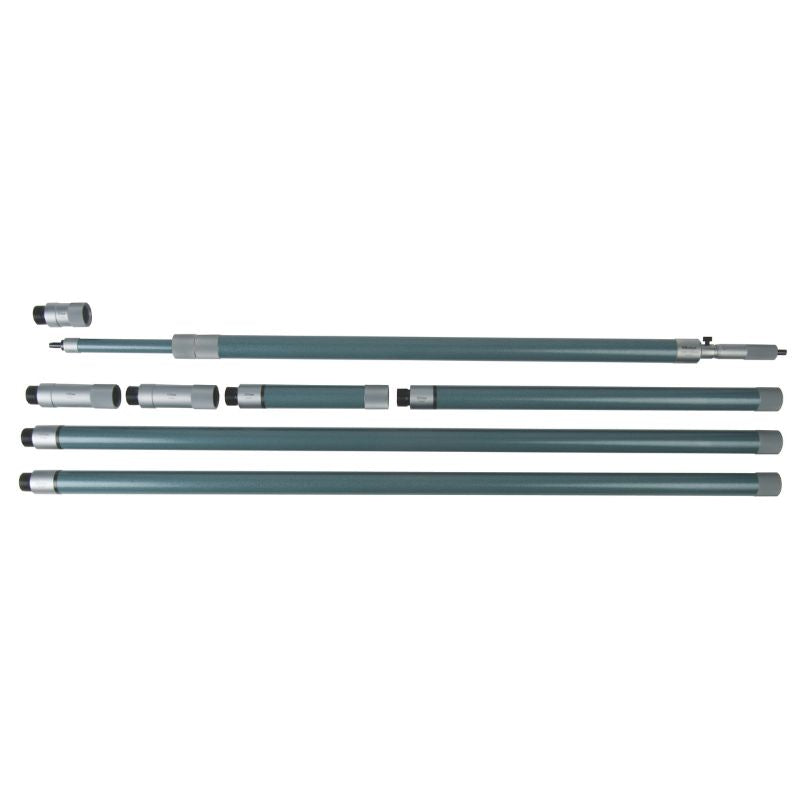

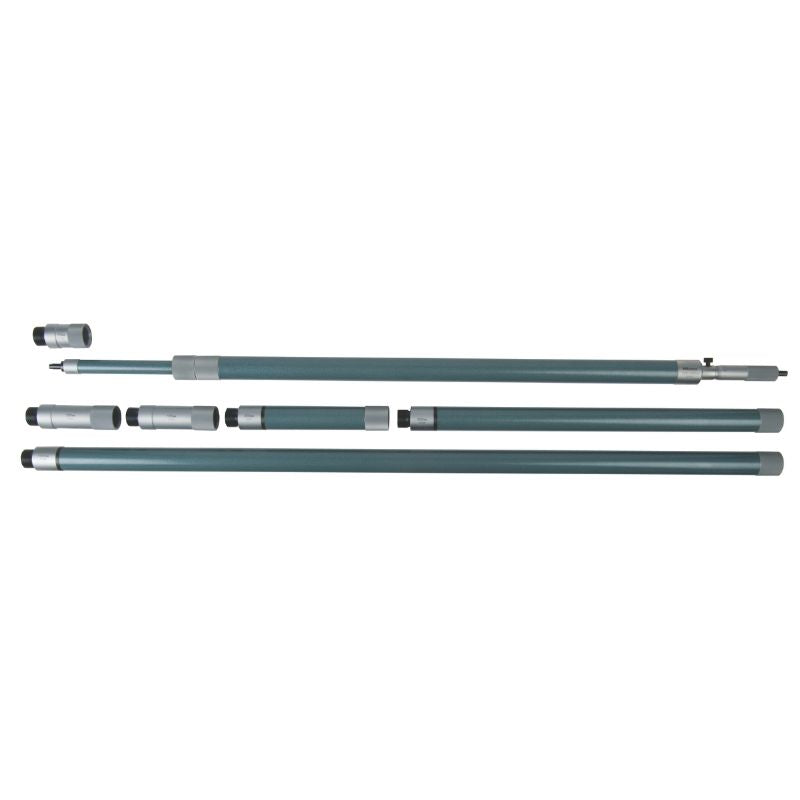

The Mitutoyo 140 Series Inside Micrometer is engineered for precise internal diameter measurements in bores, grooves, and slots. Featuring interchangeable extension rods, this versatile micrometer covers a wide measuring range while maintaining exceptional accuracy. Designed for professional machinists and quality inspectors, the 140 Series delivers reliable, repeatable results in both shop-floor and inspection-room environments.
| Metric | |||
| Range | SKU | Travel of micrometer head | Extension Pipes |
| 1000 - 2000mm | 140-157 | 50mm | 50mm, 100mm (2 pcs.), 200mm, 500mm |
| 1000 - 3000mm | 140-158 | 50mm | 50mm, 100mm (2 pcs.), 200mm, 500mm, 1000mm |
| 1000 - 4000mm | 140-159 | 50mm | 50mm, 100mm (2 pcs.), 200mm, 500mm, 1000mm (2 pcs.) |
| 1000 - 5000mm | 140-160 | 50mm | 50mm, 100mm (2 pcs.), 200mm, 500mm, 1000mm (3 pcs.) |
| Inch | |||
| Range | SKU | Travel of micrometer head | Extension Pipes |
| 40" - 80" | 140-161 | 2" | 2", 4" (2 pcs.), 8", 20" |
| 40" - 120" | 140-162 | 2" | 2", 4" (2 pcs.), 8", 20", 40" |
| 40" - 160" | 140-163 | 2" | 2", 4" (2 pcs.), 8", 20", 40" (2 pcs.) |
| 40" - 200" | 140-164 | 2" | 2", 4" (2 pcs.), 8", 20", 40" (3 pcs.) |
