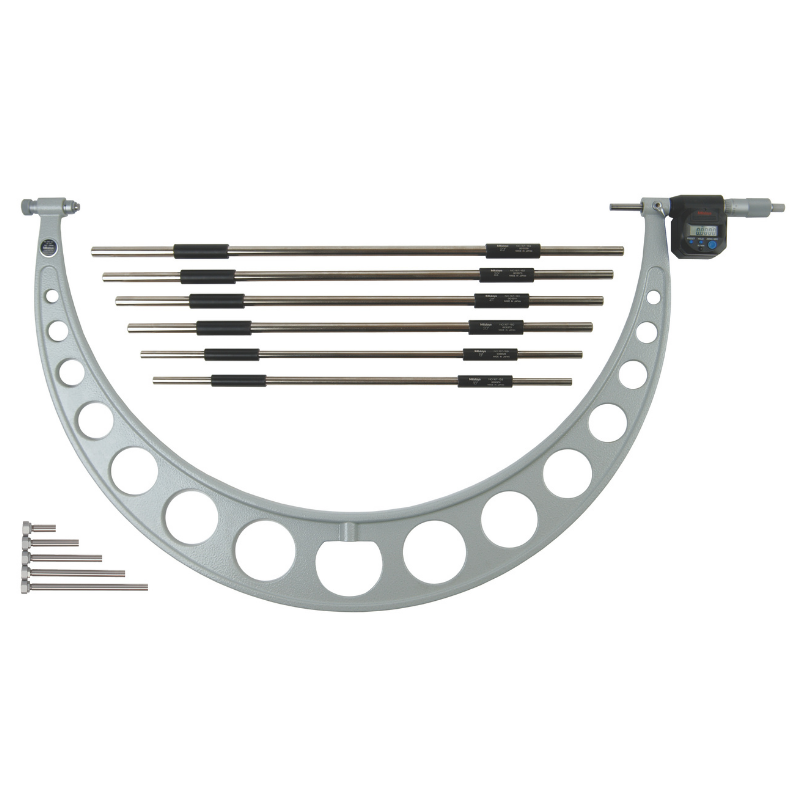

Mitutoyo 340-721 Digimatic Interchangeable Anvil Outside Micrometer 18-24"

Mitutoyo 340 Series Digimatic Interchangeable Anvil Outside Micrometer

  • Digital Digimatic micrometer
  • Interchangeable anvils
  • High resolution down to .00005″
  • SPC output ready
  • Includes matched anvils and setting standards
  • Ideal for large-part inspection in shop or QC environments
by Mitutoyo
$1,660.00
Availability: Translation missing: en.general.icons.icon_check_circle icon Only 2 left!

Notify me when back in stock

trustbadge

FREE SHIPPING

trustbadge

ALWAYS TAX FREE

trustbadge

PRICE MATCH GUARANTEE

trustbadge

EASY 30-DAY RETURN

Mitutoyo 340 Series Digimatic Interchangeable Anvil Outside Micrometer

The Mitutoyo 340 Series Digimatic Interchangeable Anvil Outside Micrometers provide high-accuracy digital measurement for large outside dimensions with the convenience of interchangeable anvils. Featuring a clear Digimatic LCD display with inch/metric capability, these micrometers minimize the number of tools required while maintaining excellent resolution and repeatability. Designed for inspection rooms and shop-floor environments, the 340 Series ensures fast, reliable measurements across extended ranges.



Key Features

  • Digimatic LCD display with inch/metric measurement
  • Interchangeable anvil system for wide measuring ranges
  • High-resolution digital output for precise readings
  • SPC data output for quality control applications
  • Rigid frame design for stable large-dimension measurement
  • Supplied with setting standards for accurate calibration



Specifications

Range Resolution SKU Mass (kg) Mass (lb) Items Included
0-6" / 0-152.4mm .00005" / 0.001mm 340-351-30 0.96 2.12 6 anvils & 5 standards

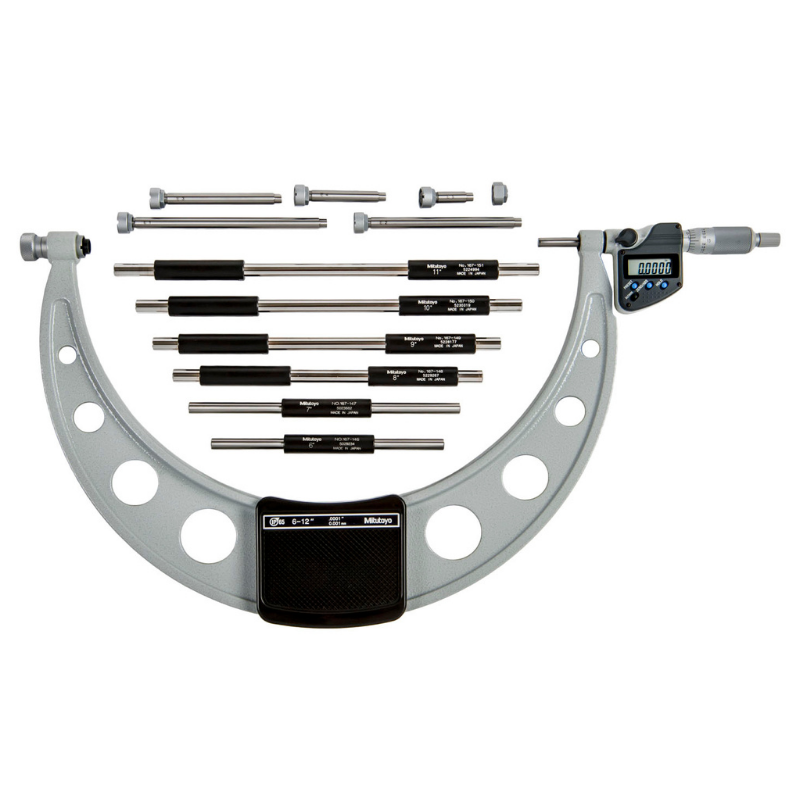

6-12" / 152.4-304.8mm .0001" / 0.001mm 340-352-30 1.88 4.14 6 anvils & 6 standards

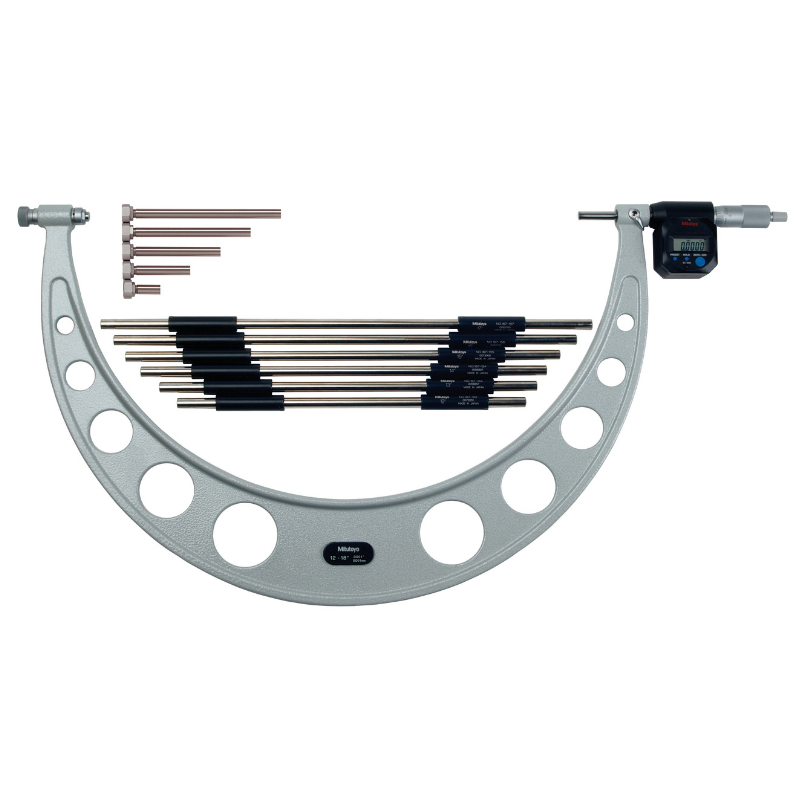

12-18" / 304.8-457.2mm .0001" / 0.001mm 340-720 4.75 10.47 6 anvils & 6 standards
18-24" / 457.2-609.6mm .0001" / 0.001mm 340-721 6.62 14.59 6 anvils & 6 standards
24-30" / 609.6-762.0mm .0001" / 0.001mm 340-722 10.06 22.18 6 anvils & 6 standards
30-36" / 762.0-914.4mm .0001" / 0.001mm 340-723 11.98 26.41 6 anvils & 6 standards



Items Included

  • Mitutoyo 340 Series Digimatic interchangeable anvil micrometer
  • Interchangeable anvils (quantity varies by model)
  • Setting standards (quantity varies by model)
  • Protective storage case
  • Battery and manufacturer documentation



INSIZE ISHW-L20B Webster Hardness Tester ManualMitutoyo 340 Series Digimatic Interchangeable Anvil Outside Micrometer Catalog

Mitutoyo 340 Series Digimatic Interchangeable Anvil Outside Micrometer

$1,660.00

Description

Mitutoyo 340 Series Digimatic Interchangeable Anvil Outside Micrometer

The Mitutoyo 340 Series Digimatic Interchangeable Anvil Outside Micrometers provide high-accuracy digital measurement for large outside dimensions with the convenience of interchangeable anvils. Featuring a clear Digimatic LCD display with inch/metric capability, these micrometers minimize the number of tools required while maintaining excellent resolution and repeatability. Designed for inspection rooms and shop-floor environments, the 340 Series ensures fast, reliable measurements across extended ranges.



Key Features

  • Digimatic LCD display with inch/metric measurement
  • Interchangeable anvil system for wide measuring ranges
  • High-resolution digital output for precise readings
  • SPC data output for quality control applications
  • Rigid frame design for stable large-dimension measurement
  • Supplied with setting standards for accurate calibration



Specifications

Range Resolution SKU Mass (kg) Mass (lb) Items Included
0-6" / 0-152.4mm .00005" / 0.001mm 340-351-30 0.96 2.12 6 anvils & 5 standards
6-12" / 152.4-304.8mm .0001" / 0.001mm 340-352-30 1.88 4.14 6 anvils & 6 standards
12-18" / 304.8-457.2mm .0001" / 0.001mm 340-720 4.75 10.47 6 anvils & 6 standards
18-24" / 457.2-609.6mm .0001" / 0.001mm 340-721 6.62 14.59 6 anvils & 6 standards
24-30" / 609.6-762.0mm .0001" / 0.001mm 340-722 10.06 22.18 6 anvils & 6 standards
30-36" / 762.0-914.4mm .0001" / 0.001mm 340-723 11.98 26.41 6 anvils & 6 standards



Items Included

  • Mitutoyo 340 Series Digimatic interchangeable anvil micrometer
  • Interchangeable anvils (quantity varies by model)
  • Setting standards (quantity varies by model)
  • Protective storage case
  • Battery and manufacturer documentation



INSIZE ISHW-L20B Webster Hardness Tester ManualMitutoyo 340 Series Digimatic Interchangeable Anvil Outside Micrometer Catalog
