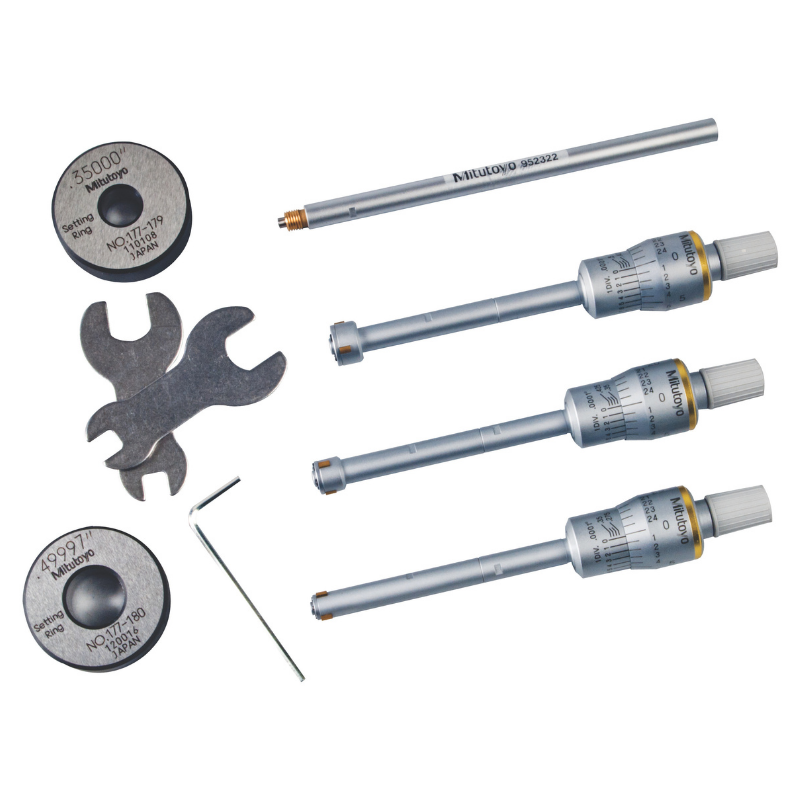

Mitutoyo 368-916 Holtest 3 Gage Set .275-.5" Carb,TN

Mitutoyo 368 Holtest Bore Gage Set

by Mitutoyo
$2,790.00
Have a question?

Call/Text/Email before you buy.

Our team of experts review every order and are happy to answer questions about compatibility, specs, or lead times. Don't guess - let's get it right the first time.

Call / Text 617-398-7852 Email support@precisionengineeringsupply.com
Authorized Dealer
100% Authentic Products
Fast and Free Shipping
Most Products Ship Same Day
Easy Returns
30-Day Return Policy (Excludes Made To Order Items)
Dedicated Account Support
Personalized Service, Every Order
Expert Support
Call Us Before You Buy
Top Rated
Trusted By Professionals Nationwide
Customers rate us 4.5/5 based on 49 reviews.

Mitutoyo 368 Holtest Bore Gage Set

$2,790.00

Description

Mitutoyo 368 Holtest Bore Gage Set

The Mitutoyo 368 Holtest Gage Set is a precision internal measuring system designed for fast, accurate measurement of small holes, bores, and internal diameters. Featuring a self-centering two-point contact design, the Holtest gage delivers highly repeatable results with minimal operator influence. Ideal for quality control, toolrooms, and production environments, this modular gage set allows users to cover multiple diameter ranges using interchangeable heads and extension rods.



Key Features

  • Two-point self-centering contact for precise internal measurements
  • Modular design with interchangeable measuring heads
  • High accuracy and repeatability for small-diameter bores
  • Constant measuring force minimizes operator influence
  • Hardened measuring surfaces for long service life



Specifications

Inch/Metric
Overall Range SKU Range of Each Gage Setting Rings Included
0.08 in-0.12 368-926 0.08-0.1 in, 0.1-0.12 in 0.1 in DIA.
0.12 in-0.28 in 368-927 0.12-0.16 in, 0.16-0.2 in, 0.2-.0.24 in, 0.24-.028 in 0.16 in DIA., 0.24 in DIA.
0.275 in-0.5 in 368-916* 0.275-0.35 in, 0.35-0.425 in, 0.425-0.5 in 0.35 in DIA., 0.5 in DIA.
0.5 in-0.8 in 368-917* 0.5-0.65 in, 0.65-0.8 in 0.65 in DIA.
0.8 in-2 in 368-918* 0.8-1 in, 1-1.2 in, 1.2-1.6 in, 1.6-2 in 1 in DIA., 1.6 in DIA.
2 in-4 in 368-919* 2-2.5 in, 2.5-3 in, 3-3.5 in, 3.5-4 in 2.5 in DIA., 3.5 in DIA.
4 in-8 in 368-920* 4-5 in, 5-6 in, 6-7 in, 7-8 in 5 in DIA., 7 in DIA.

* with titanium-coated measuring pins

Items Included

  • Mitutoyo 368 Holtest measuring heads
  • Extension rods
  • Setting standards or rings
  • Protective fitted case
  • Manufacturer documentation



INSIZE ISHW-L20B Webster Hardness Tester ManualMitutoyo 368 Holtest Gage Set Catalog
