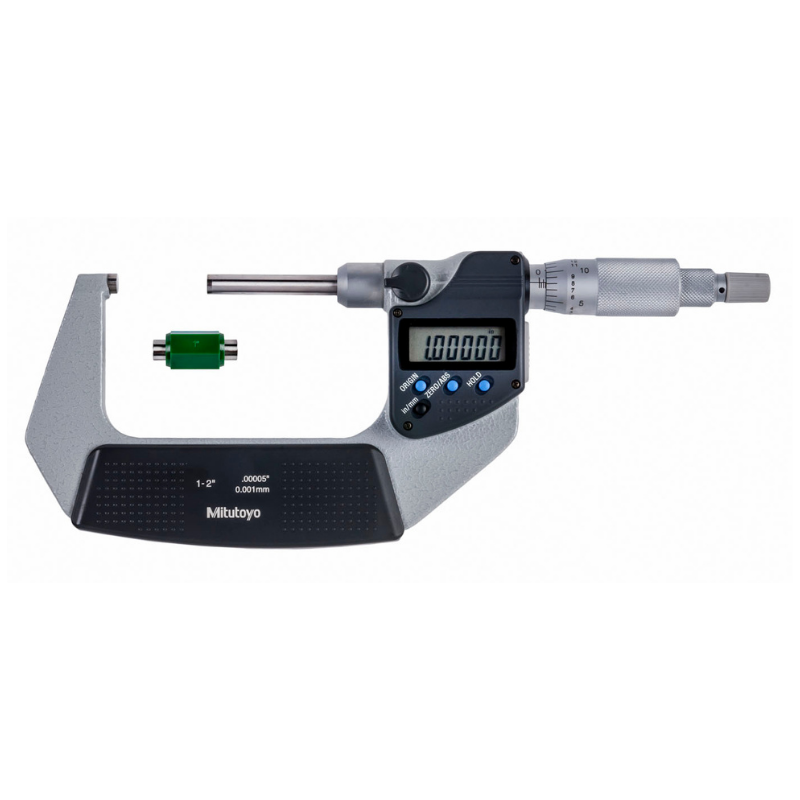

Mitutoyo 406-351-30 Digimatic Non-rotating Micrometer 1-2" .00005/.001mm SPC

Mitutoyo 406 Series Digimatic Non-rotating Micrometer

  • Non-rotating spindle
  • High-resolution Digimatic display
  • Ideal for sheet metal, tubing, soft plastics, and thin parts
  • Absolute encoder
  • Consistent measuring force
by Mitutoyo
$1,040.00
Availability: Translation missing: en.general.icons.icon_check_circle icon Only 2 left!

Notify me when back in stock

trustbadge

FREE SHIPPING

trustbadge

ALWAYS TAX FREE

trustbadge

PRICE MATCH GUARANTEE

trustbadge

EASY 30-DAY RETURN

Mitutoyo 406 Series Digimatic Non-rotating Micrometer

The Mitutoyo 406 Series Digimatic Non-Rotating Micrometer is designed for accurate thickness and length measurements of delicate or irregularly shaped materials. Featuring a non-rotating spindle, this micrometer prevents surface twisting during measurement, making it ideal for soft materials, thin sheets, tubing, and precision components. The Digimatic digital display delivers fast, reliable readings in both metric and inch models with exceptional repeatability.



Key Features

  • Non-rotating spindle prevents material distortion
  • High-resolution Digimatic digital display
  • Ideal for soft, thin, or delicate materials
  • Consistent measuring force for repeatable results
  • Absolute encoder eliminates zero reset after power-off
  • Available in metric and inch measuring ranges



Specifications

Metric
Range Resolution SKU Accuracy
0 - 25mm 0.001mm 406-250-30 ±3μm
25 - 50mm 0.001mm 406-251-30 ±3μm
50 - 75mm 0.001mm 406-252-30 ±3μm
75 - 100mm 0.001mm 406-253-30 ±4μm



Inch
Range Resolution SKU Accuracy
0 - 1" / 0 - 25.4mm .00005" / 0.001mm 406-350-30 ±.00015"
1 - 2" / 25.4 - 50.8mm .00005" / 0.001mm 406-351-30 ±.00015"
2 - 3" / 50.8 - 72.6mm .00005" / 0.001mm 406-352-30 ±.00015"
3 - 4" / 76.2 - 101.6mm .00005" / 0.001mm 406-353-30 ±.0002"



Items Included

  • Mitutoyo 406 Series Digimatic Non-Rotating Micrometer (model specific)
  • Protective fitted case
  • Calibration standard (as applicable)
  • Inspection certificate
  • Manufacturer documentation
