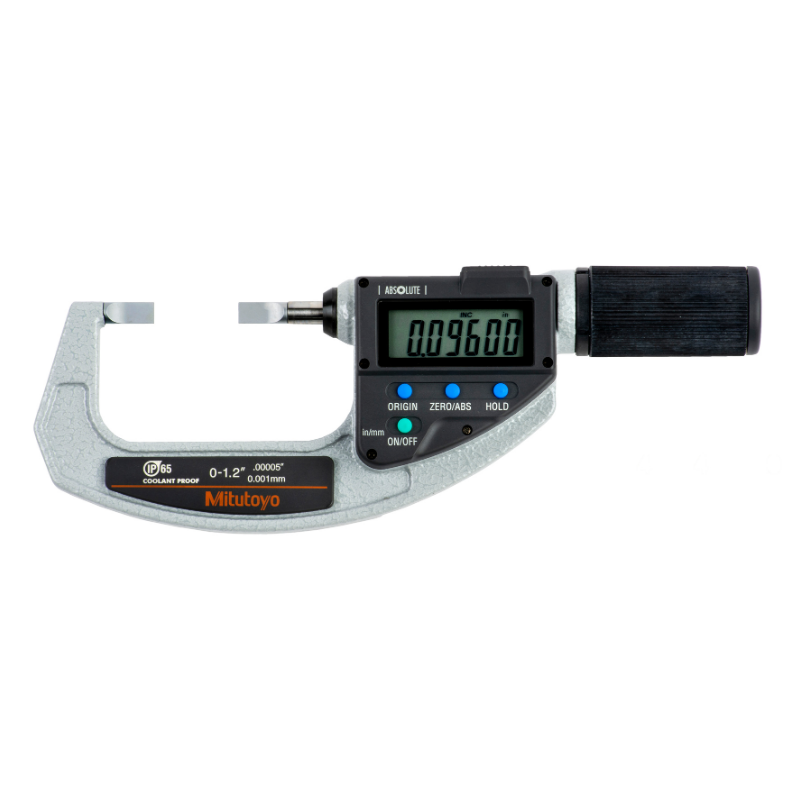

Mitutoyo 422-421-22 Digimatic Quickmic Blade Type 1.2" SPC IP65

Mitutoyo 422 Digimatic Quickmike Blade Micrometer

  • Quickmike rapid spindle feed
  • Blade anvils
  • High-resolution Digimatic display
  • Absolute encoder
  • Multiple blade styles
by Mitutoyo
$1,290.00
Availability: Translation missing: en.general.icons.icon_check_circle icon Only 1 left!

Notify me when back in stock

trustbadge

FREE SHIPPING

trustbadge

ALWAYS TAX FREE

trustbadge

PRICE MATCH GUARANTEE

trustbadge

EASY 30-DAY RETURN

Mitutoyo 422 Digimatic Quickmike Blade Micrometer

The Mitutoyo 422 Digimatic Quickmike Blade Micrometer is designed for fast, highly accurate measurement of grooves, keyways, splines, and narrow features where standard micrometers cannot reach. Featuring Mitutoyo’s Quickmike rapid-feed mechanism, these micrometers reduce spindle travel time while maintaining exceptional precision. With interchangeable blade styles and a high-resolution Digimatic display, the 422 Series is ideal for high-throughput inspection and precision machining applications.



Key Features

  • Quickmike mechanism enables ultra-fast spindle movement
  • Thin blade anvils for measuring narrow grooves and slots
  • High-resolution Digimatic LCD with inch/metric conversion
  • Absolute encoder eliminates zero reset on power-up
  • Constant measuring force via ratchet stop
  • Multiple blade types (A, B, C, D) for application flexibility



Specifications

Quickmike Type
Range SKU Accuracy Resolution Notes Mass (g)
0 - 1.2" / 0 - 30.48mm 422-421 ±.00015" .00005" / 0.001mm Type A 350
1 - 2.2" / 25.4 - 55.88mm 422-422 ±.00015" .00005" / 0.001mm Type A 490



Digital Model
Range SKU Accuracy Resolution Notes Mass (g)
0 - 1" / 0 - 25.4mm
 422-330-30 ±.00015" .00005" / 0.001mm Type A 365
422-360-30 ±.00015" .00005" / 0.001mm Type B 365
422-370-30 ±.00015" .00005" / 0.001mm Type C 365
422-371-30 ±.00015" .00005" / 0.001mm Type D 365
1 - 2" / 25.4 - 50.8mm
 422-331-30 ±.00015" .00005" / 0.001mm Type A 565
422-361-30 ±.00015" .00005" / 0.001mm Type B 565
2 - 3" / 50.8 - 76.2mm 422-332-30 ±.00015" .00005" / 0.001mm Type A 465
3 - 4" / 76.2 - 101.6mm 422-333-30 ±.0002" .00005" / 0.001mm Type A 580



Items Included

  • Mitutoyo 422 Digimatic Quickmike Blade Micrometer (model specific)
  • SR44 battery
  • Protective fitted case
  • Inspection certificate
  • Manufacturer documentation



INSIZE ISHW-L20B Webster Hardness Tester ManualMitutoyo 422 Digimatic Quickmike Blade Micrometer Catalog

Mitutoyo 422 Digimatic Quickmike Blade Micrometer

$1,290.00

Description

Mitutoyo 422 Digimatic Quickmike Blade Micrometer

The Mitutoyo 422 Digimatic Quickmike Blade Micrometer is designed for fast, highly accurate measurement of grooves, keyways, splines, and narrow features where standard micrometers cannot reach. Featuring Mitutoyo’s Quickmike rapid-feed mechanism, these micrometers reduce spindle travel time while maintaining exceptional precision. With interchangeable blade styles and a high-resolution Digimatic display, the 422 Series is ideal for high-throughput inspection and precision machining applications.



Key Features

  • Quickmike mechanism enables ultra-fast spindle movement
  • Thin blade anvils for measuring narrow grooves and slots
  • High-resolution Digimatic LCD with inch/metric conversion
  • Absolute encoder eliminates zero reset on power-up
  • Constant measuring force via ratchet stop
  • Multiple blade types (A, B, C, D) for application flexibility



Specifications

Quickmike Type
Range SKU Accuracy Resolution Notes Mass (g)
0 - 1.2" / 0 - 30.48mm 422-421 ±.00015" .00005" / 0.001mm Type A 350
1 - 2.2" / 25.4 - 55.88mm 422-422 ±.00015" .00005" / 0.001mm Type A 490



Digital Model
Range SKU Accuracy Resolution Notes Mass (g)
0 - 1" / 0 - 25.4mm 422-330-30 ±.00015" .00005" / 0.001mm Type A 365
422-360-30 ±.00015" .00005" / 0.001mm Type B 365
422-370-30 ±.00015" .00005" / 0.001mm Type C 365
422-371-30 ±.00015" .00005" / 0.001mm Type D 365
1 - 2" / 25.4 - 50.8mm 422-331-30 ±.00015" .00005" / 0.001mm Type A 565
422-361-30 ±.00015" .00005" / 0.001mm Type B 565
2 - 3" / 50.8 - 76.2mm 422-332-30 ±.00015" .00005" / 0.001mm Type A 465
3 - 4" / 76.2 - 101.6mm 422-333-30 ±.0002" .00005" / 0.001mm Type A 580



Items Included

  • Mitutoyo 422 Digimatic Quickmike Blade Micrometer (model specific)
  • SR44 battery
  • Protective fitted case
  • Inspection certificate
  • Manufacturer documentation



INSIZE ISHW-L20B Webster Hardness Tester ManualMitutoyo 422 Digimatic Quickmike Blade Micrometer Catalog
