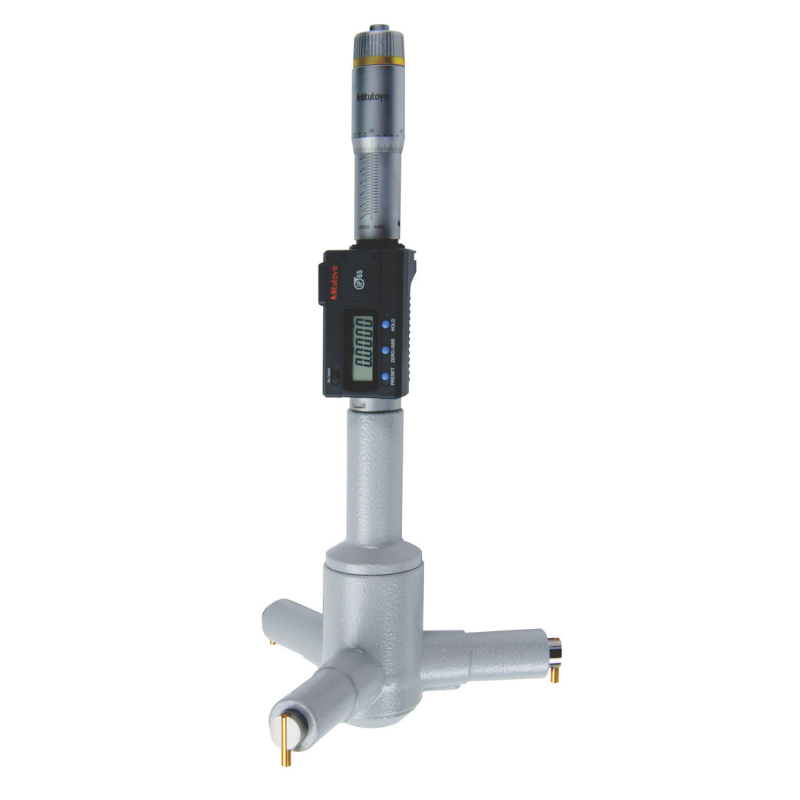

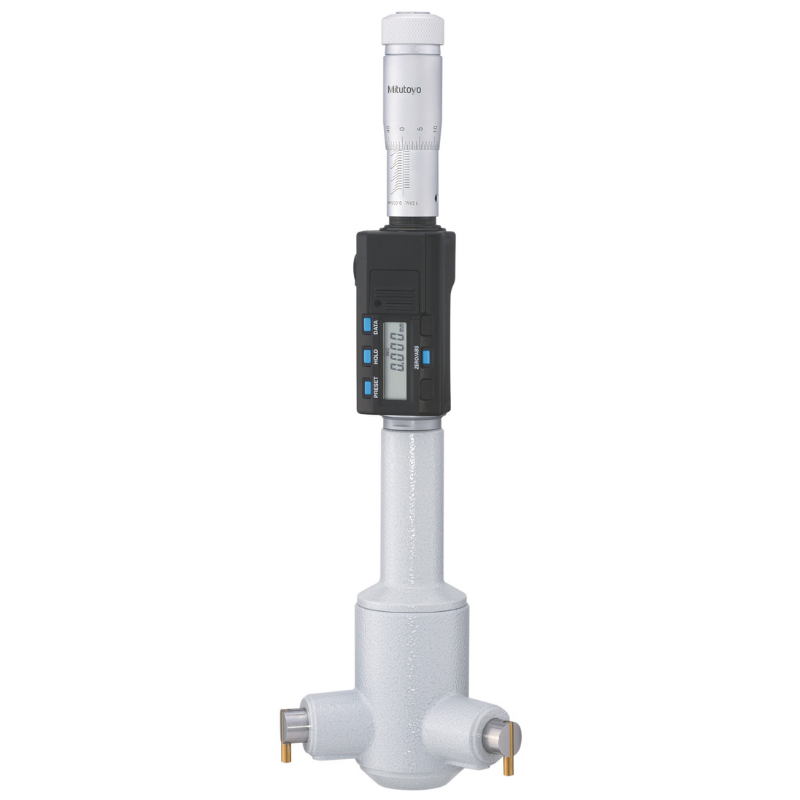

Mitutoyo 468-277 Digimatic Holtest 7 - 8" SPC

Mitutoyo 468 Digimatic Holtest Series (Inch)

  • Covers internal bore sizes from 0.275" to 12"
  • Self-centering 3-point system
  • ABS Digimatic technology
  • SPC output
  • Ideal for blind bores and short bore measurements
by Mitutoyo
$2,680.00
Availability: Translation missing: en.general.icons.icon_check_circle icon Only 2 left!

Notify me when back in stock

trustbadge

FREE SHIPPING

trustbadge

ALWAYS TAX FREE

trustbadge

PRICE MATCH GUARANTEE

trustbadge

EASY 30-DAY RETURN

Mitutoyo 468 Digimatic Holtest Series (Inch)

The Mitutoyo 468 Series Digimatic Holtest (Inch) provides fast, accurate internal diameter measurement across a wide range of bore sizes. Designed for production inspection and quality control, the Holtest features a self-centering 3-point measuring system that delivers stable, repeatable measurements even in blind or short bores. Mitutoyo’s ABS Digimatic technology ensures instant readings without origin reset, while SPC output supports seamless data collection for statistical process control. With models covering 0.275" to 12", the 468 Series offers a complete solution for precision internal measurement.



Key Features

  • Wide inch measuring range from 0.275" to 12"
  • Self-centering 3-point contact for stable bore measurement
  • ABS Digimatic system eliminates origin reset
  • High accuracy across all measuring ranges
  • SPC output for quality control and inspection reporting
  • Ideal for production, in-process, and final inspection



Specifications

Inch SKU Number Inch Range Accuracy Extension Rod
468-261 0.275 in - 0.35 in
±2μm (max diff. of 2μm)
±0.0001 in (max diff. of 0.0001 in)
100mm (952322)
468-262 0.35 in - 0.425 in
468-263 0.425 in - 0.5 in
468-264 0.5 in - 0.65 in
±3μm (max diff. of 2μm)
±0.00015 in (max diff. of 0.00015 in)
150mm (952621)
468-265 0.65 in - 0.8 in
468-266 0.8 in - 1 in
±3μm (max diff. of 3μm)
±0.00015 in (max diff. of 0.00015 in)
150mm (952622)

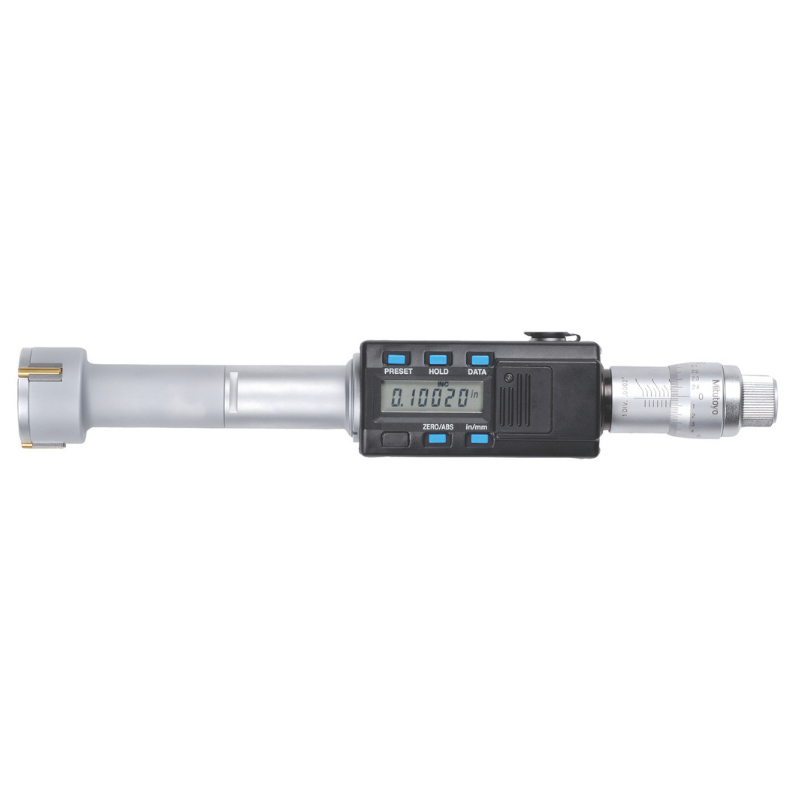

468-267 1 in - 1.2 in

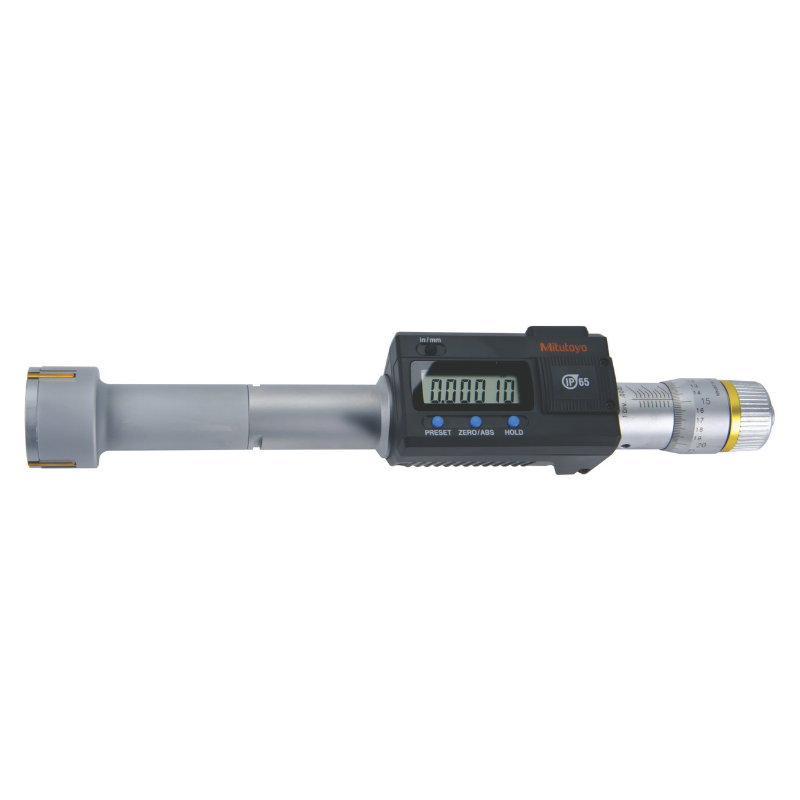

468-268 1.2 in - 1.6 in

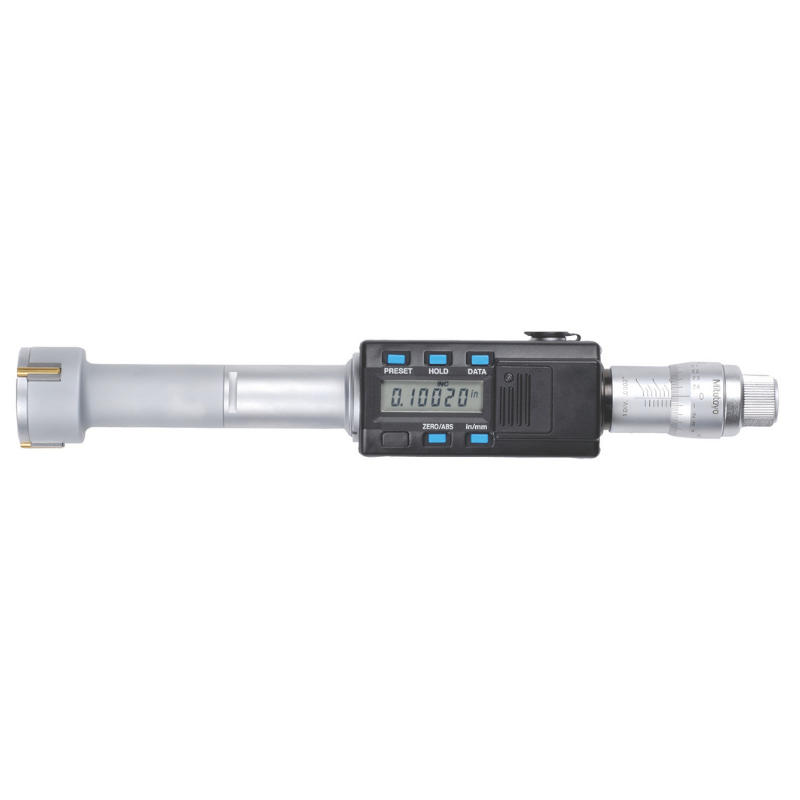

468-269 1.6 in - 2 in

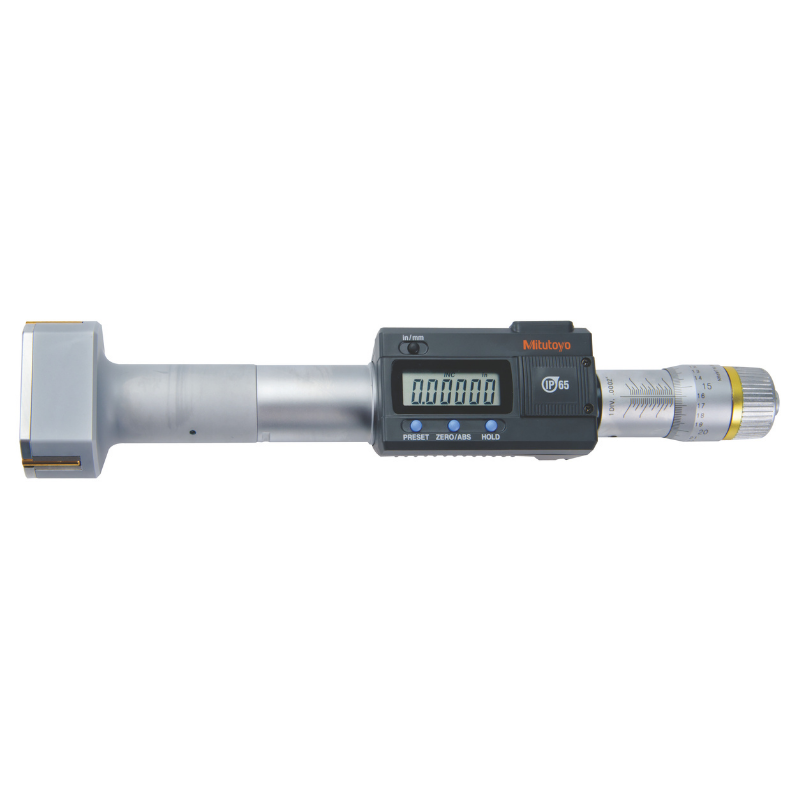

468-270 2 in - 2.5 in
150mm (952623)
468-271 2.5 in - 3 in
±4μm (max diff. of 4μm)
±0.0002 in (max diff. of 0.0002 in)

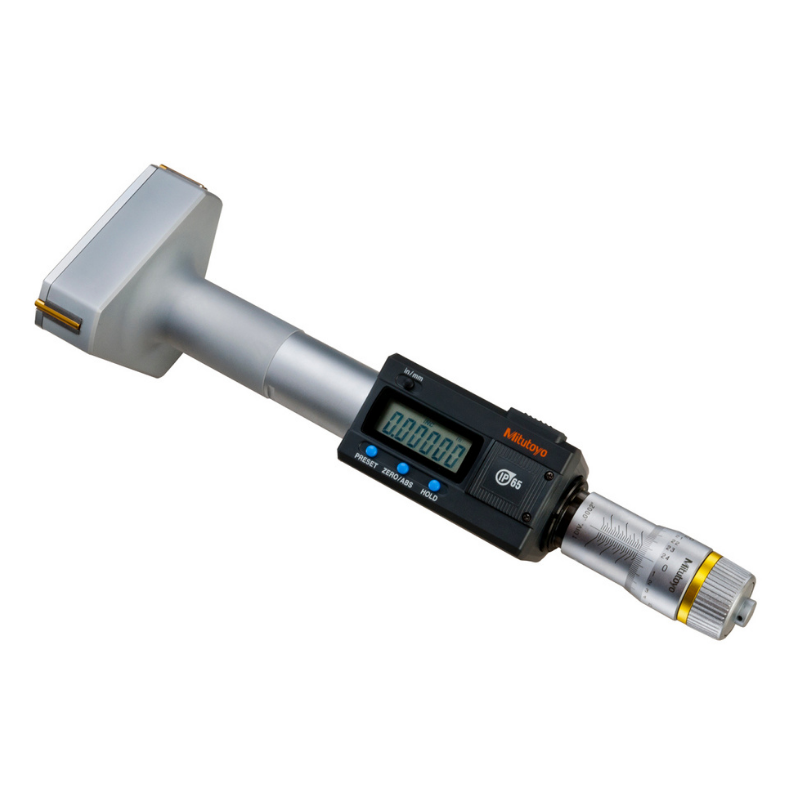

468-272 3 in - 3.5 in
468-273 3.5 in - 4 in

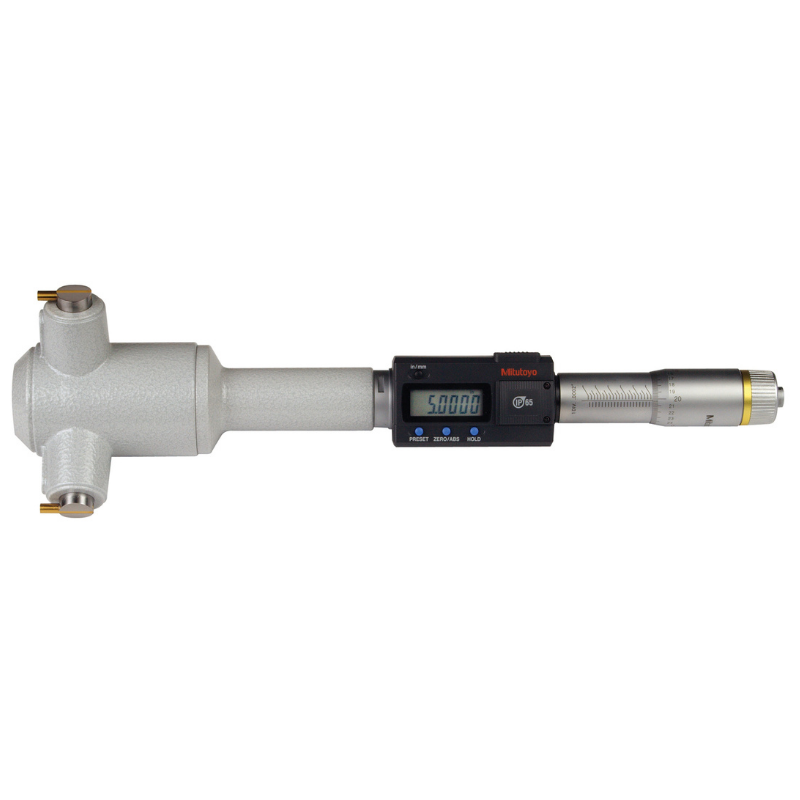

468-274 4 in - 5 in
±5μm (max diff. of 5μm)
±0.00025 in (max diff. of 0.00025 in)

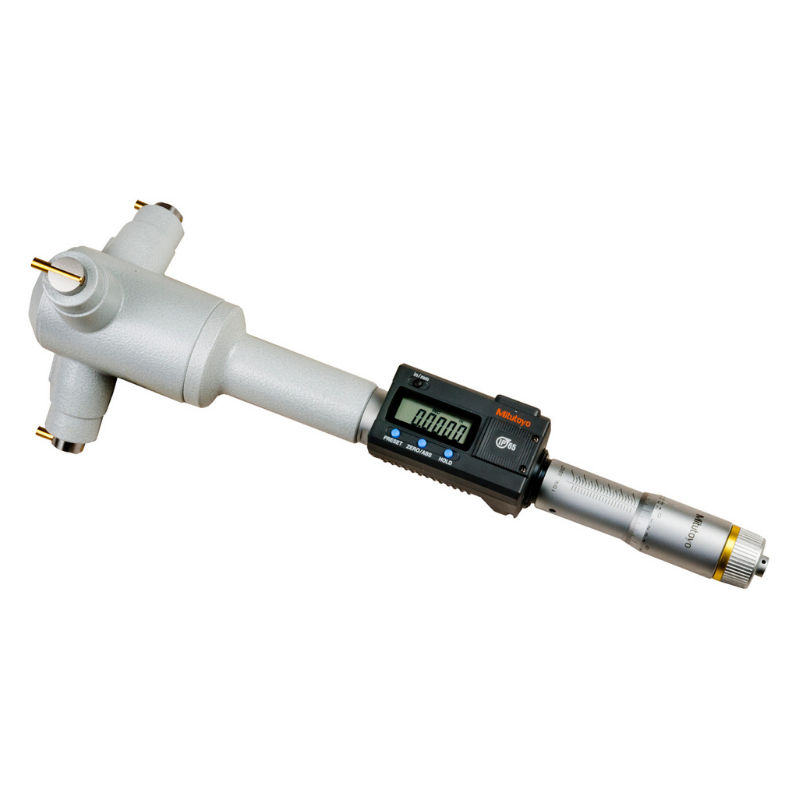

468-275 5 in - 6 in
468-276 6 in - 7 in
468-277 7 in - 8 in
468-278 8 in - 9 in
±6μm (max diff. of 6μm)
±0.0003 in (max diff. of 0.0003 in)
468-279 9 in - 10 in
468-280 10 in - 11 in
468-281 11 in - 12 in



Items Included

  • Mitutoyo 468 Series Digimatic Holtest (selected model)
  • Measuring head
  • Extension rod (Sold Separately)
  • SR44 battery
  • Manufacturer documentation
