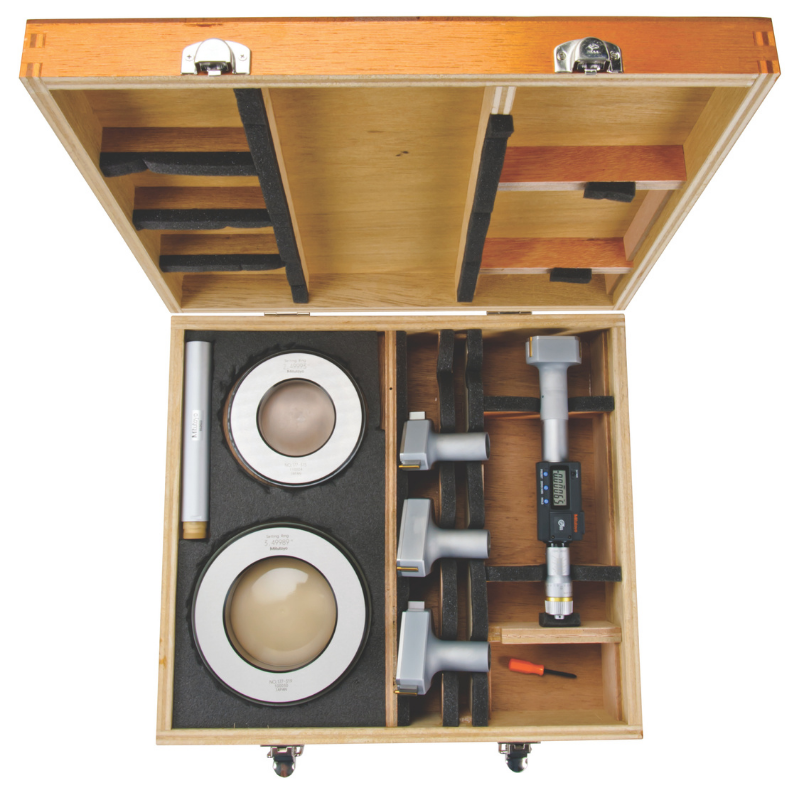

Mitutoyo 468-979 Digimatic Holtest 4 Head Set 2-4" / 50.-101.6mm SPC

Mitutoyo 468 Holtest Interchangeable-Head Gauge Set

  • Measures internal diameters from 0.275" up to 8"
  • Self-centering 3-point system
  • Interchangeable heads
  • Includes matched setting rings
  • Ideal for production, machining, and QC inspection
by Mitutoyo
$5,950.00
Availability: Translation missing: en.general.icons.icon_check_circle icon Only 1 left!

Notify me when back in stock

trustbadge

FREE SHIPPING

trustbadge

ALWAYS TAX FREE

trustbadge

PRICE MATCH GUARANTEE

trustbadge

EASY 30-DAY RETURN

Mitutoyo 468 Holtest Interchangeable-Head Gauge Set

The Mitutoyo 468 Holtest Interchangeable-Head Gauge Sets are precision internal diameter measuring instruments designed for fast, repeatable bore measurements. These sets use a self-centering 3-point measuring system with interchangeable measuring heads to cover a wide range of bore sizes while maintaining high accuracy. Supplied with matched setting rings, the 468 Holtest sets are ideal for production inspection, machining operations, and quality control applications requiring dependable inside diameter measurement.



Key Features

  • Self-centering 3-point contact for stable, repeatable bore measurement
  • Interchangeable measuring heads for wide range coverage
  • Inch measurement system for shop-floor and inspection use
  • Includes precision setting rings for accurate setup
  • Rugged construction suitable for production environments



Specifications

Range SKU Range of Each Head Setting Rings Included
0.275 in - 0.5 in 468-976 0.275 - 0.35 in, 0.35 - 0.425 in, 0.425 - 0.5 in 0.35 in DIA., 0.425 in DIA.

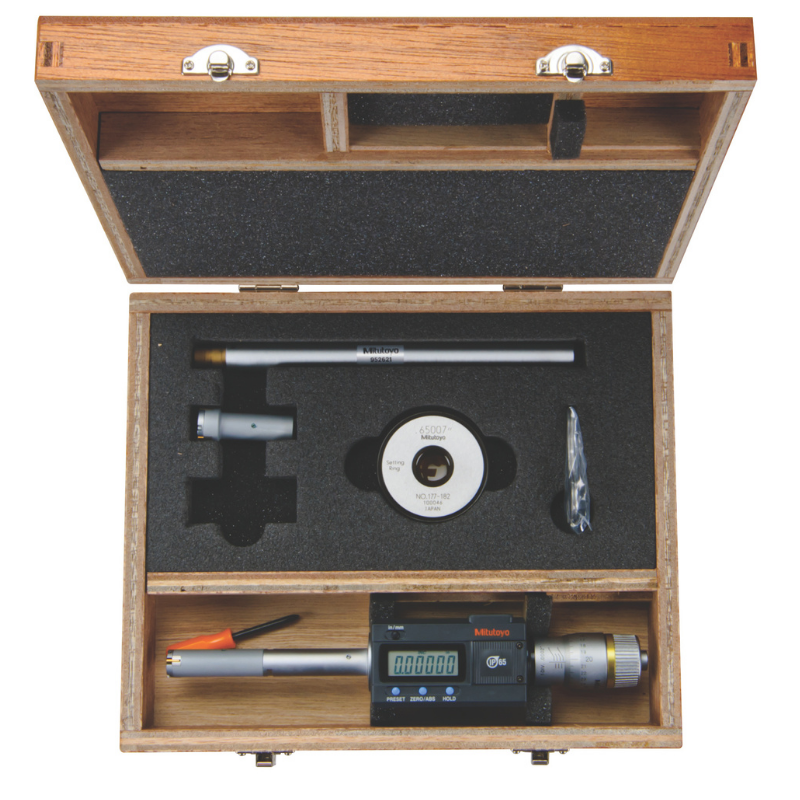

0.5 in - 0.8 468-977 0.5 - 0.65 in, 0.65 - 0.8 in 0.65 in DIA.

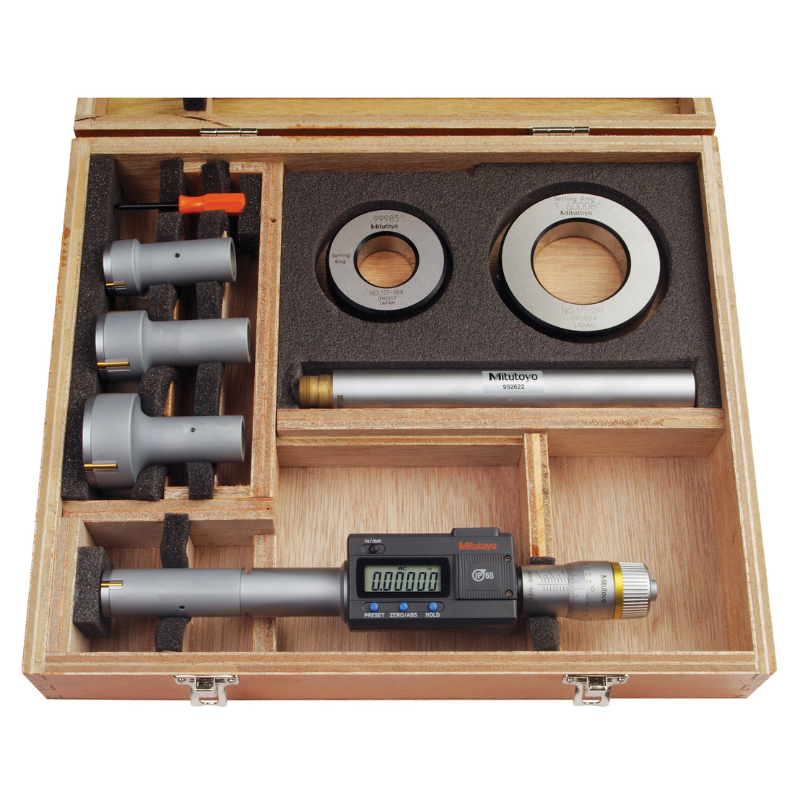

0.8 in - 2 in 468-978 0.8 - 1 in, 1 - 1.2 in, 1.2 - 1.6 in, 1.6 - 2 in 1 in DIA., 1.6 in DIA.
2 in - 4 in 468-979 2 - 2.5 in, 2.5 - 3 in, 3 - 3.5 in, 3.5 - 4 in 2.5 in DIA., 3.5 in DIA
4 in - 8 in 468-980 4 - 5 in, 5 - 6 in, 6 - 7 in, 7 - 8 in 5 in DIA., 7 in DIA.



Items Included

  • Mitutoyo 468 Holtest gauge body
  • Interchangeable measuring heads (per selected range)
  • Precision setting rings (per set configuration)
  • Fitted storage case
  • Manufacturer documentation



INSIZE ISHW-L20B Webster Hardness Tester ManualMitutoyo 468 Holtest Interchangeable-Head Gauge Set Catalog

Mitutoyo 468 Holtest Interchangeable-Head Gauge Set

$5,950.00

Description

Mitutoyo 468 Holtest Interchangeable-Head Gauge Set

The Mitutoyo 468 Holtest Interchangeable-Head Gauge Sets are precision internal diameter measuring instruments designed for fast, repeatable bore measurements. These sets use a self-centering 3-point measuring system with interchangeable measuring heads to cover a wide range of bore sizes while maintaining high accuracy. Supplied with matched setting rings, the 468 Holtest sets are ideal for production inspection, machining operations, and quality control applications requiring dependable inside diameter measurement.



Key Features

  • Self-centering 3-point contact for stable, repeatable bore measurement
  • Interchangeable measuring heads for wide range coverage
  • Inch measurement system for shop-floor and inspection use
  • Includes precision setting rings for accurate setup
  • Rugged construction suitable for production environments



Specifications

Range SKU Range of Each Head Setting Rings Included
0.275 in - 0.5 in 468-976 0.275 - 0.35 in, 0.35 - 0.425 in, 0.425 - 0.5 in 0.35 in DIA., 0.425 in DIA.
0.5 in - 0.8 468-977 0.5 - 0.65 in, 0.65 - 0.8 in 0.65 in DIA.
0.8 in - 2 in 468-978 0.8 - 1 in, 1 - 1.2 in, 1.2 - 1.6 in, 1.6 - 2 in 1 in DIA., 1.6 in DIA.
2 in - 4 in 468-979 2 - 2.5 in, 2.5 - 3 in, 3 - 3.5 in, 3.5 - 4 in 2.5 in DIA., 3.5 in DIA
4 in - 8 in 468-980 4 - 5 in, 5 - 6 in, 6 - 7 in, 7 - 8 in 5 in DIA., 7 in DIA.



Items Included

  • Mitutoyo 468 Holtest gauge body
  • Interchangeable measuring heads (per selected range)
  • Precision setting rings (per set configuration)
  • Fitted storage case
  • Manufacturer documentation



INSIZE ISHW-L20B Webster Hardness Tester ManualMitutoyo 468 Holtest Interchangeable-Head Gauge Set Catalog
