Mitutoyo 500 Series Digimatic Caliper
The Mitutoyo 500 Series Digimatic Calipers are industry-standard digital calipers trusted worldwide for fast, accurate inside, outside, depth, and step measurements. Featuring a high-contrast LCD display, inch/metric conversion, and rugged stainless steel construction, the 500 Series delivers reliable performance in both shop-floor and inspection environments. Multiple configurations - including carbide-tipped jaws and extended measuring ranges - allow users to select the ideal caliper for their application.
Key Features
- Digimatic LCD display with instant inch/metric conversion
- Absolute encoder technology eliminates origin reset on power-up
- Hardened stainless steel beam for durability and accuracy
- Multiple configurations including carbide-tipped jaws
- Smooth slider action for consistent measurement feel
- Optional rod-type depth bars on select models
Specifications
| Range |
SKU |
Accuracy |
Resolution |
Notes |
|
0 - 4" / 0 - 100mm
|
500-170-30 |
±.001” |
.0005” / 0.01mm
|
.075" rod depth bar |
| 500-195-30* |
±.001” |
.075" rod depth bar |
|
0 - 6" / 0 - 150mm
|
500-171-30 |
±.001” |
- |
| 500-174-30 |
±.001” |
Carbide-tipped jaws for OD measurement |
| 500-175-30 |
±.001” |
Carbide-tipped jaws for OD & ID measurement |
| 500-178-30 |
±.001” |
.075" rod depth bar |
| 500-196-30* |
±.001” |
- |
| 500-159-30* |
±.001” |
Carbide-tipped jaws for OD measurement |
| 500-160-30* |
±.001” |
Carbide-tipped jaws for OD & ID measurement |
|
0 - 8" / 0 - 200mm
|
500-172-30 |
±.001” |
- |
| 500-176-30 |
±.001” |
Carbide-tipped jaws for OD measurement |
| 500-177-30 |
±.001” |
Carbide-tipped jaws for OD & ID measurement |
| 500-197-30* |
±.001” |
- |
| 500-163-30* |
±.001” |
Carbide-tipped jaws for OD measurement |
| 500-164-30* |
±.001” |
Carbide-tipped jaws for OD & ID measurement |
|
0 - 12" / 0 - 300mm
|
500-173 |
±.0015” |
- |
| 500-167 |
±.0015” |
Carbide-tipped jaws for OD measurement |
| 500-168 |
±.0015” |
Carbide-tipped jaws for OD & ID measurement |
| 500-193* |
±.0015” |
- |
| 500-165* |
±.0015” |
Carbide-tipped jaws for OD measurement |
| 500-166* |
±.0015” |
Carbide-tipped jaws for OD & ID measurement |

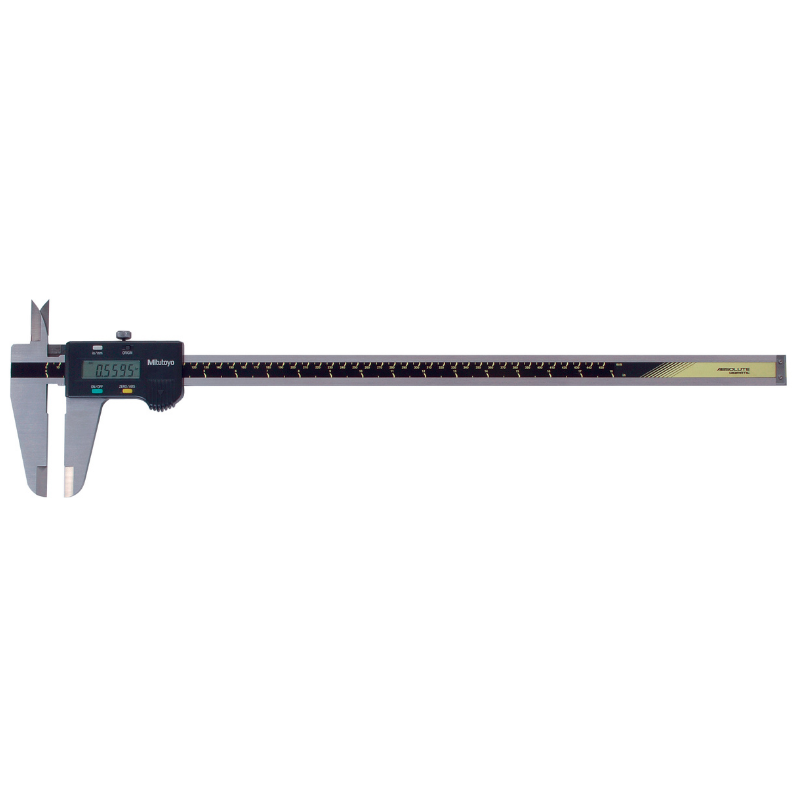

| 0 - 18" / 0 - 450mm |
500-505-10 |
±.002” |
Without Thumb Roller |
| 0 - 24" / 0 - 600mm |
500-506-10 |
±.002” |
Without Thumb Roller |

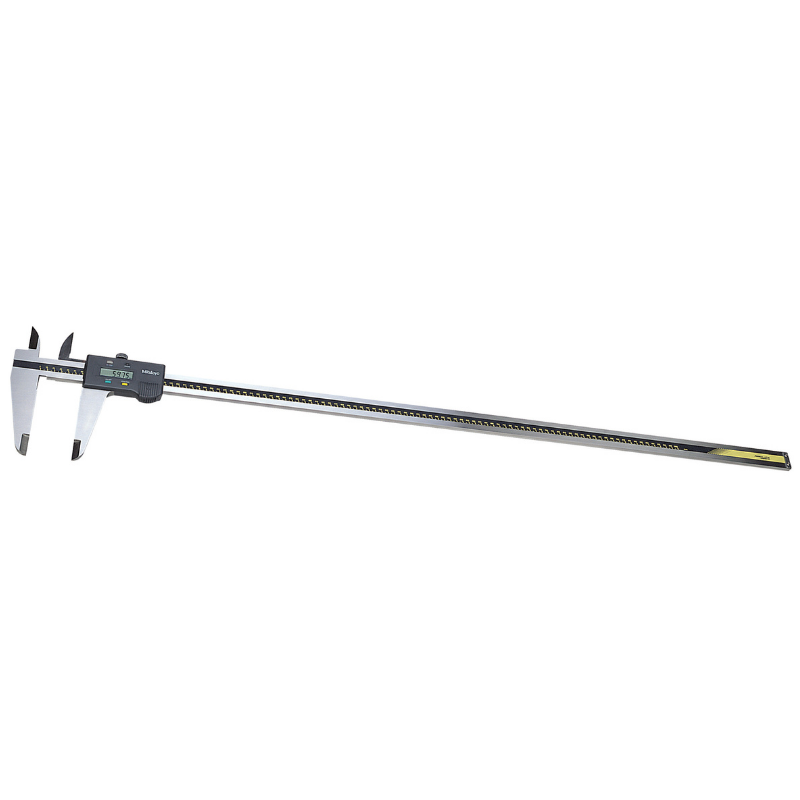

| 0 - 40" / 0 - 1000mm |
500-507-10 |
±.003” |
Without Thumb Roller |
Items Included
- Mitutoyo 500 Series Digimatic caliper (model specific)
- SR44 battery
- Protective case
- Certificate of inspection
- Manufacturer documentation
