Mitutoyo 510-121 Indicating Snap Micrometer 25mm Catalog- 25 mm measuring range for external dimension checks
- Built-in dial indicator for quick comparative measurement
- Snap-action design enables fast, repeatable operation
- Ideal for production inspection and go/no-go checks
- Rigid frame minimizes deflection for consistent accuracy
- Precision-ground measuring anvils for reliable results

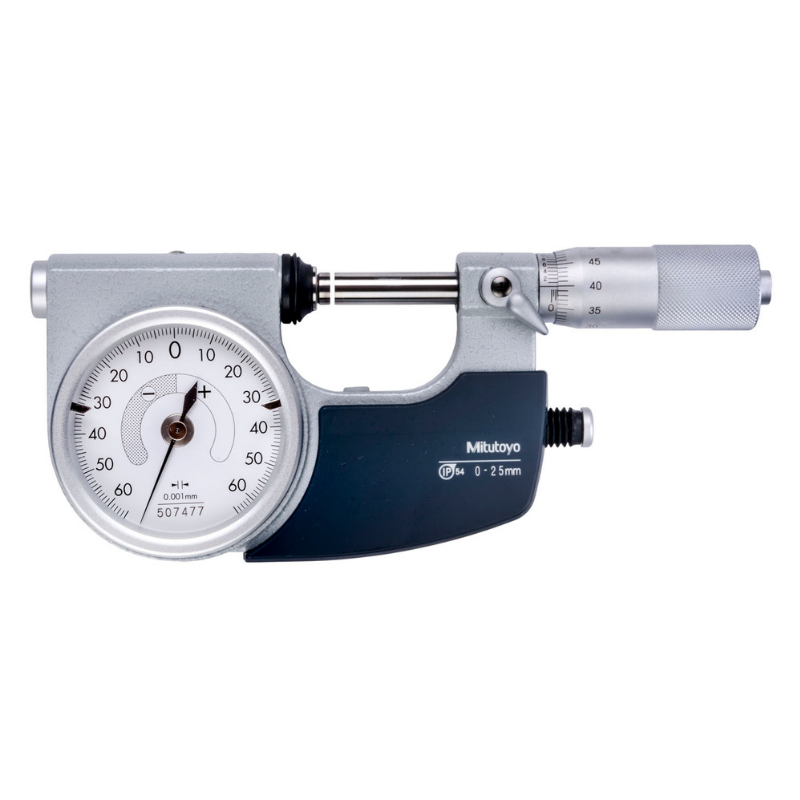

Mitutoyo 510-121 Indicating Snap Micrometer 25mm
by Mitutoyo
$1,100.00
Mitutoyo 510-121 Indicating Snap Micrometer 25mm
The Mitutoyo 510-121 Indicating Snap Micrometer is designed for fast, repeatable external measurements in high-volume production and inspection environments. Featuring a 25 mm measuring capacity, this snap micrometer allows rapid part checking without sacrificing accuracy. The built-in dial indicator provides immediate visual feedback, making it ideal for go/no-go comparisons and tolerance checks. Its rigid frame and precision anvils ensure consistent performance, while the ergonomic snap action supports efficient one-handed operation on the shop floor.
Key Features
- 25 mm measuring range for external dimension checks
- Built-in dial indicator for quick comparative measurement
- Snap-action design enables fast, repeatable operation
- Ideal for production inspection and go/no-go checks
- Rigid frame minimizes deflection for consistent accuracy
- Precision-ground measuring anvils for reliable results
Specifications
| Product type | Indicating snap micrometer |
| Model | 510-121 |
| Measuring range | 0–25 mm |
| Graduation | 0.001 mm |
| Accuracy | ±0.003 mm |
| Indicator type | Dial indicator |
| Measuring force | Constant (spring-loaded) |
| Frame material | Hardened steel |
Items Included
- Mitutoyo 510-121 Indicating Snap Micrometer
- Manufacturer documentation
