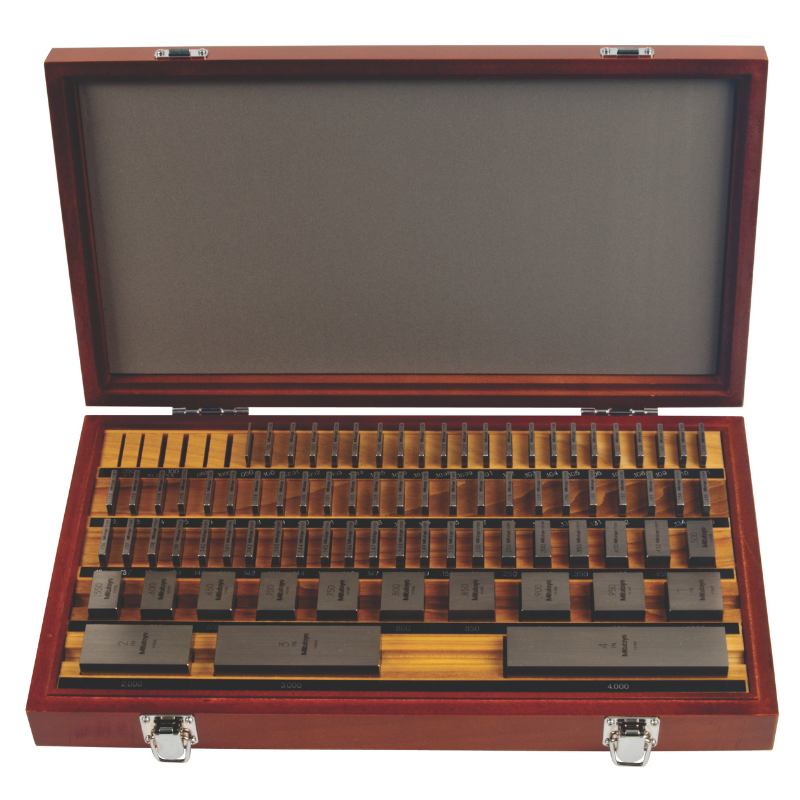

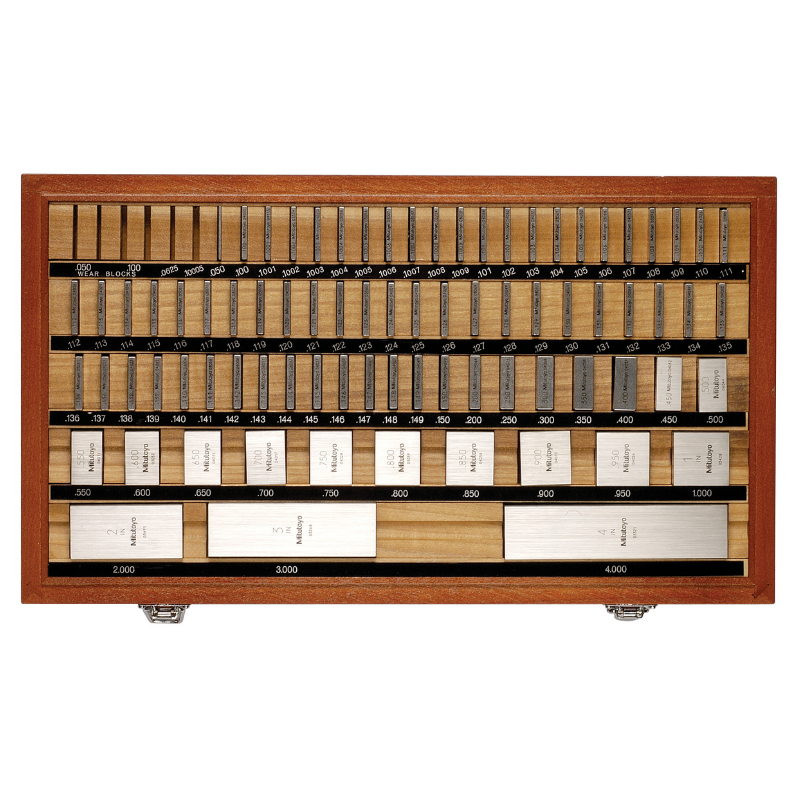

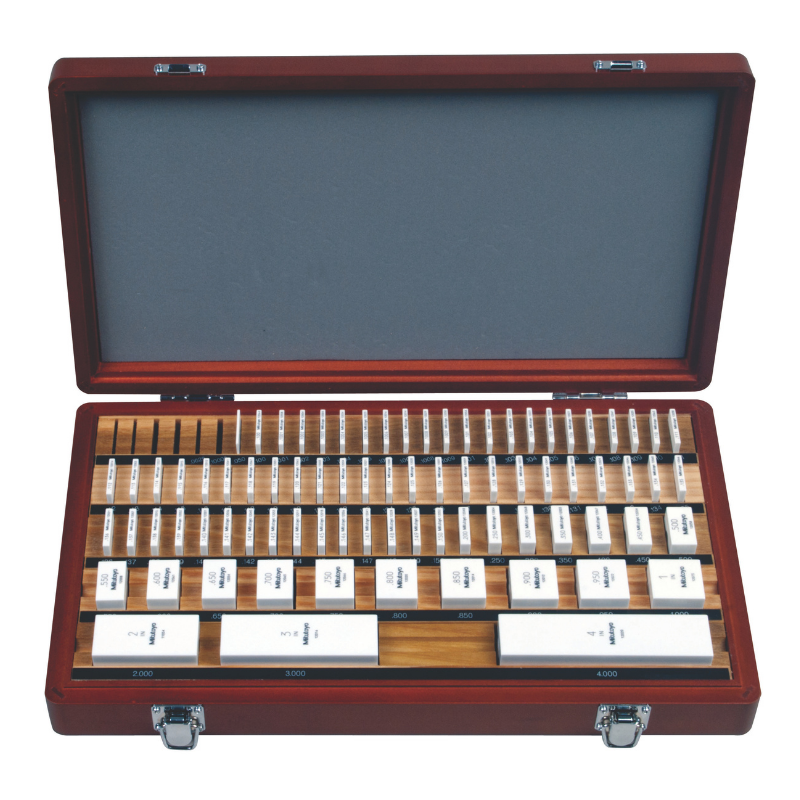

The Mitutoyo 516 Series Inch Square Gage Block Sets are precision-manufactured square gage blocks designed for accurate length measurement, setup, and calibration applications. Featuring square cross-sections for increased stability and ease of handling, these sets are available in Steel or CERA ceramic and multiple block counts to suit shop-floor inspection, quality control, and metrology lab environments. Exceptional wringability and strict grade tolerances ensure reliable performance and repeatable results.
| Blocks Per Set | SKU Number | Grade | Blocks Included In Set | |||
| Steel | CERA | Size | Step | Quantity | ||
| 81 | 516-401-26 | 516-201-26 | 0 | .1001 - .1009 | 0.0001 | 9 |
| 516-402-26 | 516-202-26 | 0 | .101 - .149 | 0.001 | 49 | |
| 516-403-26 | 516-203-26 | AS-1 | .05 - .95 | 0.05 | 19 | |
| 516-404-26 | 516-204-26 | AS-2 | 1 - 4 | 1 | 4 | |
| 36 | 516-421-26 | 516-221-26 | 00 | .05” | 1 | |
| 516-422-26 | 516-222-26 | 1 | .1001 - .1009 | 0.0001 | 10 | |
| 516-423-26 | 516-223-26 | AS-0 | .101 - .109 | 0.001 | 9 | |
| 516-424-26 | 516-224-26 | AS-1 | .11 - .19 | 0.01 | 9 | |
| .1 - .5 | 0.1 | 5 | ||||
| 1, 2, 4 | 1 | 3 | ||||
| 28 | 516-417-26 | - | 00 | .02005” | 1 | |
| 516-418-26 | - | 0 | .0201 - .0209” | 0.0001 | 9 | |
| 516-419-26 | - | AS-0 | .021 - .029” | 0.001 | 9 | |
| 516-420-26 | - | AS-1 | .021 - .029” | 0.01 | 9 | |
| .10 - .090” | ||||||
| Inch Long Block Set | ||||||
| Blocks Per Set | SKU | Grade | Blocks Included In Set | |||
| Steel | CERA | Size | Step | Quantity | ||
| 8 | 516-762-26 | 0 | 5 - 7 | 1 | 3 | |
| 516-763-26 | AS-1 | 8, 10, 12 | 2 | 3 | ||
| 16, 20 | 4 | 2 | ||||
