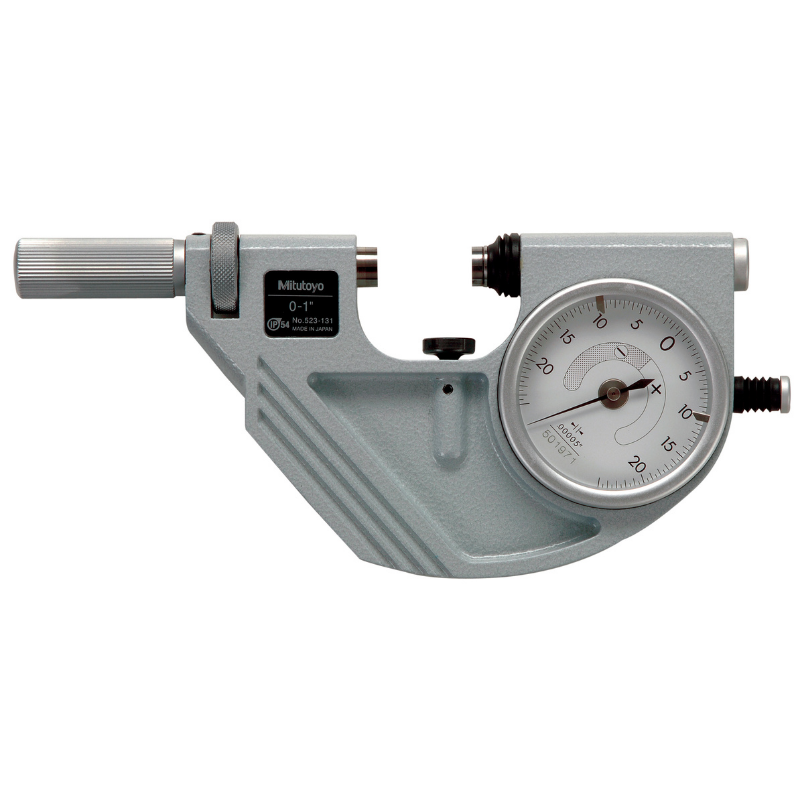

Mitutoyo 523-131 Dial Snap Meter 1"

Mitutoyo 523 Series Dial Snap Meter

by Mitutoyo
Have a question?

Call/Text Gustavo before you buy.

I personally review every order and I'm happy to answer questions about compatibility, specs, or lead times. Don't guess - let's get it right the first time.

617-398-7852 support@precisionengineeringsupply.com
Gustavo
Founder, Precision Engineering Supply
Available Mon – Fri
Authorized Dealer
100% Authentic Products
Fast Shipping
Most Products Ship Same day
Easy Returns
30-Day Return Policy (Excludes Made To Order Items)
Secure Checkout
SSL Encrypted Payment
$1,080.00
  • Fast, repeatable OD measurements
  • High-contrast dial
  • Rigid frame
  • Constant measuring force
  • Ideal for shafts, pins, and cylindrical components
Customers rate us 4.5/5 based on 49 reviews.

Mitutoyo 523 Series Dial Snap Meter

$1,080.00

Description

Mitutoyo 523 Series Dial Snap Meter

The Mitutoyo 523 Series Dial Snap Meter is engineered for fast, repeatable comparison measurements in high-volume production environments. Designed for external diameter inspection, these snap meters provide excellent stability and accuracy with a clear, easy-to-read dial indicator. Ideal for go/no-go and comparative checks, the 523 Series delivers consistent results for shafts, pins, and cylindrical components in both metric and inch applications.



Key Features

  • Designed for rapid comparative OD measurements
  • High-resolution dial indicator for precise readings
  • Rigid frame ensures excellent repeatability and stability
  • Constant measuring force for consistent results
  • Ideal for in-process and final inspection
  • Available in metric and inch measuring ranges



Specifications

Inch
Range Graduation SKU Indicating Range
0 - 1" .00005" 523-131 ±.0023"
1 - 2" .00005" 523-132 ±.0023"
2 - 3" .00005" 523-133 ±.0023"
3 - 4" .00005" 523-134 ±.0023"



Metric
Range Graduation SKU Indicating Range
0 - 25mm 0.001mm 523-121 ±0.060mm
25 - 50mm 0.001mm 523-122 ±0.060mm
50 - 75mm 0.001mm 523-123 ±0.060mm
75 - 100mm 0.001mm 523-124 ±0.060mm



Items Included

  • Mitutoyo 523 Series Dial Snap Meter (model specific)
  • Protective storage case
  • Inspection certificate
  • Manufacturer documentation
