Mitutoyo 568 Series Borematic 3 Head Set SPC
by Mitutoyo
$2,820.00
Mitutoyo 568 Series Borematic 3 Head Set SPC

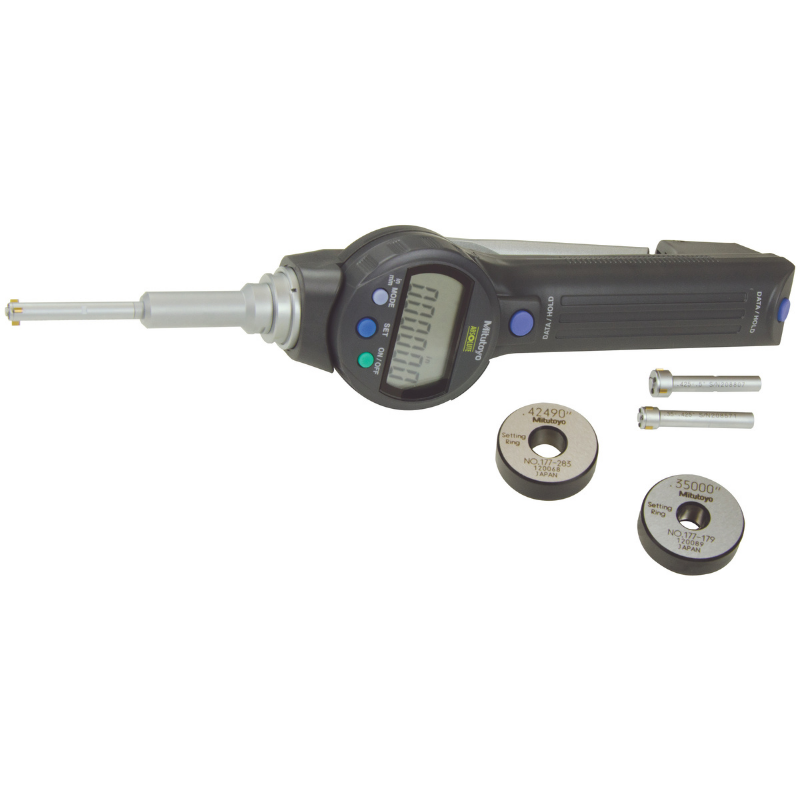

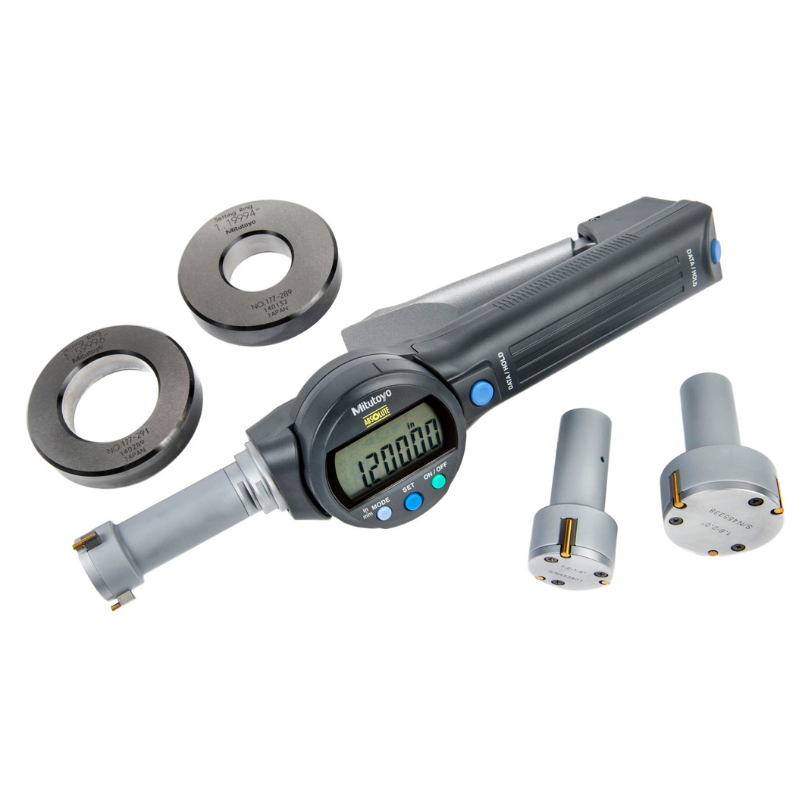

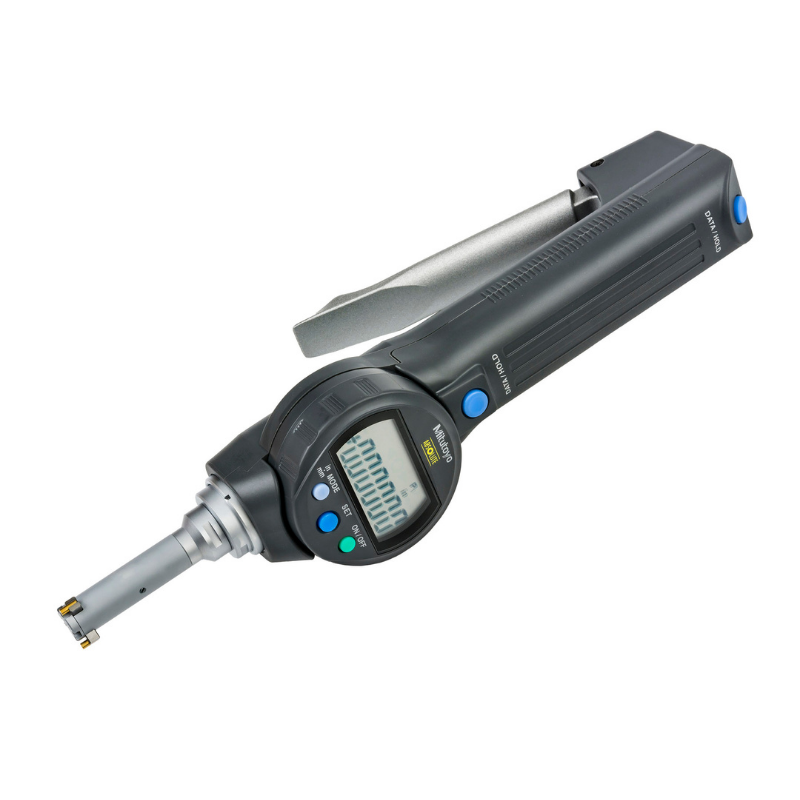

The Mitutoyo 568 Series Borematic 3-Head Set provides fast, accurate internal diameter measurement for production and quality control applications. This complete set includes three interchangeable measuring heads (models 928, 929, and 930) to cover a wide range of bore sizes with a single digital display unit. Featuring Mitutoyo’s ABS Digimatic system, the Borematic delivers instant readings without origin reset, while SPC output enables seamless data transfer for statistical process control. The self-centering 3-point measuring system ensures stable, repeatable results, making it ideal for high-volume inspection environments.
Key Features
- 3-head Borematic set covers multiple internal diameter ranges
- Self-centering 3-point contact ensures accurate bore measurement
- ABS Digimatic system eliminates origin reset
- SPC output supports efficient data collection and QC reporting
- Large, easy-to-read digital display
- Ideal for production inspection and in-process measurement
Specifications
| Specification | Model 928 | Model 929 | Model 930 |
| Measuring range | 0.275–0.400 in (7–10 mm) | 0.400–0.550 in (10–14 mm) | 0.550–0.750 in (14–18 mm) |
| Resolution | 0.00005 in / 0.001 mm | 0.00005 in / 0.001 mm | 0.00005 in / 0.001 mm |
| Accuracy | ±0.00012 in (±0.003 mm) | ±0.00012 in (±0.003 mm) | ±0.00012 in (±0.003 mm) |
| Measuring system | 3-point contact | 3-point contact | 3-point contact |
| Readout | Digimatic (ABS) | Digimatic (ABS) | Digimatic (ABS) |
| Data output | SPC | SPC | SPC |
Items Included
- Digimatic Borematic display unit
- Measuring head
- SR44 battery
- Manufacturer documentation
