Mitutoyo 571-215-10 24" Digimatic Depth Gage SPC Catalog- Extended 24-inch measuring range for deep features
- ABS Digimatic system eliminates origin reset
- Large digital display for easy readability
- Rigid base and beam for stable, accurate measurements
- Smooth slider movement for controlled measurement
- SPC output for data collection and quality monitoring
Mitutoyo 571-215-10 24" Digimatic Depth Gage SPC
by Mitutoyo
$1,130.00

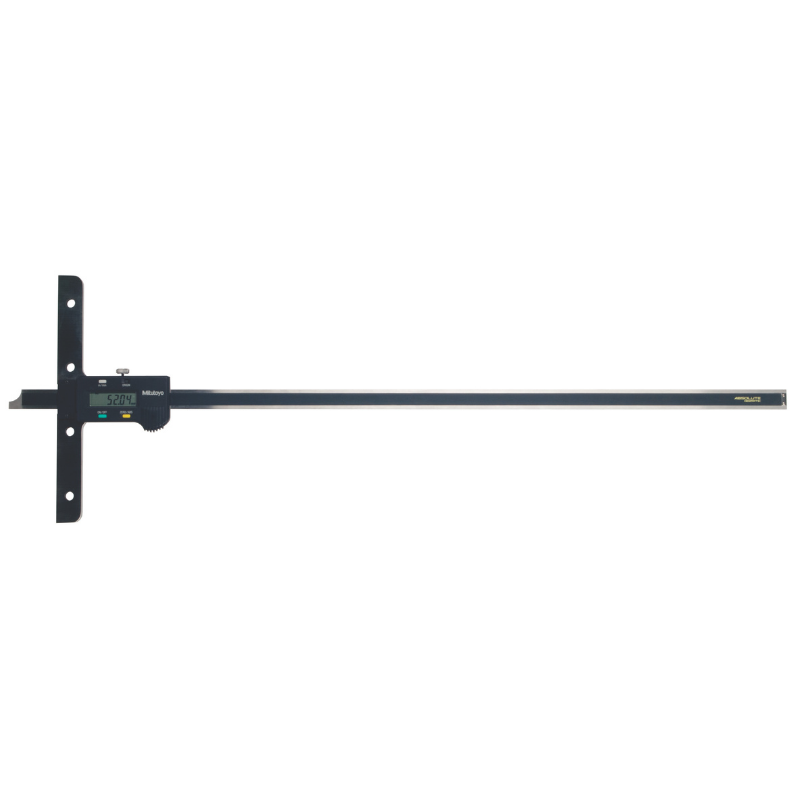

Mitutoyo 571-215-10 24" Digimatic Depth Gage SPC
The Mitutoyo 571-215-10 Digimatic Depth Gage is designed for accurate depth measurement of holes, slots, steps, and recesses in machining and inspection applications. With a 24-inch measuring range, this depth gage is ideal for large or deep features where precision is critical. The ABS Digimatic system provides fast, reliable readings without requiring origin reset, while the integrated SPC output allows seamless data collection for quality control and statistical process monitoring. Built to Mitutoyo’s exacting standards, this depth gage delivers consistent, repeatable results in demanding industrial environments.
Key Features
- Extended 24-inch measuring range for deep features
- ABS Digimatic system eliminates origin reset
- Large digital display for easy readability
- Rigid base and beam for stable, accurate measurements
- Smooth slider movement for controlled measurement
- SPC output for data collection and quality monitoring
Specifications
| Model | 571-215-10 |
| Measurement range | 0–24 in / 0–600 mm |
| Resolution | 0.0005 in / 0.01 mm |
| Accuracy | ±0.002 in (±0.05 mm) |
| Measuring system | ABS Digimatic |
| Data output | SPC (Digimatic) |
| Base type | Flat reference base |
Items Included
- Mitutoyo 571-215-10 Digimatic Depth Gage
- SR44 battery
- Manufacturer documentation
