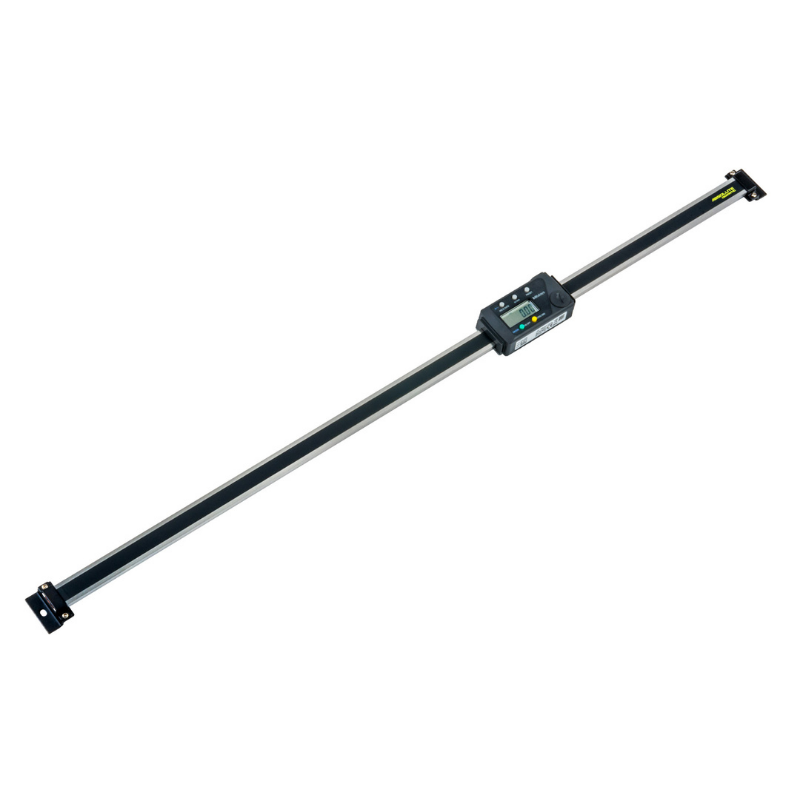

Mitutoyo 572-475 Digimatic Scale Unit/Multi-Function (Horizontal Type) 24"

Mitutoyo 572 Series Digimatic Linear Scale (Horizontal Type)

Name: Mitutoyo 572 Series Digimatic Linear Scale (Horizontal Type)
Brand: Mitutoyo
SKU: 572-475
Price: 1090.0 USD
Availability: InStock

by Mitutoyo

Have a question?

Call/Text Gustavo before you buy.

I personally review every order and I'm happy to answer questions about compatibility, specs, or lead times. Don't guess - let's get it right the first time.

Call / Text 617-398-7852 Email support@precisionengineeringsupply.com

Gustavo

Founder, Precision Engineering Supply

Available Mon – Fri

Authorized Dealer

100% Authentic Products

Fast Shipping

Most Products Ship Same Day

Easy Returns

30-Day Return Policy (Excludes Made To Order Items)

Secure Checkout

SSL Encrypted Payment

$1,090.00

Quantity

Horizontal Digimatic scale
Multi-function design
Supports metric and inch/metric
Compact profile
Stable accuracy

Mitutoyo 572 Series Digimatic Linear Scale (Horizontal Type)

$1,090.00

Description

Mitutoyo 572 Series Digimatic Linear Scale (Horizontal Type)

The Mitutoyo 572 Series Digimatic Scale Unit (Horizontal Type) is a versatile linear measurement solution designed for precision positioning, displacement measurement, and custom inspection systems. Featuring a compact horizontal form factor and Mitutoyo’s proven Digimatic technology, these scale units deliver reliable accuracy across a wide range of measuring lengths. Ideal for fixtures, machines, and automation applications, the 572 Series supports both metric and inch/metric measurement, providing consistent performance in industrial environments.

Key Features

Horizontal-type Digimatic scale for linear measurement
Multi-function capability for positioning and inspection tasks
Compact, low-profile design for easy system integration
Supports metric and inch/metric measurement
Stable accuracy across extended measuring ranges
Ideal for fixtures, automation, and custom gaging systems

Specifications

SKU	Metric		Inch/Metric		Dimensions
	Range	Accuracy	Range	Accuracy	L1/L2	t/G/H	Mass (Grams)
572-470	0-100mm	0.03mm	0-4"	0.03mm/.001"	244mm/220mm	-	250
572-471	0-150mm	0.03mm	0-6"	0.03mm/.001"	294mm/270mm		280
572-472	0-200mm	0.03mm	0-8"	0.03mm/.001"	344mm/320mm		310
572-473	0-300mm	0.04mm	0-12"	0.04mm/.002"	444mm/420mm		370
572-474	0-450mm	0.04mm	0-18"	0.04mm/.002"	594mm/570mm	6mm/23.2mm/14.6mm	760
572-475	0-600mm	0.05mm	0-24"	0.05mm/.002"	774mm/750mm	6mm/23.2mm/14.6mm	900
572-476	0-800mm	0.06mm	0-32"	0.06mm/.0025"	974mm/950mm	10mm/27.2mm/18.6mm	1710
572-477	0-1000mm	0.07mm	0-40"	0.07mm/.0025"	1174mm/1150mm	10mm/27.2mm/18.6mm	2040

Items Included

Mitutoyo 572 Series Digimatic Scale Unit (model specific)
Mounting hardware
Manufacturer documentation
Inspection certificate
