Mitutoyo 573-746-20 6" Digimatic Caliper Catalog- Point-jaw design for narrow grooves and recessed measurements
- IP67-rated protection against dust, water, and coolant
- ABS Digimatic system eliminates the need for origin resetting
- High-contrast digital display for easy readability
- Smooth slider movement for precise measurement control
- SPC output for direct data transfer and quality tracking
Mitutoyo 573-746-20 6" Digimatic Caliper
by Mitutoyo
$1,140.00

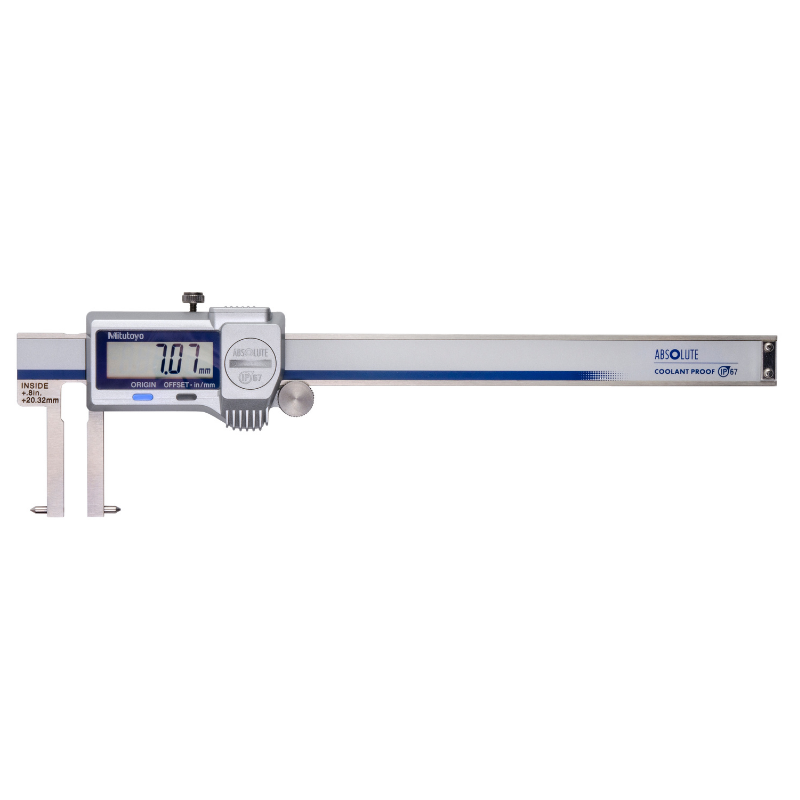

Mitutoyo 573-746-20 6" Digimatic Caliper, Point-Jaw, SPC IP67
The Mitutoyo 573-746-20 Digimatic Caliper is a high-precision digital caliper engineered for accurate measurements in demanding shop-floor and inspection environments. Designed with point-jaw measuring faces, this caliper is ideal for measuring small grooves, narrow slots, and recessed features where standard jaws cannot reach. The IP67-rated construction protects against dust, coolant, and temporary immersion, while the ABS Digimatic system delivers fast, reliable readings without requiring origin reset. Integrated SPC output allows seamless data transfer for quality control and statistical process monitoring.
Key Features
- Point-jaw design for narrow grooves and recessed measurements
- IP67-rated protection against dust, water, and coolant
- ABS Digimatic system eliminates the need for origin resetting
- High-contrast digital display for easy readability
- Smooth slider movement for precise measurement control
- SPC output for direct data transfer and quality tracking
Specifications
| Product type | Digital caliper |
| Model | 573-746-20 |
| Measurement range | 0–6 in / 0–150 mm |
| Resolution | 0.0005 in / 0.01 mm |
| Accuracy | ±0.001 in (±0.02 mm) |
| Jaw type | Point-jaw |
| Protection rating | IP67 |
| Data output | SPC (Digimatic) |
Items Included
- Mitutoyo 573-746-20 Digimatic Caliper
- SR44 battery
- Manufacturer documentation
