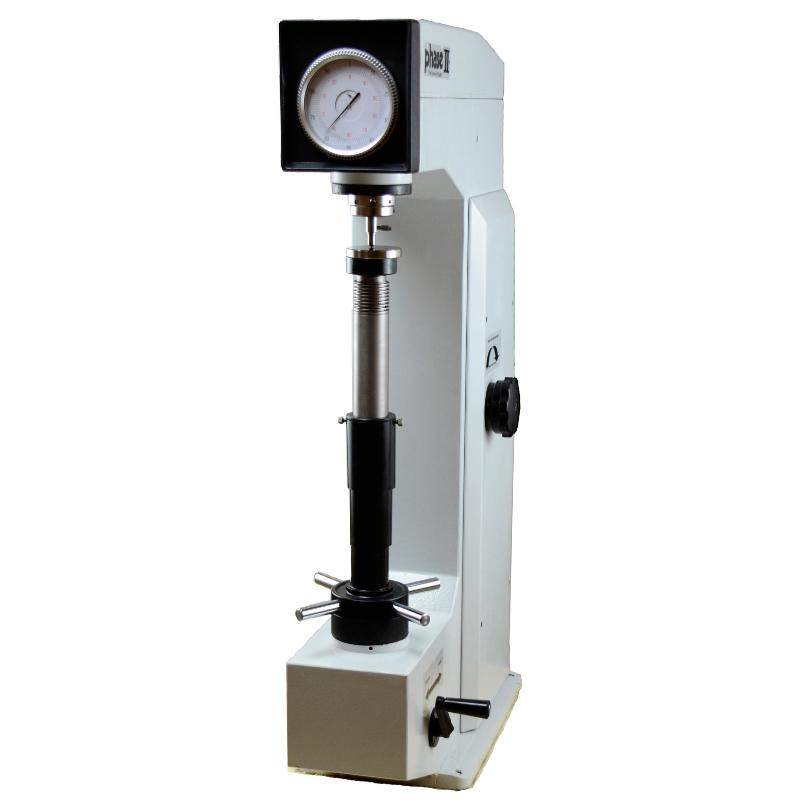

Phase2+ 900-332 Tall Frame Rockwell Hardness Tester

Phase2+ 900-332 Tall Frame Rockwell Hardness Tester

The Phase2+ 900-332 and 900-332D are tall frame Rockwell hardness testers engineered specifically for large part applications that exceed the capacity of standard benchtop models. Both instruments combine state-of-the-art design with dynamic precision and are easy to operate, yet engineered to obtain highly sensitive and accurate readings.

The defining feature of the 900-332 platform is its 15¾" test height for extremely large parts which is more than double the vertical capacity of the standard 900-331 frame. This makes it the ideal choice for shops and labs that routinely test large castings, forgings, structural components, shafts, rolls, and other oversized workpieces that simply won't fit under a conventional Rockwell tester.

The 900-332 delivers results via a direct analog dial gauge preferred by operators who value battery-free operation and real-time tactile feedback. The 900-332D pairs the same proven tall frame platform with the 9500 Series digital indicator upgrade, providing direct digital readings and automatic conversions to Brinell or Vickers eliminating manual conversion charts and supporting faster, cleaner documentation.

Utilizing the guidelines of ASTM E-18, both models offer unmatched repeatability across all standard Rockwell hardness scales and are perfect, rugged performers suited for heat treat facilities, tool rooms, workshops, laboratories, and inspection labs. Lifetime technical support is included with every Phase2+ hardness tester.

Key Features

• 15¾" Vertical Capacity for Large Part Testing - The tall frame design provides over double the vertical clearance of standard Rockwell testers, accommodating large castings, forgings, structural components, rolls, shafts, and other oversized workpieces that would otherwise be untestable on a conventional benchtop unit.
• Two Display Options, One Proven Platform - Choose the 900-332 with a direct analog dial gauge for battery-free simplicity and real-time feedback, or the 900-332D with a digital LCD display and automatic conversion to Brinell (HB) and Vickers (HV) - both built on the same ASTM E-18 compliant tall frame platform.
• Full Rockwell Scale Coverage - ASTM E-18 Compliant - Tests all standard Rockwell hardness scales including HRA, HRBW, HRC, HRD, HRE, HRF, HRG, and more, delivering consistent and repeatable results across a broad range of metals and alloys.
• Dead Weight Loading with Hydraulic Dashpot Control - Dead weight force application at 60, 100, and 150 kgf major loads combined with a hydraulic dashpot control system ensures smooth, precise, and repeatable indentation force on every test cycle - eliminating the variability associated with spring or motorized systems.
• Built Tough for Any Production Environment - Heavy-duty tall frame construction withstands the rigors of heat treat facilities, QC labs, tool rooms, and shop floors without any compromise in measurement accuracy or long-term durability.
• Lifetime Technical Support Included - Every Phase2+ 900-332 and 900-332D ships with lifetime technical support, a full complement of anvils and indenters, and NIST-traceable test blocks - everything needed to be fully operational and ASTM compliant from day one.

Specifications

Items Included

• Hardness Tester Main Unit
• C-Scale Diamond Indentor
• 1/16" Ball Indentor
• 3 HRC Test Blocks
• 1 HRB Test Block
• Test Table 5.87" (150 mm)
• Flat Anvil 2.5" (63 mm)
• Standard Vee Anvil
• Accessory Case
