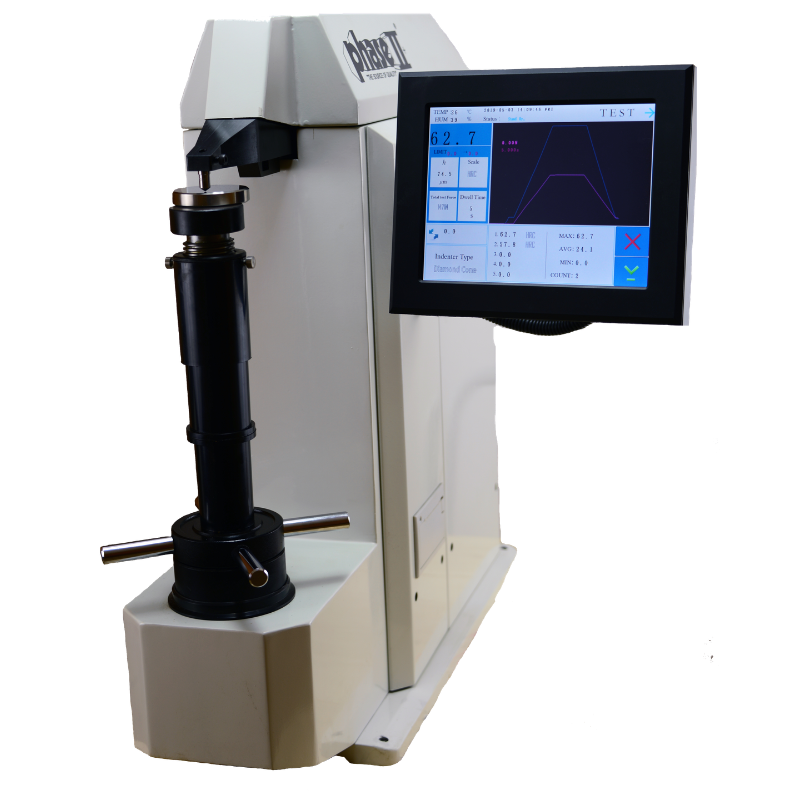

Phase2+ 900-367 Load Cell Rockwell Hardness Tester

Phase2+ 900-367 Load Cell Rockwell Hardness Tester

by Phase2+
Have a question?

Call/Text Gustavo before you buy.

I personally review every order and I'm happy to answer questions about compatibility, specs, or lead times. Don't guess - let's get it right the first time.

Call / Text 617-398-7852 Email support@precisionengineeringsupply.com
Gustavo
Founder, Precision Engineering Supply
Available Mon – Fri
Authorized Dealer
100% Authentic Products
Fast Shipping
Most Products Ship Same Day
Easy Returns
30-Day Return Policy (Excludes Made To Order Items)
Secure Checkout
SSL Encrypted Payment
$9,855.88
  • Closed-Loop Load Cell Replaces Dead Weight System
  • Fully Automated One-Touch Test Cycle
  • Touch Screen with Programmable Settings & Statistics
  • High Resolution 0.01 HR Readout
  • Full Rockwell Scale Coverage with Auto Multi-Scale Conversion
  • Generous Vertical Capacity with ASTM E-18 Compliance
Customers rate us 4.5/5 based on 49 reviews.

Phase2+ 900-367 Load Cell Rockwell Hardness Tester

$9,855.88

Description

Phase2+ 900-367 Load Cell Rockwell Hardness Tester

The Phase2+ 900-367 represents a significant step forward from conventional dead weight Rockwell hardness testers, replacing mechanical weight stacks with a direct-loading closed-loop load cell system that delivers higher speed, greater accuracy, and fully automated operation from a single touch. This digital Rockwell hardness tester with fully automated load/unload procedures affords highly sensitive and accurate readings, with a micro computer-controlled touch screen and USB output to PC.

The 900-367 offers programmable scale conversions, dwell times, statistical capabilities, and a test counter, and is capable of testing in all standard Rockwell hardness scales. Where it sets itself apart from digitally upgraded analog testers is in its force application method: the direct loading method with load cell eliminates the typical dead weight system, enabling a high-speed test cycle with extremely accurate loading control removing the friction, vibration sensitivity, and mechanical variability inherent to dead weight designs.

Compatible with all standard Rockwell hardness scales including HRA, HRBW, HRC, HRE, and HRF, the 900-367 also provides automatic conversions to HB, HV, and Superficial Rockwell scales all selectable from the touch screen interface. Upper and lower limit settings support GO/NO GO pass-fail inspection workflows, while the built-in statistical functions allow operators to track and analyze test data over time directly on the instrument. Conforms to ASTM E-18 and includes NIST-traceable test blocks.



Key Features

  • Closed-Loop Load Cell Replaces Dead Weight System - The direct loading method uses a closed-loop load cell and motorized drive instead of mechanical dead weights, eliminating friction errors, vibration sensitivity, and load variability for faster, more repeatable, and more accurate Rockwell hardness testing across all major loads.
  • Fully Automated One-Touch Test Cycle - The entire Rockwell test cycle, preliminary load, major load application, dwell, unload, and result display is performed automatically with a single touch, removing operator-induced variability and enabling consistent results across high-volume inspection runs.
  • Touch Screen with Programmable Settings & Statistics - A microcomputer-controlled hi-def LCD touch screen provides programmable dwell times, scale conversions, upper/lower limit (GO/NO GO) settings, test counter, and built-in statistical analysis (average, min/max, standard deviation) with USB output for direct data transfer to a PC.
  • Full Rockwell Scale Coverage with Auto Multi-Scale Conversion - Tests all standard Rockwell hardness scales including HRA, HRBW, HRC, HRD, HRE, HRF, and more per ASTM E-18, with automatic conversion to Brinell (HB), Vickers (HV), and all Superficial Rockwell scales selectable directly on the touch screen.
  • High Resolution 0.01 HR Readout - A digital resolution of 0.01 Rockwell units provides finer measurement discrimination than standard analog or basic digital Rockwell instruments, supporting more precise process monitoring and tighter quality control tolerances.
  • High Resolution 0.01 HR Readout - A digital resolution of 0.01 Rockwell units provides finer measurement discrimination than standard analog or basic digital Rockwell instruments, supporting more precise process monitoring and tighter quality control tolerances.



Specifications

Specification Details
Model 900-367
Test Force Application Load Cell Closed Loop
Test Force Control Motorized
Results Display Hi-Def LCD Digital Readout
Resolution 0.01 HR
Minor Load 10 kgf
Major Load 60 kgf, 100 kgf, 150 kgf
Rockwell Scales HRA, HRBW, HRC, HRD, HRE, HRF, and more
Auto Scale Conversions Brinell (HB), Vickers (HV), Superficial Rockwell
Upper/Lower Limit Settings Yes (GO/NO GO)
Statistical Functions Yes (programmable)
Dwell Time Programmable
Data Output USB to PC
Vertical Capacity 7.80 in.
Throat Depth 5.90 in.
Height 27.5 in. (700 mm)
Width 23.6 in. (600 mm)
Depth 9.84 in. (250 mm)
Weight 220 lbs. (100 kg)
Operating Temperature 50°F–95°F (10°C–35°C)
Power Supply Single Phase AC, 110–220V (manual select), 50–60 Hz, 4A
Standard Compliance ASTM E-18



ROCKWELL SCALE REFERENCE TABLE:
Scale Indentor Preliminary Force Total Force Typical Applications
A Spheroconical Diamond 10 kgf 60 kgf Cemented carbides, thin steel, shallow case hardened steel
B 1/16" Carbide Ball 10 kgf 100 kgf Copper alloys, soft steels, aluminum alloys, malleable iron
C Spheroconical Diamond 10 kgf 150 kgf Steel, hard cast irons, titanium, deep case hardened steel, materials harder than HRB 100
D Spheroconical Diamond 10 kgf 100 kgf Thin steel and medium case hardened steel, pearlitic malleable iron
E 1/8" Carbide Ball 10 kgf 100 kgf Cast iron, aluminum & magnesium alloys, bearing metals
F 1/16" Carbide Ball 10 kgf 60 kgf Annealed copper alloys, thin soft sheet metals
G 1/16" Carbide Ball 10 kgf 150 kgf Malleable irons, copper-nickel-zinc, cupronickel



Items Included

  • Phase2+ 900-367 Hardness Tester
  • C-Scale Diamond Indentor
  • 1/16" Ball Indentor
  • 3 HRC Test Blocks
  • 1 HRB Test Block
  • 1 HRA Test Block
  • Test Table 5.87" (150 mm)
  • Flat Anvil 2.5" (63 mm)
  • Standard Vee Anvil
  • Accessory Case
  • Dust Cover
