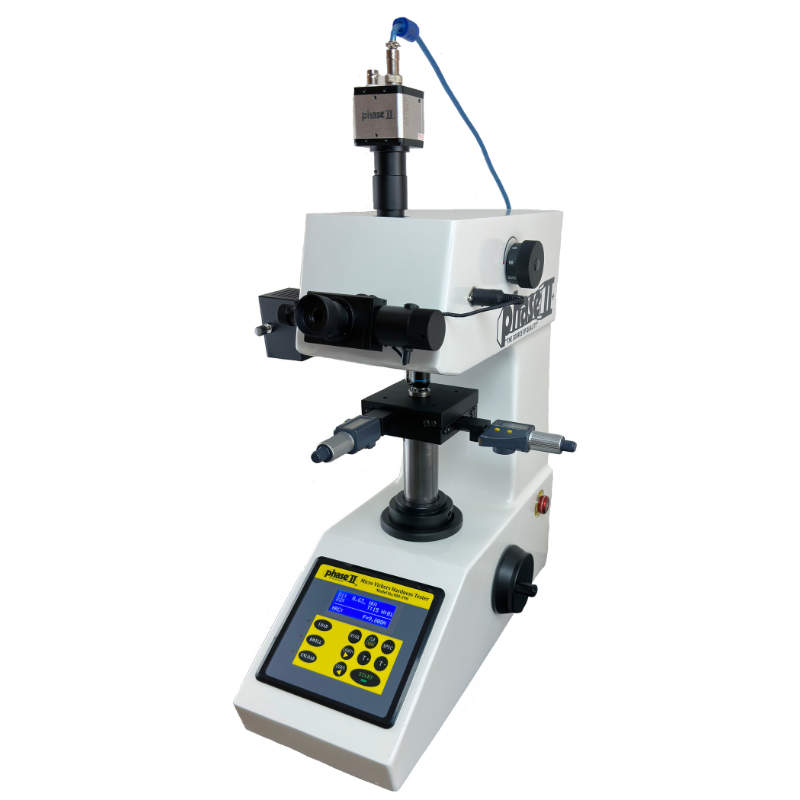

Phase2+ 900-390 Micro Vickers Hardness Tester
The Phase2+ 900-390 is an advanced micro Vickers hardness tester designed for precision hardness analysis where standard Rockwell and Brinell methods cannot provide the resolution or indentation control required. These versatile and user-friendly systems are designed for the accurate hardness testing of small precision parts, thin materials, coatings, wires, and case depth determinations making the 900-390 series the instrument of choice for metallography laboratories, heat treat quality control, failure analysis, and production inspection environments that demand microhardness-level precision.

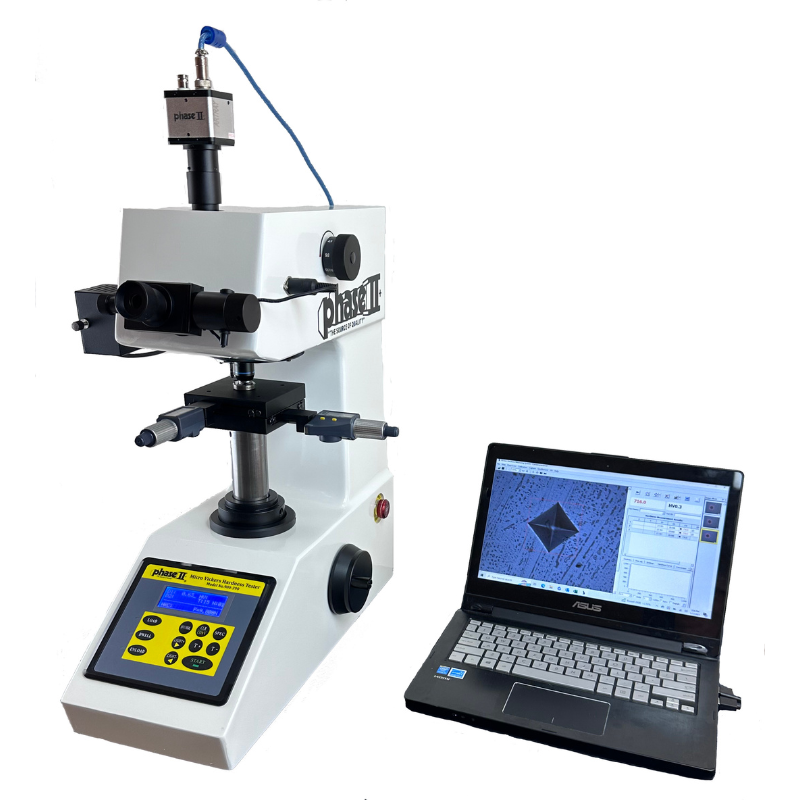

The 900-390 series includes a video camera, adapter, USB output cable, and a choice of two variants of measurement software, giving users the capabilities of machines that cost thousands more. The 900-390A includes manual measurement software, allowing diagonal indentation measurements to be taken by mouse click on the PC display. The 900-390B upgrades to automatic edge detection software, where the system identifies and measures the Vickers indentation diagonals automatically for faster, more consistent throughput and the 900-390A can be upgraded to 900-390B software at any time.
All information including diagonal line lengths of the indentation, hardness values, data statistics, and hardness conversions can be displayed on the LCD as well as a laptop or PC. Conforming to ASTM E-384/92 Vickers hardness tester standards, the 900-390 series offers unmatched repeatability across its full testing range of 1–2967 HV, and can also measure Knoop hardness after installing an optional Knoop indentor. A 5-year warranty and free lifetime technical support are included with every unit.
Key Features
-
1–2967 HV Testing Range with 8 Selectable Test Forces - Covers an exceptionally wide Vickers hardness range from 1 HV to 2967 HV across 8 selectable test forces (10g, 25g, 50g, 100g, 200g, 300g, 500g, and 1000g), enabling accurate microhardness testing of the softest coatings through the hardest carbides and ceramic materials.
-
Two Software Variants: Manual (900-390A) or Auto Edge Detection (900-390B) - Choose the 900-390A with manual measurement software for mouse-click diagonal measurement on screen, or the 900-390B with automatic edge detection software that identifies and measures Vickers indentation diagonals without operator input with a seamless upgrade path from A to B available at any time.
-
Video Camera, Adapter & Software Included as Standard - Every 900-390 ships complete with a digital video camera, camera adapter tube, USB output cable, and PC measurement software delivering imaging and analysis capabilities typically found only on instruments costing significantly more.
-
Dual Vickers & Knoop Hardness Testing - Designed to test in both Vickers (HV) and Knoop (HK) hardness scales, the 900-390 supports a broad range of microhardness testing standards with the optional Knoop indentor, making it suitable for thin coatings, brittle materials, and elongated surface features where the Vickers method is not ideal.
-
100× & 400× Microscope with Cold Light Source & Hand Turret - Dual magnification objectives (100× and 400×) mounted on a precision hand turret provide clear indentation imaging across the full test force range, with a long-life cold light source (rated approximately 100,000 hours) ensuring consistent illumination for accurate diagonal measurement without lamp replacement downtime.
-
Precision XY Stage with Micrometer & ASTM E-384 Compliance - A 100 × 100 mm XY table with 25 × 25 mm movement range and micrometer adjustment positions specimens precisely for multi-point testing, case depth traverses, and coating analysis, all conforming to ASTM E-384/92 for traceable microhardness results. 5-year warranty and lifetime technical support included.
Specifications
| Specification |
Details |
| Model |
900-390A (Manual Software) / 900-390B (Auto Software) |
| Test Method |
Vickers (HV) / Knoop (HK, optional indentor) |
| Testing Range |
1 HV – 2,967 HV |
| Test Forces |
10g, 25g, 50g, 100g, 200g, 300g, 500g, 1,000g |
| Carriage Control |
Automatic (load / hold / unload) |
| Microscope Magnification |
100× and 400× |
| Lens/Indentor Turret |
Hand Turret |
| Dwell Time |
5–60 seconds (selectable) |
| Min. Graduation Value of Testing Drum Wheel |
0.25 µm |
| XY Table Dimensions |
100 × 100 mm |
| XY Table Movement Range |
25 × 25 mm |
| Max Specimen Height |
70 mm |
| Max Distance — Indentor Center to Instrument Panel |
95 mm |
| Light Source |
Cold Light Source (approx. 100,000-hour life) |
| Power Supply |
110/220V, 50/60 Hz |
| Net Weight |
35 kg (77 lbs.) |
| Gross Weight |
41.5 kg (91.5 lbs.) |
| Package Dimensions |
425 × 245 × 490 mm |
| Standard Compliance |
ASTM E-384/92 |
| Warranty |
5 Years |
| Technical Support |
Lifetime |
Items Included
- Phase2+ 900-390 Base Machine
- X-Y Stage with Micrometer
- Video Camera with Adapter
- Measurement Software (Manual - 900-390A or Auto Edge Detection - 900-390B)
- USB Output Cable
- Mini Thin Part Holding Fixture
- Mini Drill Chuck Fixture
- Mini Vise Fixture
