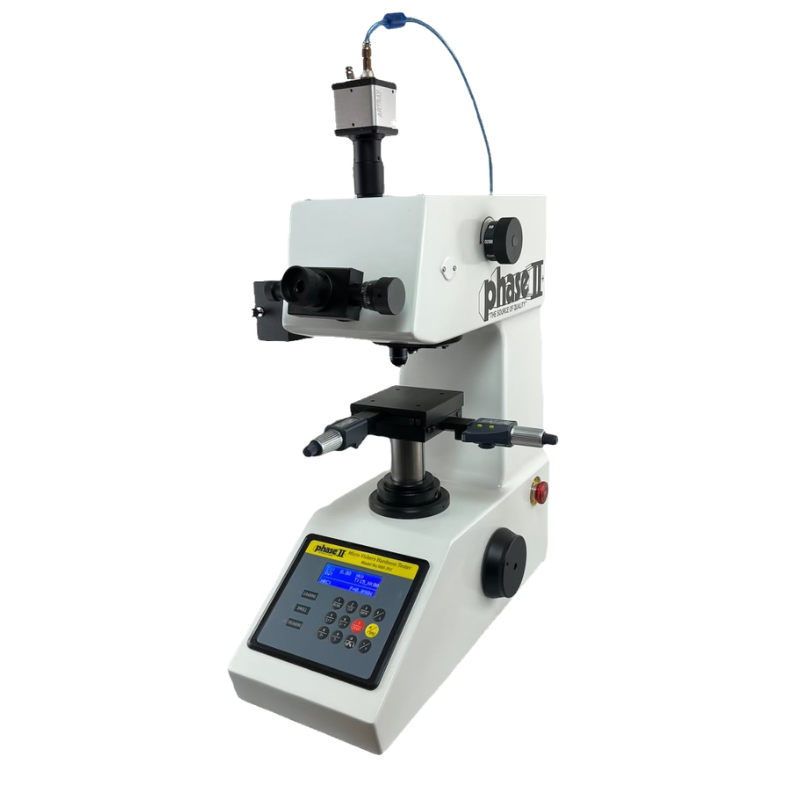

Phase2+ 900-391 Micro Vickers Hardness Tester
The Phase2+ 900-391 is the Auto-Turret upgrade to Phase2+'s proven micro Vickers hardness tester platform, offering everything found in the 900-390 series plus a built-in motorized turret that automates the transition between the indenting and viewing positions - eliminating a common source of operator error and improving workflow efficiency in both high-volume production and precision laboratory environments.
All 900-391 series models come with the automatic turret built directly into the machine. The auto-turret sensor prevents maloperation of the pressure turret during testing a critical safeguard that protects both the indentor and the objective lens from contact damage caused by inadvertent manual switching under load. The 900-391C and 900-391D models go further, giving operators the ability to control the turret directly through the software, enabling fully PC-driven test sequences from indentation through measurement without touching the instrument.
The 900-391 series includes Auto-Turret, video camera, adapter, USB output cable, and a choice of four variants of measurement software giving users the capabilities of machines that cost thousands more. Conforming to ASTM E-384/92 Vickers hardness tester standards, the 900-391 series offers unmatched repeatability across a testing range of 1–2967 HV, and can also measure Knoop hardness after installing an optional Knoop indentor. A 5-year warranty and free lifetime technical support are included with every model.
Key Features
-
Built-In Auto-Turret with Maloperation Protection - Every 900-391 model ships with a motorized Auto-Turret integrated into the instrument body, automatically switching between the Vickers indentor and the measurement objective with a built-in sensor that prevents accidental contact between the turret positions during the test cycle, protecting both the diamond indentor and the optical lens.
-
Four Software/Turret Control Variants in One Series - Choose from four configurations to match your workflow: 900-391A (manual measurement software), 900-391B (auto edge detection software), 900-391C (turret control + manual measurement software), or 900-391D (turret control + auto edge detection software) with all A, B, and C packages upgradeable to the D configuration at any time.
-
PC-Driven Turret Control (900-391C & 900-391D) - The 900-391C and 900-391D enable full software control of the Auto-Turret from a connected PC, allowing operators to execute complete indentation-to-measurement test sequences including turret switching, indentation imaging, diagonal measurement, and hardness calculation without physically operating the instrument.
-
1–2967 HV Range with 8 Selectable Test Forces - Covers a testing range from 1 HV to 2967 HV across eight test forces (10g, 25g, 50g, 100g, 200g, 300g, 500g, and 1000g) for accurate microhardness testing of thin coatings, case-hardened layers, wires, precision parts, and the hardest carbide and ceramic materials.
-
Video Camera, Adapter & Software Included as Standard - All diagonal length measurements, hardness values, data statistics, and hardness conversions are displayed simultaneously on the instrument LCD and on a connected PC, with USB output enabling export to Word or Excel formatted files for documentation and traceability.
-
Dual Vickers & Knoop Testing — ASTM E-384 Compliant - Designed to test in both Vickers (HV) and Knoop (HK) hardness scales with the optional Knoop indentor, the 900-391 conforms to ASTM E-384/92 and is suited for metallography labs, heat treat QC, failure analysis, weld inspection, coating analysis, and case depth determination across ferrous and non-ferrous metals.
Specifications
| Specification |
Details |
| Model Series |
900-391 (A, B, C, D) |
| Test Method |
Vickers (HV) / Knoop (HK, optional indentor) |
| Turret Type |
Built-In Auto-Turret (all variants) |
| Testing Range |
1 HV – 2,967 HV |
| Test Forces |
10g, 25g, 50g, 100g, 200g, 300g, 500g, 1,000g |
| Carriage Control |
Automatic (load / hold / unload) |
| Microscope Magnification |
100× and 400× |
| Dwell Time |
5–60 seconds (selectable) |
| Min. Graduation Value of Testing Drum Wheel |
0.25 µm |
| XY Table Dimensions |
100 × 100 mm |
| XY Table Movement Range |
25 × 25 mm |
| Max Specimen Height |
70 mm |
| Max Distance — Indentor Center to Instrument Panel |
95 mm |
| Light Source |
Cold Light Source (approx. 100,000-hour life) |
| Power Supply |
110/220V, 50/60 Hz |
| Net Weight |
35 kg (77 lbs.) |
| Gross Weight |
41.5 kg (91.5 lbs.) |
| Package Dimensions |
425 × 245 × 490 mm |
| Standard Compliance |
ASTM E-384/92 |
| Warranty |
5 Years |
| Technical Support |
Lifetime |
| Feature |
900-391A |
900-391B |
900-391C |
900-391D |
| Built-In Auto-Turret |
✓ |
✓ |
✓ |
✓ |
| Video Camera & Adapter |
✓ |
✓ |
✓ |
✓ |
| USB Output Cable |
✓ |
✓ |
✓ |
✓ |
| Measurement Software |
Manual (mouse-click) |
Auto edge detection |
Turret control + manual |
Turret control + auto edge detection |
| PC Turret Control |
— |
— |
✓ |
✓ |
| Upgrade Path |
Upgradeable to D |
Upgradeable to D |
Upgradeable to D |
— |
Items Included
- Phase2+ 900-391 Base Machine with Built-In Auto-Turret
- X-Y Stage with Micrometer
- Video Camera with Adapter
- Measurement Software (variant per model - A, B, C, or D)
- USB Output Cable
- Mini Thin Part Holding Fixture
- Mini Drill Chuck Fixture
- Mini Vise Fixture
