Phase2+ 900-415 Series Rockwell Hardness Tester
The Phase2+ 900-415 series brings closed-loop load cell technology and full touch screen automation to Rockwell hardness testing across three frame configurations, the standard 900-415, the Tall Boy 900-415TB, and the Extra Tall Boy 900-415XTB allowing buyers to match vertical capacity to their specific part sizes without sacrificing any features or performance.
Each model in this series features fully automated load/unload procedures for highly sensitive and accurate readings, a microcomputer-controlled touch screen with USB output to flash drive, and programmable scale conversions, dwell times, statistical capabilities, and a test counter all while remaining capable of testing in all standard Rockwell hardness scales.
The critical difference from conventional dead weight Rockwell testers is the force application method: the direct loading method uses a load cell instead of a dead weight system, enabling a high speed test cycle with extremely accurate loading control eliminating the friction, vibration sensitivity, and mechanical variability inherent to traditional designs. All three models automatically convert results to Brinell (HB), Vickers (HV), and Superficial Rockwell scales, with configurable upper/lower limit settings for pass/fail inspection workflows.

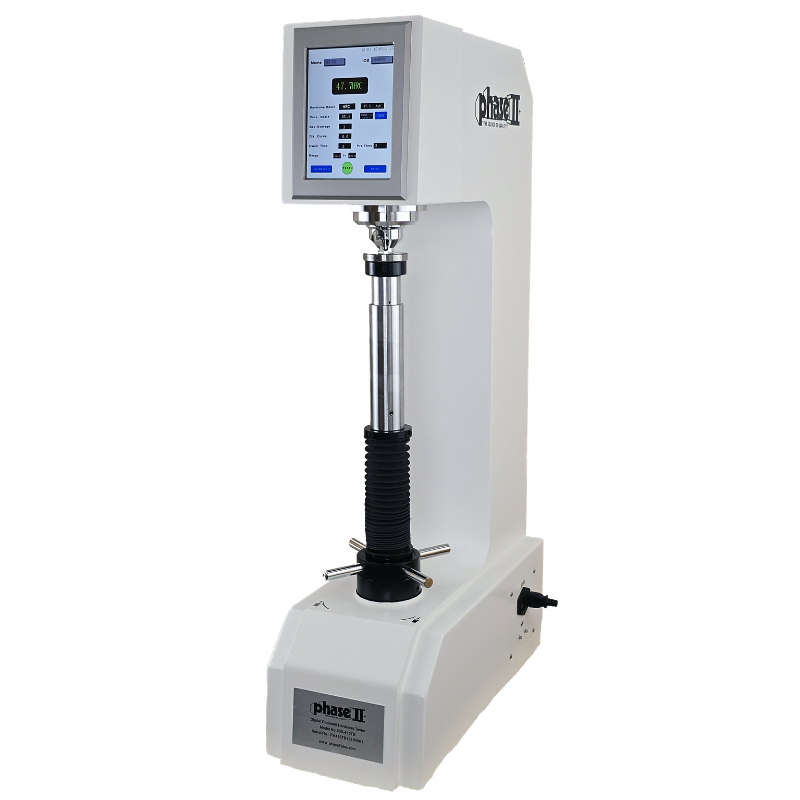

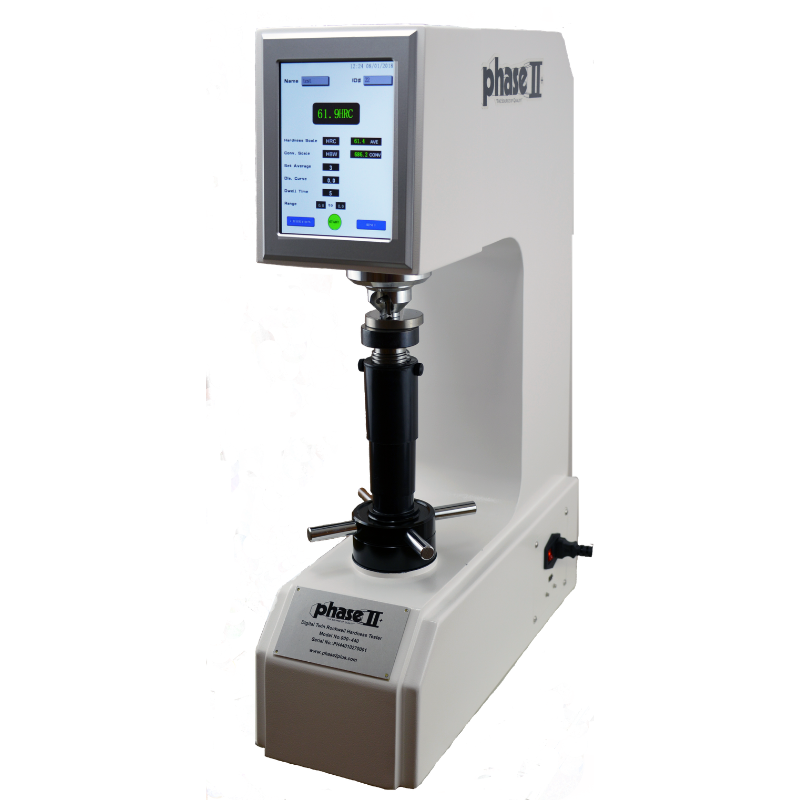

The 900-415 is the standard frame model with an 8.0" vertical capacity for the widest range of benchtop applications. The 900-415TB (Tall Boy) extends vertical capacity to 15.7" for larger components, and the 900-415XTB (Extra Tall Boy) pushes this further to 24" for the most demanding large-part testing scenarios — all on the same proven load cell platform with identical electronics, resolution, and included accessories.
Key Features
-

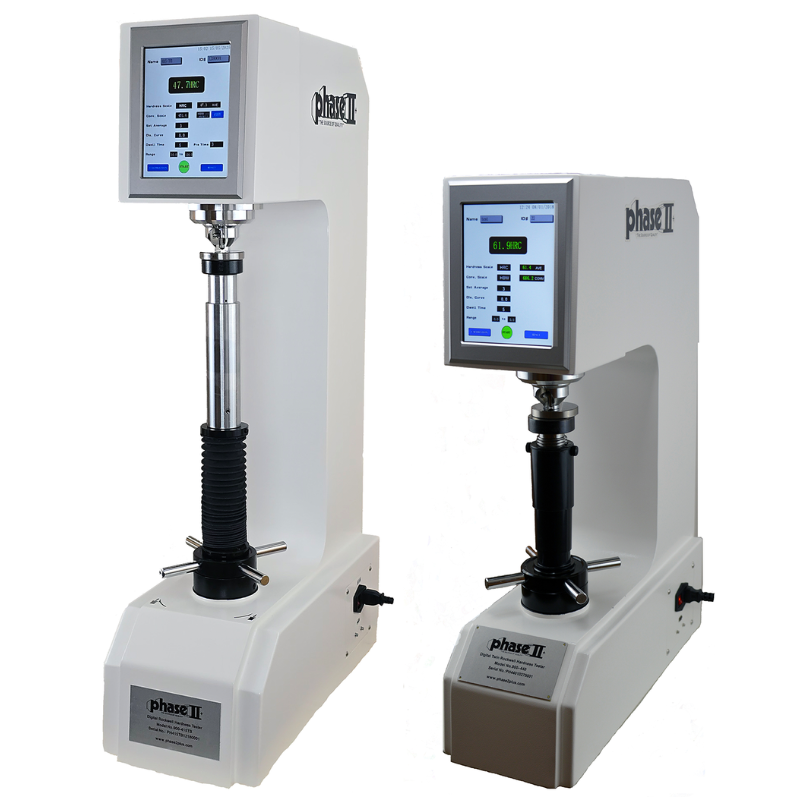

Three Frame Sizes, One Proven Load Cell Platform - Choose from the standard 900-415 (8.0" vertical), the Tall Boy 900-415TB (15.7" vertical), or the Extra Tall Boy 900-415XTB (24" vertical) to match your largest workpiece all featuring the same closed-loop load cell system, touch screen interface, and full Rockwell scale coverage.
-
Closed-Loop Load Cell Replaces Dead Weight System - Direct load cell force application with a motorized closed-loop drive eliminates mechanical dead weights and the friction, vibration sensitivity, and load variability they introduce, delivering faster, more accurate, and more repeatable Rockwell hardness test results across all major loads.
-
Fully Automated One-Touch Test Cycle with Touch Screen - The complete Rockwell test cycle - pre-load, major load application, dwell, unload, and result display - is performed automatically via a microcomputer-controlled touch screen, with programmable dwell times, scale conversions, statistical functions, and a test counter all configurable from the same interface.
-
Full Rockwell Scale Coverage with Auto Multi-Scale Conversion - Tests all standard Rockwell hardness scales (HRA, HRBW, HRC, HRD, HRE, HRF, HRG, and more) per ASTM E-18, with automatic on-screen conversion to Brinell (HB), Vickers (HV), and Superficial Rockwell scales.
-
Upper/Lower Limit Settings with Pass/Fail Alarm - Configurable min/max hardness thresholds enable fast GO/NO GO pass/fail decisions directly on the instrument, supporting efficient high-volume production line inspection without manual result interpretation or secondary lookup steps.
-
0.1HR Resolution with USB Flash Drive Data Output - A high-definition LCD digital readout with 0.1 HR resolution provides clear, precise hardness values in any lighting environment, with USB flash drive output for direct data storage and transfer for reporting, trending, and traceability documentation.
Specifications
| Specification |
900-415 |
900-415TB |
900-415XTB |
| Frame Type |
Standard |
Tall Boy |
Extra Tall Boy |
| Vertical Capacity |
8.0 in. |
15.7 in. |
24.0 in. |
| Throat Depth |
7.8 in. |
7.8 in. |
7.8 in. |
| Test Force Application |
Load Cell Closed Loop |
Load Cell Closed Loop |
Load Cell Closed Loop |
| Test Force Control |
Motorized |
Motorized |
Motorized |
| Minor Load |
10 kgf |
10 kgf |
10 kgf |
| Major Load |
60 kgf, 100 kgf, 150 kgf |
60 kgf, 100 kgf, 150 kgf |
60 kgf, 100 kgf, 150 kgf |
| Rockwell Scales |
All standard scales |
All standard scales |
All standard scales |
| Auto Scale Conversion |
HB, HV, Superficial Rockwell |
HB, HV, Superficial Rockwell |
HB, HV, Superficial Rockwell |
| Upper/Lower Limits |
Yes |
Yes |
Yes |
| Statistical Functions |
Yes (programmable) |
Yes (programmable) |
Yes (programmable) |
| Results Display |
Hi-Def LCD Digital |
Hi-Def LCD Digital |
Hi-Def LCD Digital |
| Resolution |
0.1 HR |
0.1 HR |
0.1 HR |
| Data Output |
USB Flash Drive |
USB Flash Drive |
USB Flash Drive |
| Height |
22.0 in. |
22.0 in. |
22.0 in. |
| Width |
8.0 in. |
8.0 in. |
8.0 in. |
| Depth |
31.0 in. |
31.0 in. |
31.0 in. |
| Weight |
175 lbs. |
175 lbs. |
175 lbs. |
| Operating Temperature |
50°F–95°F (10°C–35°C) |
50°F–95°F (10°C–35°C) |
50°F–95°F (10°C–35°C) |
| Power Supply |
AC 110–220V, 50–60 Hz, 4A |
AC 110–220V, 50–60 Hz, 4A |
AC 110–220V, 50–60 Hz, 4A |
| Standard Compliance |
ASTM E-18 |
ASTM E-18 |
ASTM E-18 |
Items Included
All three models include:
- Hardness Tester Main Unit
- C-Scale Diamond Indentor
- 1/16" Ball Indentor
- 3 HRC Test Blocks
- 1 HRB Test Block
- 1 HRA Test Block (900-415TB and 900-415XTB)
- Test Table 5.87" (150 mm)
- Flat Anvil 2.5" (63 mm)
- Standard Vee Anvil
- Standard Vee Anvil
- Accessory Case
- Dust Cover
