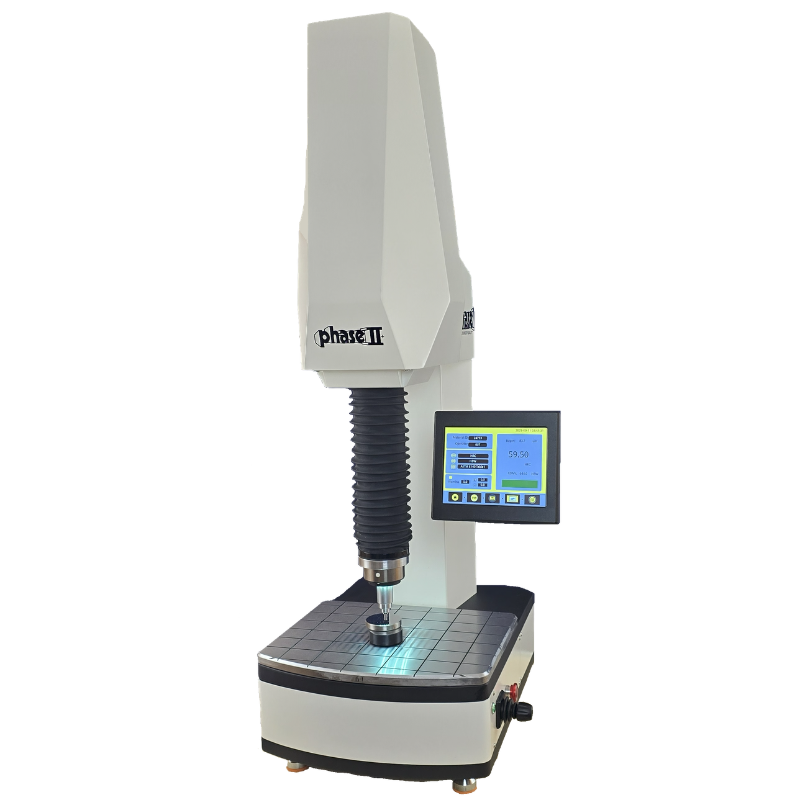

Phase2+ 900-475 Twin Rockwell Hardness Tester
The Phase2+ 900-475 is the most technologically advanced Twin Rockwell/Superficial Rockwell hardness tester in the Phase2+ lineup — a newly designed, fully automated instrument that introduces a suite of next-generation features not found on any previous model in the series. The 900-475 is suitable for determining Rockwell hardness of ferrous, non-ferrous metals, and non-metal materials, and is especially suitable for the precise measurement of both flat and curved surfaces.
The 900-475 is built around a high accuracy optical grating displacement measuring system with a significant advancement over the encoder-based depth measurement used in earlier load cell Rockwell testers. This system captures indentation depth with greater resolution and linearity, directly translating to more precise and consistent Rockwell hardness results across all test loads. The instrument also incorporates automatic tracking and testing with no test error caused by deformation of the frame and/or workpiece, further eliminating a common source of measurement variability in traditional designs.
The LED-lighted measuring head moves up and down automatically and applies the preliminary test force without operator input, while the fully automated load cycle handles pre-load, major load, dwell, and unload from a single touch of the start symbol on the display. The 900-475 is the only Phase2+ Rockwell tester to include Bluetooth data interface and an external wireless mini printer in the box which enables cable-free result transmission and on-the-spot hardness test documentation in any environment. Hardness scale conversions are based upon material per ASTM E140-12b (2019), a built-in round part correction factor is included, and precision conforms to ASTM E18, GB/T 230.2, and ISO 6508.
Key Features
-
High Accuracy Optical Grating Displacement Measuring System - Unlike encoder-based depth measurement in conventional digital Rockwell testers, the 900-475 uses an optical grating system for significantly higher resolution indentation depth capture directly improving Rockwell hardness measurement precision and linearity across all scales and test loads.
-
Automatic Tracking with Frame Deformation Error Elimination - The measuring head automatically tracks and compensates for workpiece position in real time, eliminating the measurement errors caused by elastic deformation of the tester frame and/or workpiece that can affect results on conventional motorized designs especially at higher test loads.
-
Full Twin Testing: 30 Rockwell + Superficial Rockwell Scales - Tests all 30 standard Rockwell and Superficial Rockwell hardness scales in one instrument, HRA through HRV and HR15N through HR45Y with automatic conversions to Brinell (HB), Vickers (HV), and all cross-scale outputs per ASTM E140-12b (2019), including built-in round part correction factor for curved surface testing.
-
Bluetooth + Wireless Mini Printer Included - The only Phase2+ Rockwell tester with Bluetooth data interface built in, paired with an included external wireless mini printer for cable-free, on-the-spot hardness test result documentation directly at the test station without a PC or tethered cables required for basic reporting.
-
LED-Lighted Auto Measuring Head & Large Test Table - An LED-illuminated measuring head automatically moves to apply preliminary test force regardless of sample height, while the large test table accommodates abnormal shapes, heavy workpieces, and large structural components that standard Rockwell tester tables cannot support.
-
ASTM E18, ISO 6508 & GB/T 230.2 Compliant - 5-Year Warranty - Precision conforms to ASTM E18, ISO 6508, and GB/T 230.2 simultaneously, with 6 NIST/ASTM certified test blocks included in the box and a 5-year warranty, the most comprehensive compliance and coverage package in the Phase2+ Rockwell hardness tester line.
Specifications
| Specification |
Details |
| Model |
900-475 |
| Test Type |
Twin: Regular Rockwell & Superficial Rockwell |
| Displacement Measurement |
High Accuracy Optical Grating System |
| Test Force Application |
Load Cell Closed Loop |
| Test Force Control |
Fully Motorized / Automated |
| Frame Deformation Compensation |
Automatic Tracking |
| LED Measuring Head |
Yes (auto-lifting, auto pre-load) |
| Minor Load |
3 kgf (Superficial) / 10 kgf (Rockwell) |
| Major Load |
15 kgf, 30 kgf, 45 kgf (Superficial) / 60 kgf, 100 kgf, 150 kgf (Rockwell) |
| Rockwell Scales |
HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV |
| Superficial Rockwell Scales |
HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y |
| Auto Scale Conversions |
Brinell (HB), Vickers (HV), all Rockwell/Superficial Rockwell scales |
| Conversion Standard |
ASTM E140-12b (2019), material-based |
| Round Part Correction |
Built-in |
| Display |
Large LCD, Touch Screen, Menu Operation |
| Data Interface |
Bluetooth |
| Upper/Lower Limit Settings |
Yes (GO/NO GO) |
| Standard Compliance |
ASTM E18, ISO 6508, GB/T 230.2 |
| Warranty |
5 Years |
| ROCKWELL SCALE REFERENCE TABLE: |
| Scale |
Indentor |
Preliminary Force |
Total Force |
Typical Applications |
| A |
Spheroconical Diamond |
10 kgf |
60 kgf |
Cemented carbides, thin steel, shallow case hardened steel |
| B |
1/16" Carbide Ball |
10 kgf |
100 kgf |
Copper alloys, soft steels, aluminum alloys, malleable iron |
| C |
Spheroconical Diamond |
10 kgf |
150 kgf |
Steel, hard cast irons, titanium, deep case hardened steel |
| D |
Spheroconical Diamond |
10 kgf |
100 kgf |
Thin steel and medium case hardened steel |
| E |
1/8" Carbide Ball |
10 kgf |
100 kgf |
Cast iron, aluminum & magnesium alloys, bearing metals |
| F |
1/16" Carbide Ball |
10 kgf |
60 kgf |
Annealed copper alloys, thin soft sheet metals |
| G |
1/16" Carbide Ball |
10 kgf |
150 kgf |
Malleable irons, copper-nickel-zinc alloys |
| 15N |
Spheroconical Diamond |
3 kgf |
15 kgf |
Thin hardened steel, similar to A/C/D scales |
| 30N |
Spheroconical Diamond |
3 kgf |
30 kgf |
Thin hardened steel, similar to A/C/D scales |
| 45N |
Spheroconical Diamond |
3 kgf |
45 kgf |
Thin hardened steel, similar to A/C/D scales |
| 15T |
1/16" Carbide Ball |
3 kgf |
15 kgf |
Thin soft sheet metals, similar to B/F/G scales |
| 30T |
1/16" Carbide Ball |
3 kgf |
30 kgf |
Thin soft sheet metals, similar to B/F/G scales |
| 45T |
1/16" Carbide Ball |
3 kgf |
45 kgf |
Thin soft sheet metals, similar to B/F/G scales |
Items Included
- Phase2+ 900-475 Twin Hardness Tester
- C/N Diamond Penetrator
- 1/16" Carbide Ball Indentor
- 6 pc NIST/ASTM Certified Test Blocks (3 HRC, 1 HRB, 1 HRN, 1 additional)
- Small Round Flat Anvil
- V-Anvil
- External Wireless Mini Printer
- Dust Cover
