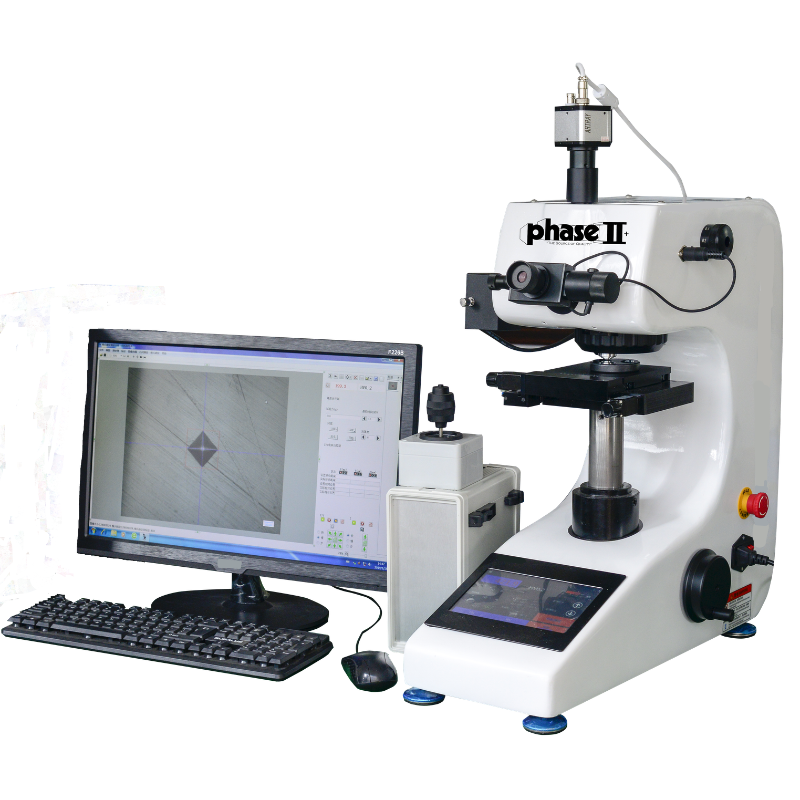

Phase2+ 900-505 Fully Automated Micro Vickers Hardness Tester
The Phase2+ 900-505 is the most fully automated micro Vickers hardness tester in the Phase2+ lineup - a complete, PC-driven hardness testing system that integrates a programmable motorized XYZ stage, automatic turret, and fully automatic measurement software into a single cohesive platform purpose-built for high-throughput metallography labs and precision production QC environments.
The 900-505 micro Vickers hardness tester includes an automated XYZ platform and controllers along with Auto-Turret, video camera, adapter, USB output cable, and automatic measurement software. Where the 900-390 and 900-391 series require an operator to manually position the specimen between test points, the 900-505 automates the entire test sequence from specimen positioning, turret switching, indentation, measurement, and data capture following any of 14 fully programmable test patterns programmed directly into the software.
The system is designed to test in both Vickers (HV) and Knoop (HK) hardness scales, with fully programmable and automatic hardness testing in both methods. Eight dedicated Vickers scales (HV0.01 through HV1) and eight Knoop scales (HK0.01 through HK1) are available, with dwell times programmable from 0 to 90 seconds in 5-second increments and test forces covering the full range from 10g to 1000g. The 900-505 can toggle back and forth between Vickers and Knoop measurement with automatic turret switching and the turret can also be operated manually when needed. Conforming to ASTM E-384/92 Vickers hardness tester standards, the 900-505 series offers unmatched repeatability, and is offered with a 5-year warranty and free lifetime technical support.
Key Features
-
Fully Programmable Motorized XYZ Stage with 14 Test Pattern Types - A motorized XY stage (110 × 110 mm table, 25 × 25 mm travel, 0.002 mm revolving precision) combined with Z-axis motor control enables fully automated multi-point hardness test sequences across 14 programmable patterns including line, matrix, arc, gear fillet, gear top parallel, curve sets, and circle center eliminating manual specimen repositioning between test points entirely.
-
Automated XYZ Platform + Auto-Turret + Auto Edge Detection Software - The 900-505 integrates motorized XYZ positioning, an automatic turret that switches between the indentor and measurement objective without operator contact, and automatic edge detection measurement software into a single unified system fully automating every step from specimen placement to hardness result output.
-
Full Vickers & Knoop Scale Coverage with Toggle Mode - Tests all eight Vickers scales (HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1) and all eight Knoop scales (HK0.01 through HK1) with seamless toggle between HV and HK test modes, covering the complete range of micro and macro Vickers force applications from 10g to 1000g.
-
0.0625 µm Measurement Resolution with 1.3MP USB Camera - A 1.3-megapixel USB 2.0 camera (Model 130-WOM) paired with 10× (observation) and 40× (measurement) objectives delivers 100× and 400× total magnification with 0.0625 µm measurement resolution capturing crisp, dimensionally precise indentation images for both automatic and manual diagonal measurement on screen.
-
Fully Automatic Force Cycle with Programmable Dwell Time - Load application, dwell, and unload are performed entirely automatically with dwell times programmable from 0 to 90 seconds in 5-second increments with 10 adjustable halogen brightness levels ensuring optimal indentation contrast across the full range of specimen surface finishes and material types.
-
Complete PC-Controlled Testing System - ASTM E-384 Compliant - All test parameters, pattern programming, specimen positioning, measurement, hardness conversions, data statistics, and reporting are controlled from a connected PC via USB, with an RS-232 interface for additional connectivity conforming to ASTM E-384/92 for traceable micro Vickers and Knoop hardness testing results. 5-year warranty and lifetime technical support included.
Specifications
| Specification |
Details |
| Model |
900-505 |
| Test Methods |
Vickers (HV) and Knoop (HK) — toggle mode |
| Vickers Scales |
HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
| Knoop Scales |
HK0.01, HK0.025, HK0.05, HK0.1, HK0.2, HK0.3, HK0.5, HK1 |
| Test Forces |
10, 25, 50, 100, 200, 300, 500, 1,000 gf (98–9,800 Nm) |
| Test Force Application |
Automatic (load / hold / unload) |
| Dwell Time |
0–90 seconds (5-second increments) |
| XY Stage Dimensions |
110 × 110 mm |
| XY Travel Range |
25 × 25 mm |
| XY Stage Revolving Precision |
0.002 mm |
| Turret |
Auto-Turret (automatic and manual selectable) |
| Objective Lenses |
10× (observation) / 40× (measurement) |
| Eyepiece |
10× |
| Total Magnification |
100× (observation) / 400× (measurement) |
| Measurement Resolution |
0.0625 µm |
| Camera |
1.3MP USB 2.0 (Model 130-WOM) |
| Halogen Brightness |
10 adjustable levels |
| Test Patterns |
14 programmable types |
| Data Interface |
USB (software dongle) / RS-232 |
| Language |
English / Chinese |
| Standard Compliance |
ASTM E-384/92 |
| Warranty |
5 Years |
| Technical Support |
Lifetime |
| 14 PROGRAMMABLE TEST PATTERN TYPES: |
| # |
Pattern Type |
# |
Pattern Type |
| 1 |
Line |
8 |
Arc |
| 2 |
Line Set |
9 |
Gear Fillet |
| 3 |
Free Click |
10 |
Gear Top Parallel |
| 4 |
Horizontal Line |
11 |
Auto Line Sets |
| 5 |
Vertical Line |
12 |
Auto Matrices |
| 6 |
Curve Line Sets |
13 |
Circle Center |
| 7 |
Curve Matrices |
14 |
Curve Gear Top Parallel |
Items Included
- Phase2+ 900-505 Base Machine with Auto-Turret
- Motorized XY Stage (110 × 110 mm table, 25 × 25 mm travel)
- XYZ Stepping Drive Box
- AC Power Cable
- USB Communication Cable
- XY Motor Cable
- Z Motor Cable
- RS-232 Cable
- 1.3MP USB 2.0 Video Camera (Model 130-WOM) with Adapter
- Fully Automatic Vickers Software (USB Dongle + Software CD)
Phase2+ 900-505 Fully Automated Micro Vickers Hardness Tester User Manual
Phase2+ 900-505 Fully Automated Micro Vickers Hardness Tester Catalog
Phase2+ 900-505 Fully Automated Micro Vickers Hardness Tester Software User Manual
