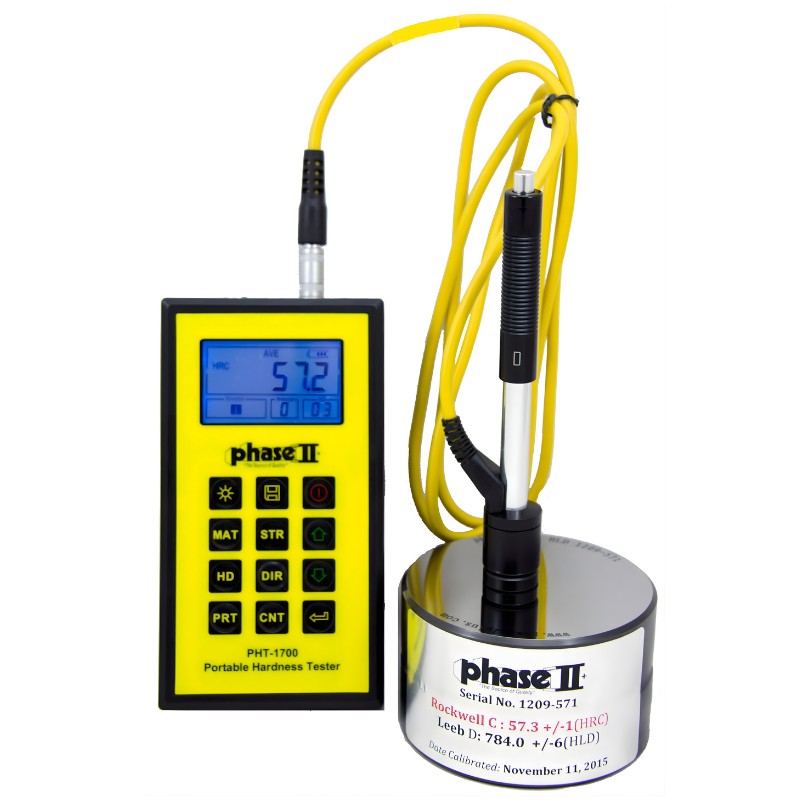

Phase2+ PHT-1700 Hardness Tester with D impact Device
The Phase2+ PHT-1700 Series encompasses three specialized portable Leeb hardness testers, the PHT-1700, PHT-1740, and PHT-1750 each built on the same reliable platform and differentiated by the impact device included to address a specific range of testing applications. All three models share the same economical, feature-loaded design: simple push-button operation, a large backlit LCD, automatic multi-scale hardness conversion, automatic mean value calculation, and on-board data storage. The series is designed to deliver consistent and repeatable hardness measurements across a broad range of metals on both flat and curved surfaces without requiring complex setup or specialized training.

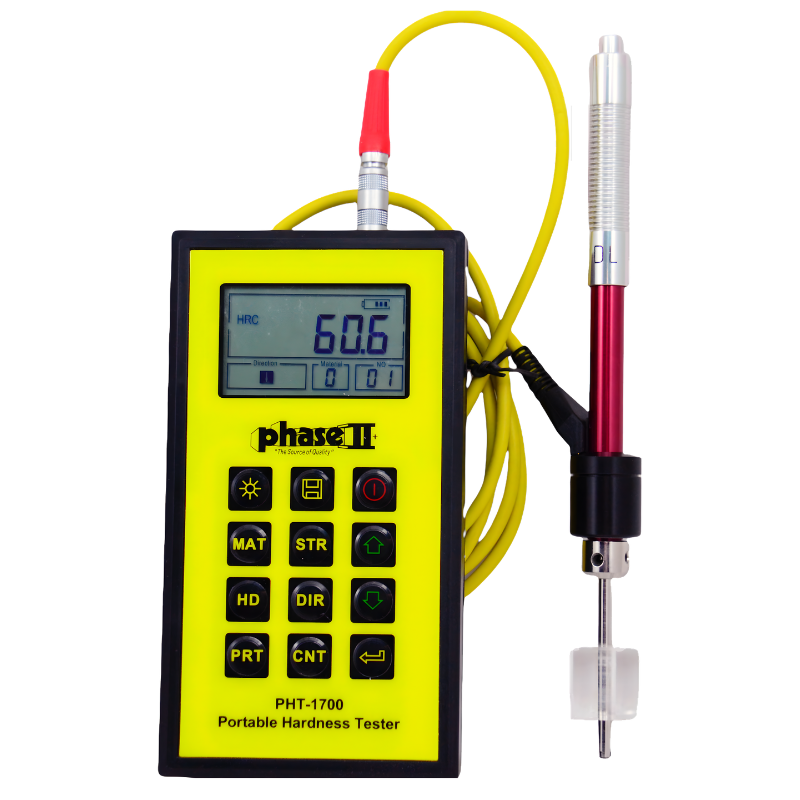

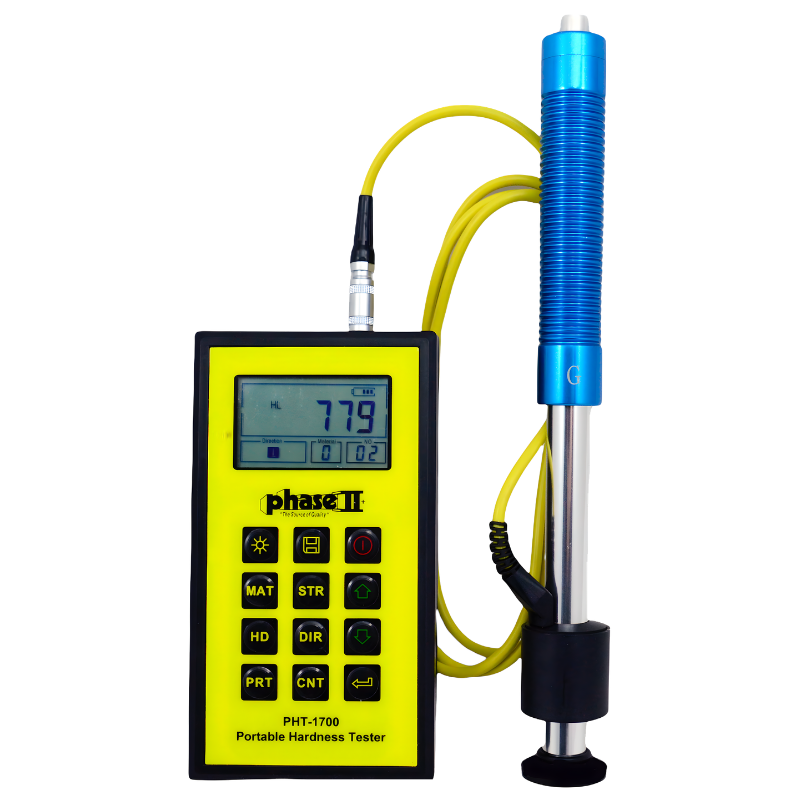

The PHT-1700 is the general-purpose model, designed to measure the surface hardness of a broad variety of metals on flat or round surfaces using the universally standard Type D impact device, which is suited to the majority of testing assignments. The PHT-1740 is a dedicated variant designed to test gear teeth and other difficult-to-access applications, and comes complete with the Type DL impact device. The PHT-1750 is engineered specifically for large cast parts and components with rough surfaces, and is supplied with the Type G impact device, which features an enlarged test tip and increased energy output suited to heavy solid components.
All three models achieve accuracy of +/- 0.5% referenced to L=800 with repeatability of +/- 4 HL units across a measuring range of 200 to 960 HL, and share the same compatible materials list: steel and cast steel, alloy tool steel, stainless steel, grey cast iron, spheroidal iron, cast aluminum, brass, bronze, and wrought copper alloy. NIST/ASTM certified hardness test blocks, penetrators, and kits are available as optional accessories for all three models.
Key Features
-
Three-Model Series with Application-Specific Impact Devices - The PHT-1700 (Type D), PHT-1740 (Type DL), and PHT-1750 (Type G) share the same instrument platform while each addressing a distinct testing environment, from general flat surfaces to gear teeth to rough castings.
-
Automatic Multi-Scale Hardness Conversion - All models instantly display results in Brinell, Rockwell, Vickers, and Shore hardness scales without manual lookup or conversion, reducing operator workload and error.
-
Large Backlit LCD Display - Clear, readable display across all ambient light conditions including low-light shop floors, field environments, and outdoor applications.
-
Automatic Mean Value Calculation with Data Storage - Statistical mean is calculated and displayed automatically across multiple impact readings, and results are stored on-board for later review and reference.
-
Simple Push-Button Operation - Minimal steps from setup to reading on all three models: load the impact body, position on the test piece, and press the button to obtain a result.
-
NIST/ASTM Certified Test Blocks Available - Optional certified reference standards are available for all three models to support documented calibration verification and compliance requirements.
Specifications
| Feature |
PHT-1700 |
PHT-1740 |
PHT-1750 |
| Primary Application |
General-purpose flat and round surfaces |
Gear teeth and confined spaces |
Rough cast surfaces and heavy components |
| Impact Device Type |
Type D (universal standard) |
Type DL (needle front section) |
Type G (enlarged test tip) |
| DL Needle Dimensions |
N/A |
0.109" dia. x 1.96" length |
N/A |
| G Device Characteristic |
N/A |
N/A |
Approx. 9x energy of Type D probe; Brinell only, max 650 HB |
| Measuring Range |
200 – 960 HL |
| Accuracy |
+/- 0.5% (ref. L=800) |
| Repeatability |
+/- 4 HL units |
| Hardness Scales |
HV, HB, HRC, HRB, HS, HL |
HB (Brinell primary), HL |
| Battery |
2 x AAA alkaline |
| Operating Temperature |
41 – 104 degrees F |
| Dimensions |
4.25" x 2.44" x 0.98" (108 x 62 x 25 mm) |
| Weight |
230 g (8.1 oz) |
Items Included
- Items Included (Each Model)
- PHT-1700
- PHT-1700 Portable Hardness Tester
- Type D impact device
- Calibrated test block
- Custom carry case
- Cleaning brush
- Operation manual
- PHT-1740
- PHT-1740 Portable Hardness Tester
- Type DL impact device
- Calibrated test block
- Custom carry case
- Cleaning brush
- Operation manual
- PHT-1750
- PHT-1750 Portable Hardness Tester
- Type G impact device
- Calibrated test block
- Custom carry case
- Cleaning brush
- Operation manual
