The Phase2+ PHT-1800 Series represents the advanced tier of the Phase II portable Leeb hardness tester lineup, delivering the features and performance of high-end laboratory instruments in a compact, field-ready package at an economical price. The series consists of three models, the PHT-1800, PHT-1840, and PHT-1850 each sharing the same state-of-the-art digital platform while being differentiated by the application-specific impact device included to address the full spectrum of industrial hardness testing requirements.
All three models feature easy keypad operation, automatic impact device identification, a large backlit LCD display, USB output, automatic conversion to Brinell, Rockwell B and C, Vickers, and Shore hardness scales, automatic mean, minimum, and maximum value reporting, a battery indicator, and 100-group memory capacity. The series meets ASTM A956 specifications and is NIST certified with a five-year warranty, making it suitable for regulated quality assurance environments as well as demanding production and field inspection settings.

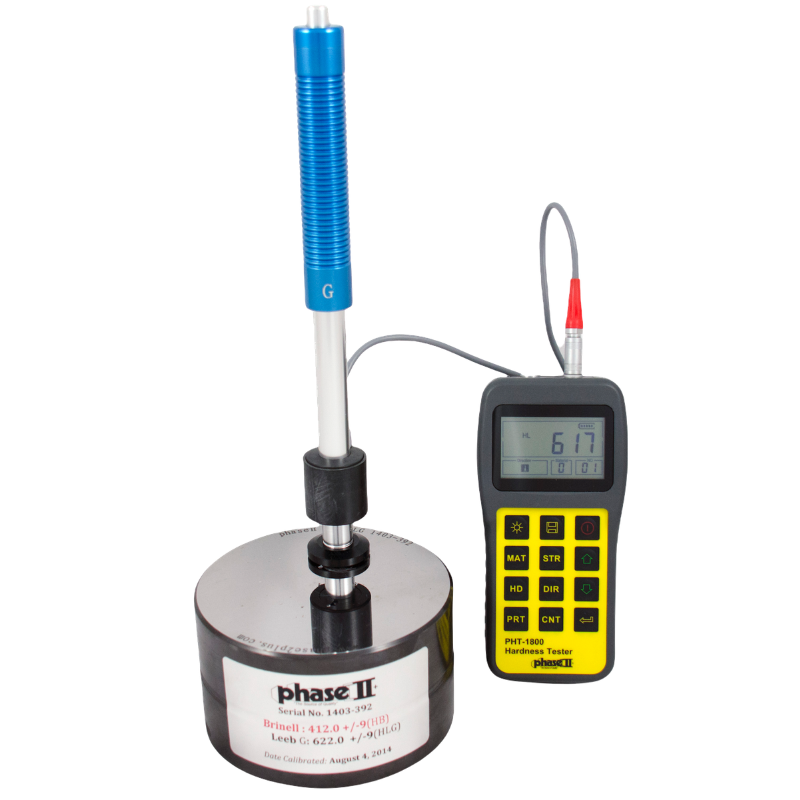

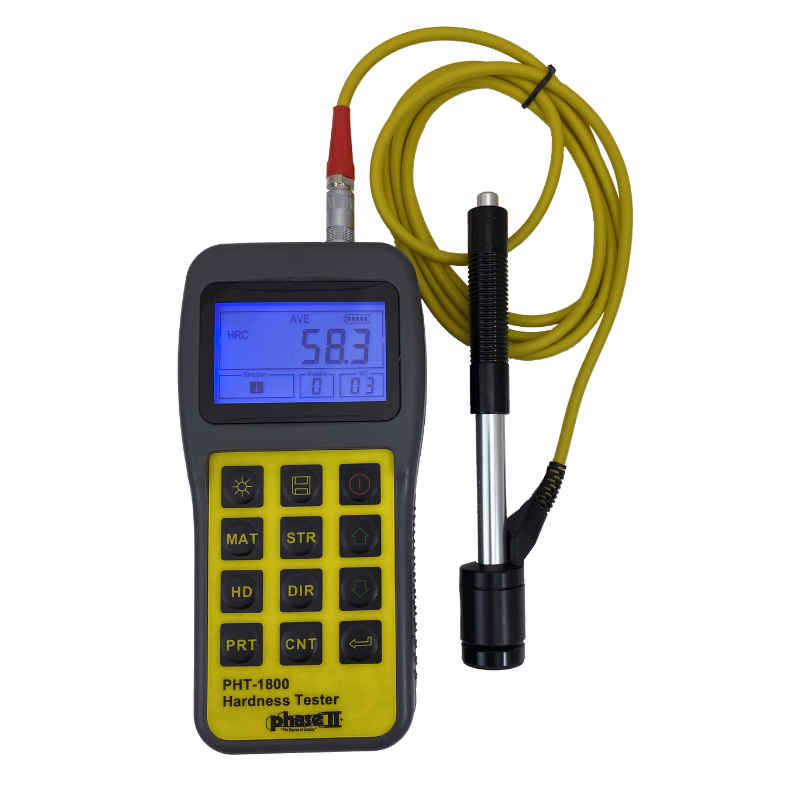

The PHT-1800 is designed to test the hardness of large, hard metal parts and includes the universally standard Type D impact device, suitable for the majority of testing assignments. The PHT-1840 is a dedicated variant designed to test gear teeth and other difficult-to-access applications, and is supplied with the Type DL impact device featuring a needle front section of 0.109 inch diameter and 1.96 inch length. The PHT-1850 is designed to test large cast parts and components with rough surfaces, and includes the Type G impact device with an enlarged test tip for use on solid, heavy components such as rough castings and forgings.
| Feature | PHT-1800 | PHT-1840 | PHT-1850 |
| Primary Application | General-purpose flat and round surfaces | Gear teeth, grooves, and confined spaces | Large castings and rough or porous surfaces |
| Impact Device Type | Type D (universal standard) | Type DL (needle front section) | Type G (enlarged test tip) |
| DL Needle Dimensions | N/A | 0.109" dia. x 1.96" length | N/A |
| G Device Characteristic | N/A | N/A | Enlarged tip; approx. 9x energy of Type D; Brinell only, max 650 HB |
| Measuring Range | 200 – 960 HL | ||
| Accuracy | =+/- 0.5% (ref. L=800) | ||
| Repeatability | =+/- 4 HL units | ||
| Hardness Scales Displayed | HV, HB, HRC, HRB, HS, HL | HV, HB, HRC, HRB, HS, HL | HB (primary), HL |
| Memory | 100 groups | ||
| Connectivity | USB with PC software | ||
| Display | Large backlit LCD | ||
| Battery | 4 x AA alkaline | ||
| Operating Temperature | 41 – 104 degrees F | ||
| Dimensions | 5.91" x 2.91" x 1.26" (150 x 74 x 32 mm) | ||
| Weight | 245 g (8.6 oz) | ||
| Standard Compliance | ASTM A956 | ||
| Certification | NIST Certified | ||
| Warranty | 5 Years | ||
Steel and cast steel, alloy tool steel, stainless steel, grey cast iron, spheroidal iron, cast aluminum, brass, bronze, and wrought copper alloy.
Phase2+ PHT-1800, PHT-1840, and PHT-1850 Portable Hardness Tester User Manual
Phase2+ PHT-1800, PHT-1840, and PHT-1850 Portable Hardness Tester Catalog
