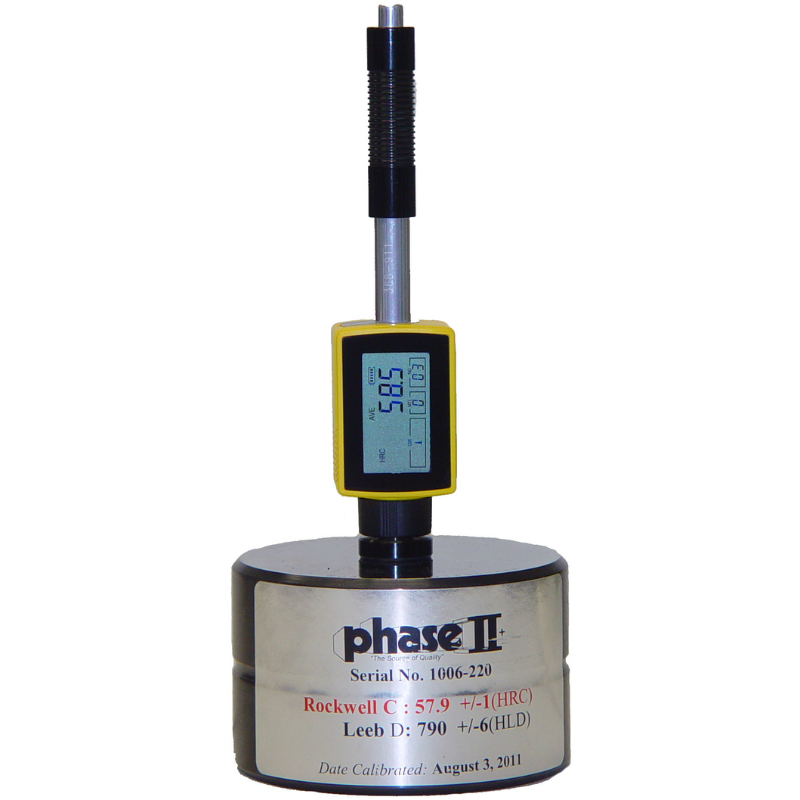

Phase2+ PHT-3300 Integrated Hardness Tester
The Phase2+ PHT-3300 Mini-Integrated Portable Hardness Tester is a compact, all-in-one Leeb (dynamic) hardness testing solution engineered for professionals who need accurate, reliable measurements directly in the field or on the production floor. Combining the universal Type D impact device and a data processor in a single integrated unit. The PHT-3300 eliminates the need for separate components, making it one of the most streamlined portable hardness testers available. Its wide measuring range, compact form factor, and straightforward operation make it well-suited for field testing of large, hard metal parts across a broad range of industries.
The PHT-3300 automatically performs direct conversion and display of all major hardness scales - HRB, HRC, HRA, HV, HB, HS, and HL - removing the need for manual conversion charts and reducing operator error. The impact direction can be configured to achieve accurate values at any angle, including completely inverted positions, and statistical mean values are calculated and provided automatically. With USB connectivity, PC software, and storage for up to 500 measurement groups, the PHT-3300 is built for traceable, documented quality control workflows. It meets ASTM A956-06 specifications, confirming its suitability for regulated testing environments.
Key Features
-
All-in-One Integrated Design - Impact device and data processor are combined in a single handheld unit, eliminating cabling between components for faster, cleaner field use.
-
Multi-Scale Automatic Conversion - Instantly displays hardness values in HV, HB, HRC, HRB, HRA, HS, and HL without manual lookup or conversion.
-
360° Directional Testing - Impact direction is fully configurable, enabling accurate measurement at any orientation including overhead and inverted positions.
-
500-Group Data Memory with USB Output - Stores up to 500 measurement groups and transfers data to a PC via USB for reporting and analysis.
-
Automatic Statistical Mean Value - Calculates and displays mean values automatically across multiple readings for improved measurement confidence.
-
ASTM A956-06 Compliant - Meets the industry standard for Leeb hardness testing of metallic materials, supporting QA documentation requirements.
Specifications
| Model Number |
PHT-3300 |
| Manufacturer |
Phase2+ |
| Tester Type |
Leeb (Dynamic) / Integrated Portable |
| Impact Device Type |
Type D (integrated) |
| Measuring Range |
200 – 900 HL |
| Hardness Scales Displayed |
HV, HB, HRC, HRB, HRA, HS, HL |
| Max. Sample Hardness |
980 HV |
| Min. Sample Weight |
11 lbs / 5 kg |
| Min. Radius of Curved Surface |
1.2 in (30 mm); with support rings: 11 mm |
| Data Memory |
Up to 500 groups |
| Connectivity |
USB (PC software included) |
| Display |
Large backlit LCD |
| Battery |
Li-Ion rechargeable |
| Battery Life |
200+ hours continuous use |
| Dimensions |
6.10" × 2.36" × 1.49" (155 × 60 × 38 mm) |
| Standard Compliance |
ASTM A956-06 |
| Auto Power Off |
Yes |
Items Included
- PHT-3300 Integrated Portable Hardness Tester (with Type D impact device)
- Calibrated hardness test block
- USB output cable
- PC data software
- Rugged carry case
- Operation manual
