Phase2+ PHT-5000 Brinell Optical Scan System

Phase2+ PHT-5000 Brinell Optical Scan System

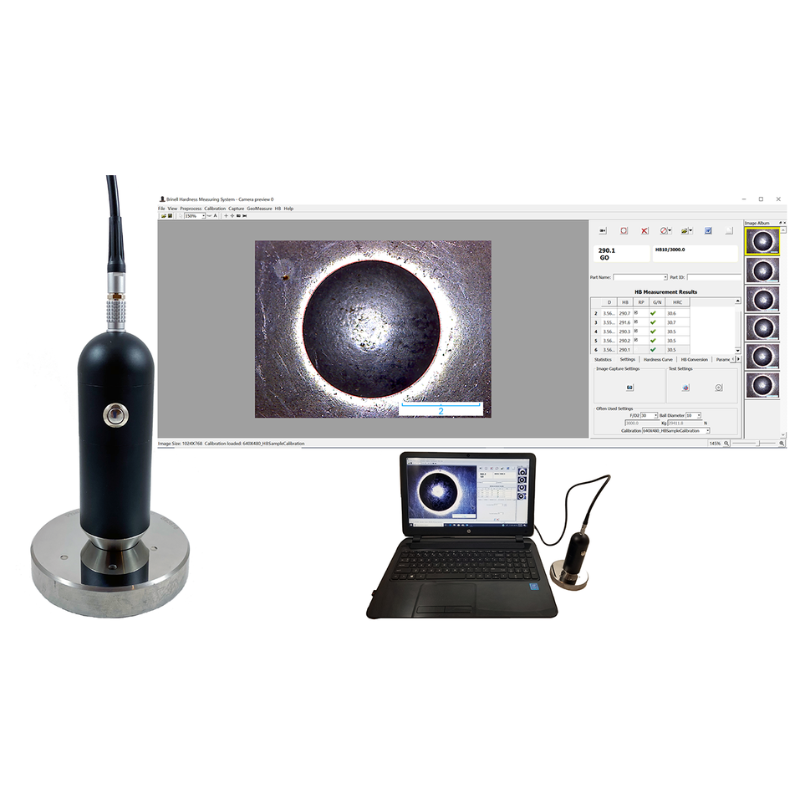

The Phase2+ PHT-5000 Brinell Optical Scan System is an advanced optical video measurement solution that eliminates the subjectivity and inconsistency inherent in manual Brinell indentation reading, replacing eyepiece-based measurement with a fully automated digital imaging and analysis platform. The system includes the core functions of a professional imaging system such as image capture, camera calibration, image processing, geometric measurement, document labeling, and album management and automatically or manually measures indentation diameters and calculates the Brinell hardness (HB) value, with HB2 measurement per DIN 1605 standard.

The PHT-5000 automatically or manually measures indentation diameters on both calibration and test samples, automatically interpolates the HB value for the test sample, converts Brinell hardness to other hardness scales, validates test results against sample dimensions, and automatically updates statistical values including average, minimum, maximum, standard deviation, Cp, and Cpk. An automatic alarm function flags out-of-specification measurements as they occur, and the system generates fully customizable test reports in Microsoft Word or Excel format without requiring manual data entry or post-processing.

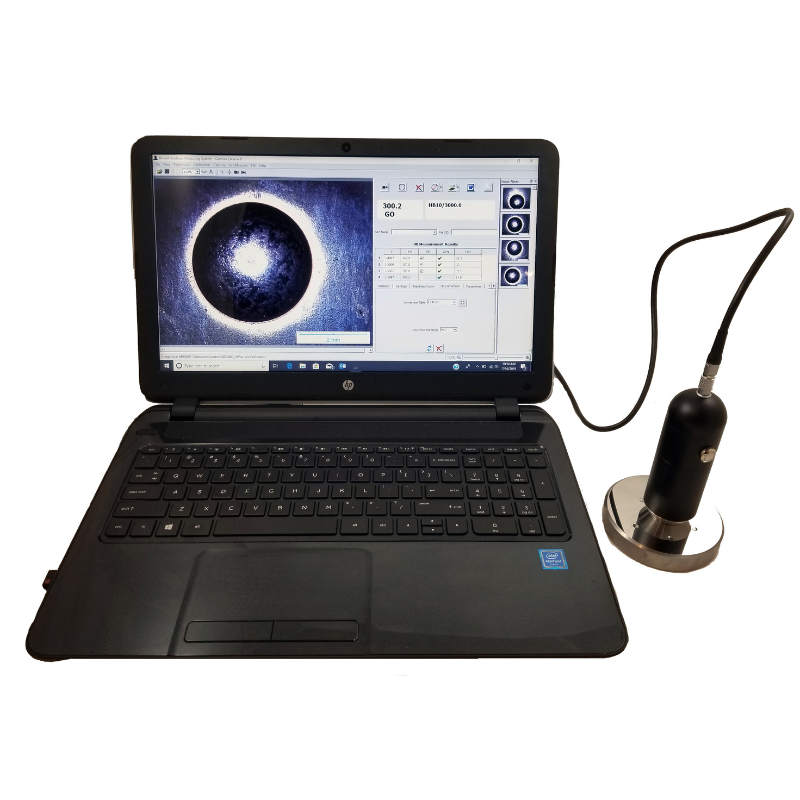

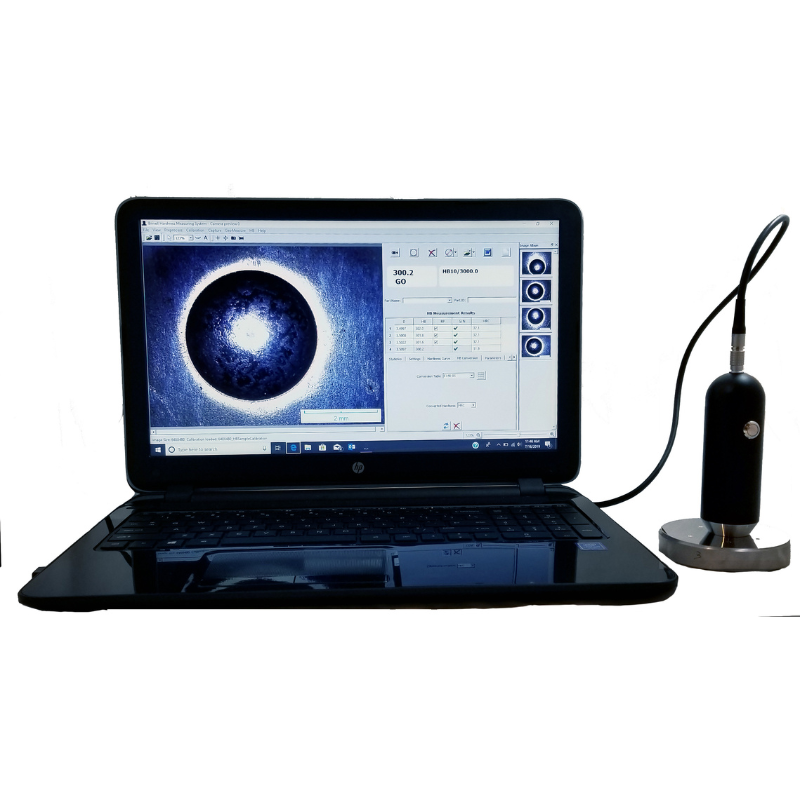

The system is built around a single 1.3-megapixel CMOS USB camera paired with two interchangeable camera tubes, each offering two magnification levels, providing four total magnification settings that cover the complete Brinell indentation measurement range. Tube 1 at magnification setting 1 is suited for indentation diameters of 3 to 6 mm; magnification setting 2 covers 0.8 to 1.6 mm. Tube 2 at magnification setting 3 covers 2 to 4 mm; magnification setting 4 covers 1 to 2 mm. The system resolution is 0.0001, and the image processing technology has been field proven under severe sample surface conditions. Note that a laptop computer is not included and must be provided separately.

Key Features

• Automated Optical Brinell Measurement - Replaces manual eyepiece reading with a digital imaging system that automatically detects and measures Brinell indentation diameters and calculates HB values, eliminating operator subjectivity and improving repeatability across operators and shifts.
• Single Camera with Four Magnification Levels - A 1.3-megapixel CMOS USB camera paired with two interchangeable tubes, each at two heights, provides four distinct magnification settings covering the full Brinell indentation diameter range from 0.8 mm to 6.0 mm in a single system.
• HB2 Measurement per DIN 1605 Standard — Supports automatic measurement in compliance with the DIN 1605 standard for dual-diagonal Brinell indentation measurement, with automatic interpolation of HB values from calibration and test sample readings.
• Full Statistical Process Control Output - Automatically calculates and displays average, minimum, maximum, standard deviation, Cp, and Cpk values across test groups, with automatic out-of-specification alarm flagging to support real-time process monitoring and quality control.
• Automatic Customizable Report Generation - Produces fully formatted, customizable test reports in Microsoft Word or Excel format directly from the system, eliminating manual transcription and supporting documentation requirements for regulated inspection and quality systems.
• Friendly Interface with Manual Override - Automatic measurement is triggered with a single keystroke or button click, and test results can be manually generated or corrected with a single mouse drag, giving operators flexibility to handle challenging or irregular indentation surfaces.

Specifications

Items Included

• PHT-5000 Optical Brinell Scan System camera unit
• 2 x Camera tubes (Tube 1 and Tube 2, each with two magnification heights)
• USB camera cable
• Measurement and analysis software
• Operation manual
