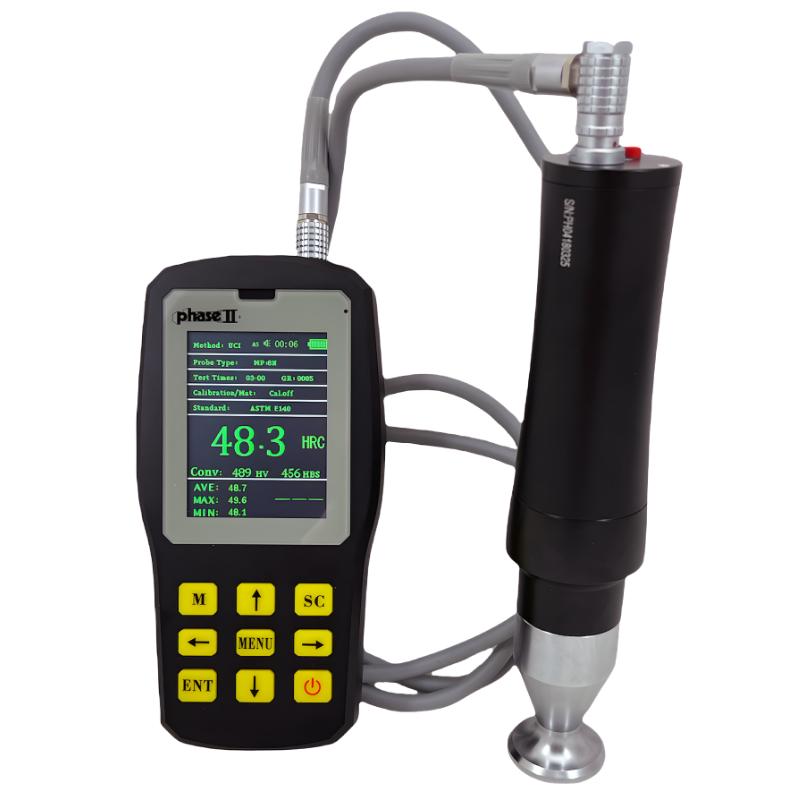

Phase2+ PHT-6030/PHT-6080 Ultrasonic Hardness Tester
The Phase2+ PHT-6030 and PHT-6080 are state-of-the-art portable hardness testers that combine two industry-accepted testing methods, Ultrasonic Contact Impedance (UCI) and Leeb Dynamic Impact into a single, handheld instrument. Designed for professionals in quality control, manufacturing, aerospace, automotive, and heavy industry, these testers deliver fast, accurate, and non-destructive hardness measurements on a wide range of metals, from thin coatings and finished parts to large structural components, without leaving any meaningful mark on the test surface.
The UCI method works by depressing a 136-degree diamond-tipped vibrating rod into the test surface at a controlled load. The shift in ultrasonic vibration frequency is then converted into a hardness value, enabling testing on metals as thin as 2mm (0.08") and at hardness values as low as 20 HRC (75 HB) — making it ideal for applications where dynamic impact testers fall short. The integrated Leeb Dynamic Impact method complements the UCI probe by using a spring-loaded impact body to measure thrust and rebound velocity, automatically converting the result to Rockwell, Brinell, Vickers, and Shore values for fast general-purpose testing on larger components.
The PHT-6030 is equipped with a 0.30 kgf motorized probe, making it the preferred choice for checking coating layer hardness and finished thin parts where surface integrity is critical. The PHT-6080 uses a 0.80 kgf motorized probe, optimized for smooth bearing-type surfaces. Both models feature a backlit color LCD display, 2000-group data memory with USB output, and multilingual software with statistical reporting exportable to Word or Excel giving QC teams complete documentation capability in the field or on the shop floor.
Key Features
-
Dual-Method Testing in One Instrument - Combines UCI (Ultrasonic Contact Impedance) and Leeb Dynamic Impact hardness testing in a single handheld device, providing maximum versatility across a wide range of application types, part sizes, and material conditions.
-
Non-Destructive on Thin and Finished Parts - The motorized UCI probe tests steel as thin as 2mm (0.08") with no meaningful surface damage, making it ideal for coatings, case-hardened layers, finished components, and bearings where surface integrity cannot be compromised.
-
Motorized Probe for Consistent, Repeatable Results - Automated load application eliminates operator force variation, delivering ±3.0% tolerance accuracy (minimum 5 tests) across HRC, HRB, HRA, HB, HV, and Leeb scales with no manual pressure guesswork.
-
2000-Group Data Memory with USB Output and Statistical Software - Stores up to 2,000 test groups and 20 calibration groups, with included statistical software that exports results directly to Word or Excel for streamlined QC documentation and traceability.
-
Backlit Color LCD with Multi-Scale Instant Conversion - Full-color display with adjustable brightness shows simultaneous hardness conversions across Rockwell C, Rockwell B, Brinell, Vickers, and Shore scales, plus extended UCI-only scales including HRF, HK, and HD.
-
Rechargeable Lithium Battery with ~6-Hour Runtime - Built-in 4800mAh lithium battery powers approximately 6 hours of continuous operation (without backlight), with a 5-minute auto power-off and approximately 8-hour recharge time to keep uptime high between shifts.
Specifications
| Specification |
PHT-6030 |
PHT-6080 |
| Probe Type |
Motorized UCI |
Motorized UCI |
| Probe Loading Force |
0.30 kgf (3N) |
0.80 kgf (8N) |
| Best Application |
Coating layer hardness; finished thin parts |
Smooth bearing-type surfaces |
| Surface Roughness Requirement |
Ra < 3.2 μm (Ra < 125 μin) |
Ra < 5 μm (Ra < 197 μin) |
| Probe Diameter |
46 mm |
46 mm |
| Probe Length |
198 mm |
198 mm |
| Oscillating Rod Diameter |
3.7 mm |
3.7 mm |
| Hardness Range (UCI) |
HRC: 20–70 / HRB: 41–99 / HV: 80–1599 / HB: 76–618 |
HRC: 20–70 / HRB: 41–99 / HV: 80–1599 / HB: 76–618 |
| Hardness Range (Leeb) |
HRC: 25–67 / HRB: 59–99 / HB: 85–651 / HV: 83–976 / Shore: 26–99 / Leeb: 170–960 HLD |
HRC: 25–67 / HRB: 59–99 / HB: 85–651 / HV: 83–976 / Shore: 26–99 / Leeb: 170–960 HLD |
| Tolerance |
±3.0% deviation of average from reference test block (min. 5 tests) |
±3.0% deviation of average from reference test block (min. 5 tests) |
| Minimum Sample Thickness |
2 mm (0.08") |
2 mm (0.08") |
| Minimum Sample Weight |
0.3 kg (0.66 lbs) |
0.3 kg (0.66 lbs) |
| Display |
Color LCD with backlight, adjustable brightness |
Color LCD with backlight, adjustable brightness |
| Data Memory |
2,000 measurement groups / 20 calibration groups |
2,000 measurement groups / 20 calibration groups |
| Data Output |
USB (cable included) |
USB (cable included) |
| Statistical Software |
Included — exportable to Word/Excel |
Included — exportable to Word/Excel |
| Language Options |
English, German, Chinese, Spanish, and more |
English, German, Chinese, Spanish, and more |
| Power Supply |
Rechargeable lithium battery — 4.2V, 4800mAh |
Rechargeable lithium battery — 4.2V, 4800mAh |
| Battery Life |
~6 hours (no backlight) |
~6 hours (no backlight) |
| Recharge Time |
~8 hours |
~8 hours |
| Auto Power Off |
5 minutes |
5 minutes |
| Unit Dimensions |
7.0 × 3.1 × 1.1" (160 × 80 × 30 mm) |
7.0 × 3.1 × 1.1" (160 × 80 × 30 mm) |
| Net Weight (with probe) |
2 lbs |
2 lbs |
| Gross Weight |
12 lbs |
12 lbs |
Items Included
- Phase2+ PHT-6030 or PHT-6080 base instrument
- Motorized UCI probe (0.30 kgf for PHT-6030 / 0.80 kgf for PHT-6080)
- USB cable (for data output and battery charging)
- Statistical software (compatible with Word and Excel)
- Calibrated hardness test block
- Carrying case
- Operation manual
