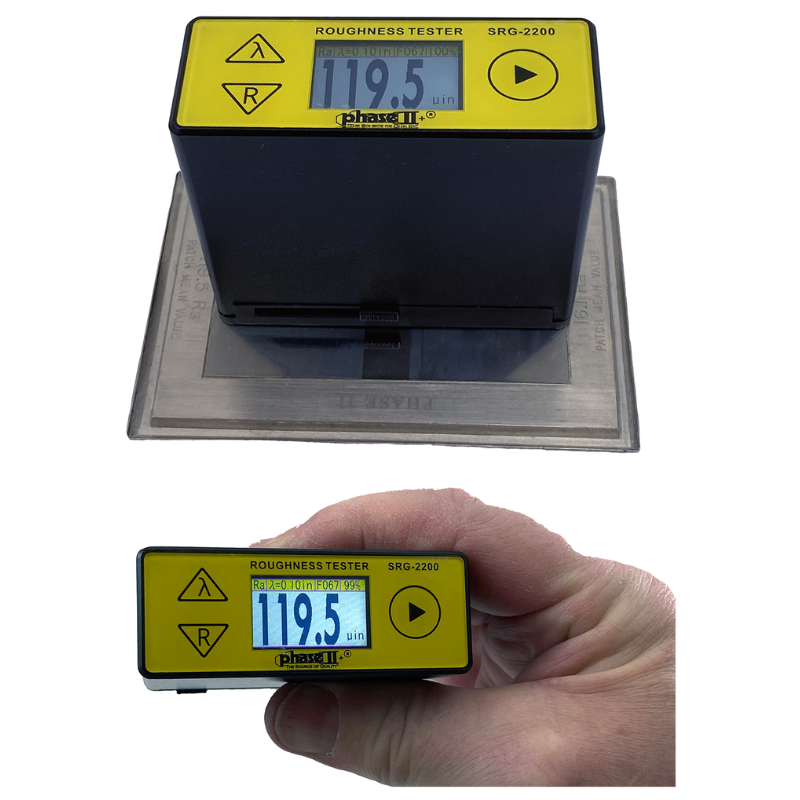

Phase2+ SRG-2200 Handheld Surface Roughness Tester

by Phase2+
$1,456.88
Have a question?

Call/Text Gustavo before you buy.

I personally review every order and I'm happy to answer questions about compatibility, specs, or lead times. Don't guess - let's get it right the first time.

Gustavo
Founder, Precision Engineering Supply
Available Mon – Fri
Authorized Dealer
100% Authentic Products
Fast Shipping
Orders ship same day
Easy Returns
30-day return policy
Secure Checkout
SSL encrypted payment
  • Measures Ra, Rz, Rq (Rms), and Rt roughness parameters
  • Operates on flat surfaces, outer cylinders, cones, grooves, and recesses
  • Built-in calibration
  • Bluetooth wireless data output
  • 1.14-inch IPS TFT color display
  • Compact skid-type profilometer at 0.5 lbs

Phase2+ SRG-2200 Handheld Surface Roughness Tester

$1,456.88

Description

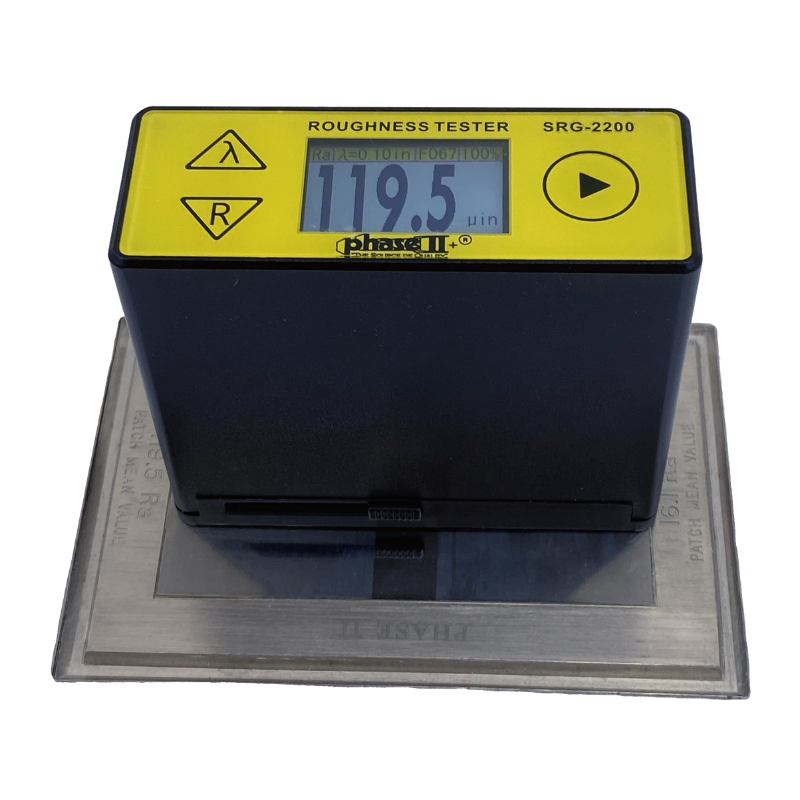

Phase2+ SRG-2200 Handheld Surface Roughness Tester

The Phase2+ SRG-2200 is a next-generation mini surface roughness tester developed by the Phase II Metrology Group, featuring high accuracy, a wide range of application, simple operation, and stable performance. It is widely applicable in surface roughness testing of all kinds of metals and non-metals.

The 1.14-inch IPS TFT display presents the choice of roughness parameter - Ra, Rms (Rq), Rt, and Rz - at the touch of a button, combined with the selected cutoff length. External calibration of the surface roughness value is possible by means of a built-in calibration feature, which makes adjustment of this instrument very easy. Data output via Bluetooth makes saving surface roughness results fast and easy.

The SRG-2200 is a skidded tester, meaning the stylus must move in a straight line and it is not intended to measure across a curved surface. Within that constraint, the instrument operates on various surface types - not only flat, but also outer cylinder, outer cone, grooves, and recesses greater than 80 x 30 mm - making it suitable for inspection departments, quality control, shop floor use during machining, assembly operations, and on-site testing. The SRG-2200 stores up to 500 values and transmits data via Bluetooth, runs on a single AA battery, and weighs just 0.5 lbs (220 g). Data output software is included.



Key Features

  • Bluetooth Data Output with 500-Value Memory - Wirelessly transmits stored roughness measurements to a PC via Bluetooth, with 500-value on-board memory for comprehensive data capture across extended inspection runs without requiring a cable connection.
  • 1.14-Inch IPS TFT Color Display - A bright, high-contrast color display presents roughness parameter values, selected cutoff length, and measurement results clearly at the touch of a button, improving readability on the shop floor.
  • Four Roughness Parameters: Ra, Rz, Rq, Rt - Measures and displays all four standard surface roughness parameters - Ra (arithmetic average), Rz (mean roughness depth per DIN), Rq / Rms (root mean square per ISO), and Rt (total roughness height) selectable on demand.
  • Built-In Calibration Feature - Allows external calibration of the surface roughness value directly on the instrument without requiring a separate calibration device or returning the unit to a laboratory, keeping the tester accurate and ready for use in any environment.
  • Multi-Surface Capability - Operates on flat surfaces, outer cylinders, outer cones, grooves, and recesses greater than 80 x 30 mm, extending its usefulness beyond flat workpieces to a broad range of machined part geometries encountered in production and inspection environments.
  • Compact and Lightweight with Three Cutoff Length Selections - At 0.5 lbs (220 g) and running on a single AA battery, the SRG-2200 is a highly portable skid-type profilometer with selectable cutoff lengths of 0.25 mm, 0.80 mm, and 2.50 mm to match ISO and DIN measurement requirements.



Specifications

Model Number SRG-2200
Manufacturer Phase2+
Instrument Type Skid-type handheld surface roughness tester / profilometer
Roughness Parameters Ra, Rms (Rq) per ISO; Rz per DIN; Rt
Measuring Range (Ra) 0.05 – 10.0 µm
Measuring Range (Rz) 0.1 – 50 µm
Measuring Range (Rms / Rq) 0.05 – 10.0 µm
Measuring Range (Rt) 0.1 – 50 µm
Accuracy +/- 12% of actual value
Display 1.14 in. (29 mm) IPS TFT color screen
Cutoff Lengths 0.25 mm, 0.80 mm, 2.50 mm (0.01 in., 0.03 in., 0.10 in.)
Tracing Length 0.23 in. (6 mm)
Evaluation Length 1.25 mm, 4.0 mm, or 5.0 mm
Tracing Speed 0.04 in./sec (1.0 mm/sec)
Filter Gauss Digital
Stylus (Tracer Tip) Diamond, radius 10 µm +/- 2.5 µm
Pickup Type Piezoelectric
Contact Force on Probe Less than 0.5 N
Static Measuring Force Less than 0.16 N
Memory 500 values
Data Output Bluetooth wireless
Power Supply 1 x 1.5V AA alkaline battery
Operating Temperature 32 – 104 degrees F (0 – 40 degrees C)
Dimensions 73 x 28 x 62 mm
Weight 0.5 lbs (220 g)
Applicable Surfaces Flat, outer cylinder, outer cone, grooves, recesses greater than 80 x 30 mm
Tester Style Skidded (stylus must travel in a straight line)



Items Included

  • SRG-2200 Handheld Surface Roughness Tester

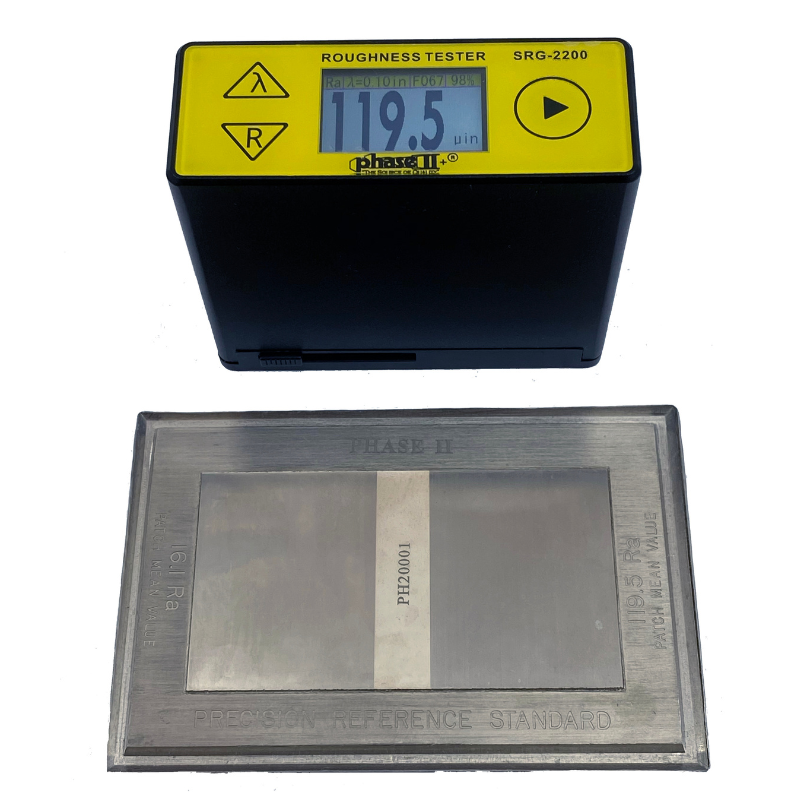

  • Surface roughness reference standard
  • Bluetooth data output software (PC compatible)
  • Compact carrying case
  • Instruction manual



INSIZE ISHW-L20B Webster Hardness Tester ManualPhase2+ SRG-2200 Handheld Surface Roughness Tester User Manual

INSIZE ISHW-L20B Webster Hardness Tester ManualPhase2+ SRG-2200 Handheld Surface Roughness Tester Catalog
