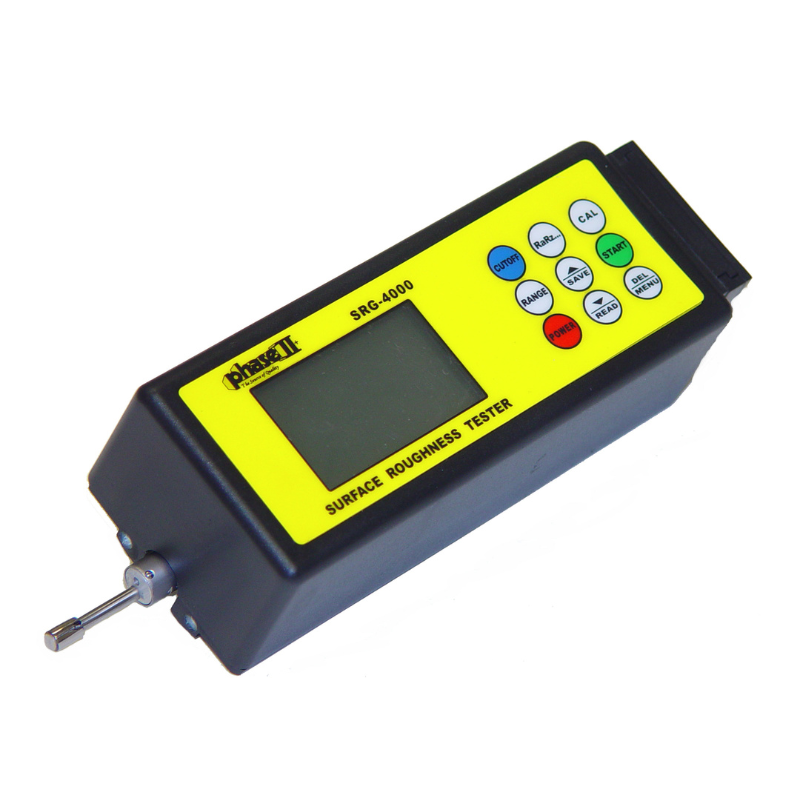

Phase2+ SRG-4000 Handheld Surface Roughness Tester w/ External Stylus
The Phase2+ SRG-4000 is a state-of-the-art handheld surface roughness tester and profilometer engineered specifically for the shop floor environment, combining high measurement accuracy, a full menu-driven feature set, and an external stylus design that significantly expands measurement versatility compared to integrated-stylus instruments. Designed with the shop environment in mind, the SRG-4000 is distinguished by a high level of accuracy, multiple parameters, and simplicity of operation, delivering extremely sensitive and highly accurate readings across the four standard surface roughness parameters Ra, Rq (Rms), Rt, and Rz.
The diamond stylus is hypersensitive and sophisticated enough to allow for a 0.001 µm micron display resolution. The display range covers Ra and Rq from 0.005 µm up to 16 µm and Rz and Rt from 0.02 µm up to 160 µm, with a pickup measuring range of +/- 80 µm and a 5 µm diamond tip stylus at a 90-degree sensor angle with 4 mN contact force.
The SRG-4000 utilizes an easy interface to allow changes of in/mm (µin/µm), cutoff length, sampling length, parameters, stylus position level, digital filters, and more. Display features include a stylus position sensor, battery level indicator, direct display of parameters, direct printing capability, and auto-off with auto store. The instrument features a menu-driven operating system, inside and outside diameter measurement capability, a stylus position indicator, RS-232 output to a printer or PC, and extended memory functions. Conformance standards include ISO, DIN, JIS, and ANSI. Optional accessories include a 2 µm stylus, extension rod, precision stand, and NIST-certified surface roughness standard.
Key Features
-
External Stylus Design for Maximum Measurement Access - The detachable external stylus assembly allows the sensor to reach surfaces, bores, grooves, and part features that are inaccessible to integrated-stylus testers, extending measurement capability across a broader range of part geometries and orientations.
-
0.001 µm Display Resolution with 5 µm Diamond Stylus - The hypersensitive diamond tip stylus and high-resolution electronics deliver measurement display resolution of 0.001 µm across a pickup measuring range of +/- 80 µm, providing the sensitivity required for precision-machined surface evaluation.
-
Four Roughness Parameters: Ra, Rq (Rms), Rz, Rt - Measures and displays all four standard surface roughness parameters selectable through the menu-driven interface, covering arithmetic average, root mean square, mean roughness depth, and total roughness height.
-
RS-232 Output with Extended Memory and Direct Printing - Outputs data directly to a printer or PC via RS-232, with extended on-board memory for storing multiple measurement results, and supports direct printing from the instrument without PC connection.
-
Comprehensive Menu-Driven Interface - Operator-selectable settings include measurement units (µm / µin), cutoff length, sampling length, roughness parameter, stylus position level, and digital filter - all accessible through a straightforward menu without requiring complex configuration procedures.
-
Multi-Standard Compliance: ISO, DIN, JIS, ANSI - Conforms to all four major international surface roughness measurement standards with both metric and imperial measurement system options, making the SRG-4000 suitable for global manufacturing, quality assurance, and supplier inspection requirements.
Specifications
| Model Number |
SRG-4000 |
| Manufacturer |
Phase2+ |
| Instrument Type |
Handheld surface roughness tester / profilometer with external stylus |
| Roughness Parameters |
Ra, Rz, Rq (Rms), Rt |
| Assessed Profiles |
Primary profile (P), Roughness profile (R), tp curve (Mr) |
| Display Range (Ra, Rq) |
0.005 µm – 16 µm |
| Display Range (Rz, Rt) |
0.02 µm – 160 µm |
| Pickup Measuring Range |
+/- 80 µm |
| Display Resolution |
0.001 µm (at +/- 20 µm range) |
| Diamond Stylus Tip Radius |
5 µm |
| Stylus Sensor Angle |
90 degrees |
| Contact Force |
4 mN (0.4 gf) |
| Measuring System |
Metric (µm) and Imperial (µin) - selectable |
| Conformance Standards |
ISO, DIN, JIS, ANSI |
| Data Output |
RS-232 to printer or PC |
| Display |
Large character LCD with stylus position sensor and battery indicator |
| Display Features |
Stylus position sensor, battery level indicator, direct display, direct printing, auto-off with auto store |
| Interface |
Menu-driven with selectable cutoff length, sampling length, parameter, stylus level, and digital filter |
| Dimensions |
139 mm H x 48 mm D x 56 mm W |
| Optional Accessories |
2 µm stylus, extension rod, precision stand, NIST-certified roughness standard |
Items Included
- SRG-4000 Handheld Surface Roughness Tester
- External stylus assembly
- Surface roughness reference standard
- Compact durable carrying case
- Instruction manual
