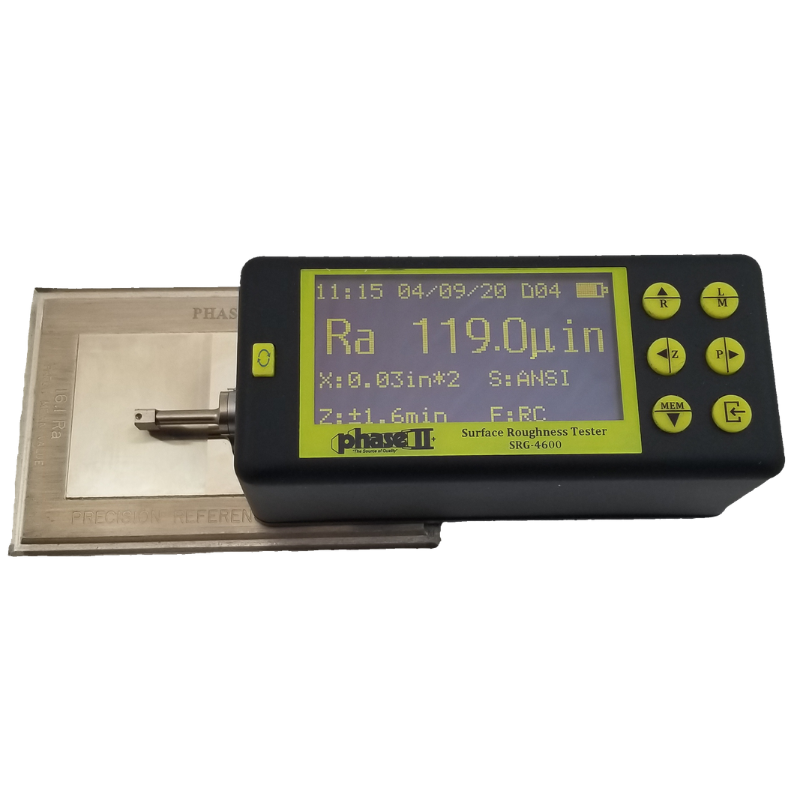

Phase2+ SRG-4600 Handheld Surface Roughness Gauge w/External Stylus

by Phase2+
Have a question?

Call/Text Gustavo before you buy.

I personally review every order and I'm happy to answer questions about compatibility, specs, or lead times. Don't guess - let's get it right the first time.

Gustavo
Founder, Precision Engineering Supply
Available Mon – Fri
Authorized Dealer
100% Authentic Products
Fast Shipping
Most Products Ship Same day
Easy Returns
30-Day Return Policy (Excludes Made To Order Items)
Secure Checkout
SSL Encrypted Payment
$2,023.88
  • Full ISO, DIN, JIS, and ANSI compliance
  • Measures nine roughness parameters - Ra, Rz, Rq, Rt, Rs, Rsm, Rmax, Rpc, and Rmr
  • Measures flat surfaces, inside and outside diameters, and grooves
  • External stylus
  • Rechargeable Li-Ion battery
  • Bluetooth wireless auto-start and USB output

Phase2+ SRG-4600 Handheld Surface Roughness Gauge w/External Stylus

$2,023.88

Description

Phase2+ SRG-4600 Handheld Surface Roughness Gauge w/External Stylus

The Phase2+ SRG-4600 is the flagship portable surface roughness tester in the Phase II lineup, delivering the highest level of confidence for production, shop floor, and QC lab surface finish measurement with extended memory, dual-mode output, and a broad suite of updated useful functions. As the most capable model in the SRG series, the SRG-4600 builds on the proven SRG-4000 platform by adding Bluetooth wireless auto-start output as a standard feature alongside USB, expanding the roughness parameter set from four to nine, and upgrading to a rechargeable lithium-ion battery for sustained use without battery replacement.

The SRG-4600 provides extremely sensitive and highly accurate readings via nine roughness parameters - Ra, Rz, Rq (Rms), Rt, Rs, Rsm, Rmax, Rpc, and Rmr - with a hypersensitive 5 µm diamond tip stylus delivering 0.001 µm display resolution. The measuring range covers Ra and Rq from 0.01 to 40 µm and Rz, Rt, and Rm from 0.02 to 160 µm, with measuring accuracy of +/- 10% and repeatability of less than or equal to 6%.

The easy interface allows operator-selectable changes to measurement units, cutoff length, sampling length, parameter, stylus position level, and digital filter, with results displayed as large characters on the LCD screen for easy recognition. The SRG-4600 measures flat surfaces, inside and outside diameters, and grooves and recessions wider than 4 mm (0.16 in.). The instrument ships with a calibrated reference standard with support plate, Bluetooth auto-start unit, leveling plate, stylus protector, AC adapter, and rugged carry case. An optional micro printer, precision stand, and PC software are available as accessories, along with a full range of application-specific stylus options including deep groove, small hole, curved surface, and stylus extensions.



Key Features

  • Nine Roughness Parameters with 0.001 µm Resolution - Measures Ra, Rz, Rq (Rms), Rt, Rs, Rsm, Rmax, Rpc, and Rmr with a 5 µm diamond tip inductance-type stylus, delivering resolution of 0.001 µm and accuracy within +/- 10% across the full measurement range.
  • Bluetooth Wireless Auto-Start Standard - Bluetooth auto-start connectivity is included as standard, enabling wireless data transfer to a PC or compatible device without manual triggering - in addition to the USB output also provided.
  • External Stylus Design with Wide Geometry Coverage - The external stylus assembly measures flat surfaces, inside and outside diameters, and grooves and recessions wider than 4 mm, with optional application-specific stylus tips available for deep grooves, small holes, curved surfaces, and extended reach applications.
  • Four Selectable Digital Filters - Supports RC, PC-RC, Gaussian, and D-P filter types, providing the flexibility to match measurement filter selection to international standards and specific surface evaluation requirements.
  • Rechargeable Li-Ion Battery with Auto Shut-Off - Powered by a built-in rechargeable lithium-ion battery for extended untethered use, with automatic shut-off to preserve charge, eliminating the cost and inconvenience of disposable battery replacement.
  • Full ISO, DIN, JIS, and ANSI Standard Compliance - Supports all four major international roughness standards with switchable metric and imperial measurement units, making the SRG-4600 suitable for global manufacturing, multi-standard inspection workflows, and supplier qualification environments.



Specifications

Model Number SRG-4600
Manufacturer Phase2+
Instrument Type Handheld surface roughness gauge / profilometer with external stylus
Roughness Parameters Ra, Rz, Rq (Rms), Rt, Rs, Rsm, Rmax, Rpc, Rmr
Roughness Standards ISO, DIN, JIS, ANSI
Measuring Range (Ra, Rq) 0.01 – 40 µm
Measuring Range (Rz, Rt, Rm) 0.02 – 160 µm
Display Resolution 0.01 µm (+/-20 µm range) / 0.02 µm (+/-40 µm range) / 0.04 µm (+/-80 µm range)
Measuring Accuracy +/- 10%
Repeatability Less than or equal to 6%
Stylus Tip Diamond, 5 µm radius
Sensor Type Inductance type
Pickup Force Less than 4 mN
Maximum Drive Range 0.7 in. (17.5 mm)
Cutoff Lengths 0.25 mm, 0.80 mm, 2.50 mm (0.009 / 0.03 / 0.09 in.)
Tracing Speeds 1.0 mm/s (2.5 mm sampling) / 0.5 mm/s (0.8 mm sampling) / 0.135 mm/s (0.25 mm sampling)
Filters RC, PC-RC, Gaussian, D-P
Surface Types Flat, inside and outside diameters, grooves and recessions wider than 4 mm (0.16 in.)
Data Output USB and Bluetooth wireless auto-start (both standard)
Display Large character LCD
Measuring Units µm (metric) and µin (imperial) — selectable
Power Supply Rechargeable Li-Ion battery
Auto Shut-Off Yes
Operating Temperature 41 - 104 degrees F (5 – 40 degrees C)
Dimensions 119 x 47 x 65 mm
Weight 0.97 lbs (440 g)
Optional Accessories Micro printer, precision stand, PC software, deep groove stylus, small hole stylus, curved surface stylus, 2 in. and 5 in. stylus extensions



Items Included

  • SRG-4600 Handheld Surface Roughness Gauge
  • External stylus assembly (5 µm diamond tip)
  • Calibrated reference standard with support plate
  • Bluetooth auto-start unit
  • Leveling plate
  • Stylus protector
  • AC adapter / battery charger
  • Rugged carry case
  • Instruction manual
