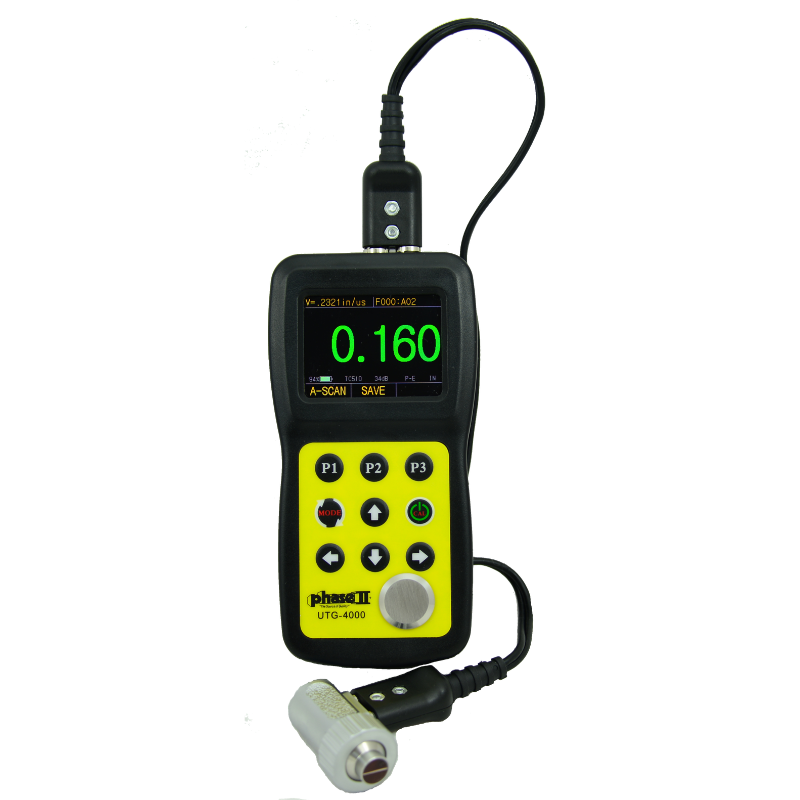

Phase2+ UTG-4000 Ultrasonic Thickness Gauge w/ A&B Scan

Phase2+ UTG-4000 Ultrasonic Thickness Gauge w/A&B Scan

by Phase2+
Have a question?

Call/Text Gustavo before you buy.

I personally review every order and I'm happy to answer questions about compatibility, specs, or lead times. Don't guess - let's get it right the first time.

Call / Text 617-398-7852 Email support@precisionengineeringsupply.com
Gustavo
Founder, Precision Engineering Supply
Available Mon – Fri
Authorized Dealer
100% Authentic Products
Fast Shipping
Most Products Ship Same Day
Easy Returns
30-Day Return Policy (Excludes Made To Order Items)
Secure Checkout
SSL Encrypted Payment
$1,850.94
  • Color A-Scan & Time-Based B-Scan for Verification Confidence
  • Multiple Display Modes for Advanced Analysis
  • Selectable Update Rate & Auto V-Path Correction
  • GO/NO GO Alarm with Dynamic Color Waveform Change
  • Thru-Coating Measurement (Echo-Echo Mode)
  • Wide Measuring Range: 0.02"–20.0"
Customers rate us 4.5/5 based on 49 reviews.

Phase2+ UTG-4000 Ultrasonic Thickness Gauge w/A&B Scan

$1,850.94

Description

Phase2+ UTG-4000 Ultrasonic Thickness Gauge w/A&B Scan

The Phase2+ UTG-4000 is a professional-grade, handheld ultrasonic thickness gauge engineered for demanding NDT applications where ordinary gauges fall short. Utilizing color waveform A-scan and time-based B-scan for absolute correctness, this state-of-the-art instrument is packed with useful features that allow operators to be fully confident in displayed values on the most critical applications.

This multi-functional gauge offers everything from basic measurement and scan mode with Min/Max viewing, to GO/NO GO display, adjustable sound velocity, and thru-coating capabilities - consolidating what would otherwise require multiple instruments into a single, field-ready device. Operating on both pulse/echo and echo/echo methods with a dual element probe, the UTG-4000 is built to handle the full spectrum of thickness testing scenarios with precision and confidence.

The UTG-4000 displays readings accurately in either inches or millimeters after a simple calibration to a known thickness or sound velocity, and its 2.4" color screen makes waveform data easy to read in any lighting condition. Whether you're inspecting pipeline corrosion, structural steel, aerospace components, or coated assemblies, the UTG-4000 delivers the depth of measurement capability that quality and inspection professionals depend on.



Key Features

  • Color A-Scan & Time-Based B-Scan for Verification Confidence - Live color waveform A-scan and time-based B-scan display real-time signal data, giving operators the visual feedback needed to validate readings on the most demanding and critical measurement applications.
  • Thru-Coating Measurement (Echo-Echo Mode) - Echo-Echo mode eliminates the need to remove paint or protective coatings, measuring substrate thickness in the 0.09"–0.984" range without surface preparation or disruption to protective layers.
  • Wide Measuring Range: 0.02"–20.0" - Standard pulse/echo mode covers 0.02" to 20.0" dependent on probe and material, accommodating everything from thin-walled components to heavy structural members across metals, plastics, ceramics, and glass.
  • GO/NO GO Alarm with Dynamic Color Waveform Change - Configurable Min/Max alarm thresholds trigger both an audible alert and a dynamic waveform color change on-screen, enabling fast pass/fail decisions during scanning or high-volume inspection workflows.
  • Multiple Display Modes for Advanced Analysis - Selectable display modes include digital thickness readout, A-scan/waveform, Min/Max capture, B-scan, and D-Value/Reduction differential mode, providing the right data view for every inspection scenario.
  • Selectable Update Rate & Auto V-Path Correction - Update rate is user-selectable at 4Hz, 8Hz, or 16Hz to match scanning speed requirements, while automatic V-path correction ensures measurement accuracy across the full range without manual adjustment.



Specifications

Specification Details
Model UTG-4000
Operating Principle Ultrasonic Pulse/Echo & Echo/Echo — Dual Element Probe
Display 2.4" Color Screen
Resolution 0.001" / 0.01" / 0.01 mm (selectable)
Measuring Range – Standard Mode 0.02"–20.0" (10–145 mm), dependent on probe & material
Measuring Range – Thru-Coating (E-E) 0.09"–0.984"
Repeatability ±0.001" (±0.05 mm)
Measuring Error ±0.001" (up to 0.984") / ±0.007" (up to 3.03") / ±0.019" (4" and above)
Sound Velocity Range 0.0197–0.3937 in/µs (500–9,999 m/s)
Display Modes Digital Readout, A-Scan/Waveform, B-Scan, Min/Max Capture, D-Value/Reduction
V-Path Correction Automatic
Update Rate Selectable: 4 Hz, 8 Hz, 16 Hz
Refresh Rate 4 per second
Alarm Min/Max with dynamic waveform color change
Operating Temperature 14°F–122°F (-10°C to +50°C)
Auto Shut-Off After 5 minutes of inactivity
Power Supply 2 × AA Alkaline Batteries (3V)
Operating Time Approx. 36 hours
Dimensions 6.02" × 2.99" × 1.45" (153 × 76 × 37 mm)
Weight 9.9 oz (280 g)
Calibration NIST Traceable Certificate of Calibration Included



Items Included

  • Phase2+ UTG-4000 Base Instrument
  • Dual Element Probe
  • Certificate of Calibration (NIST Traceable)
  • Operation Manual
  • Custom Carry Case
