R20-MCK-B Fixture Kit

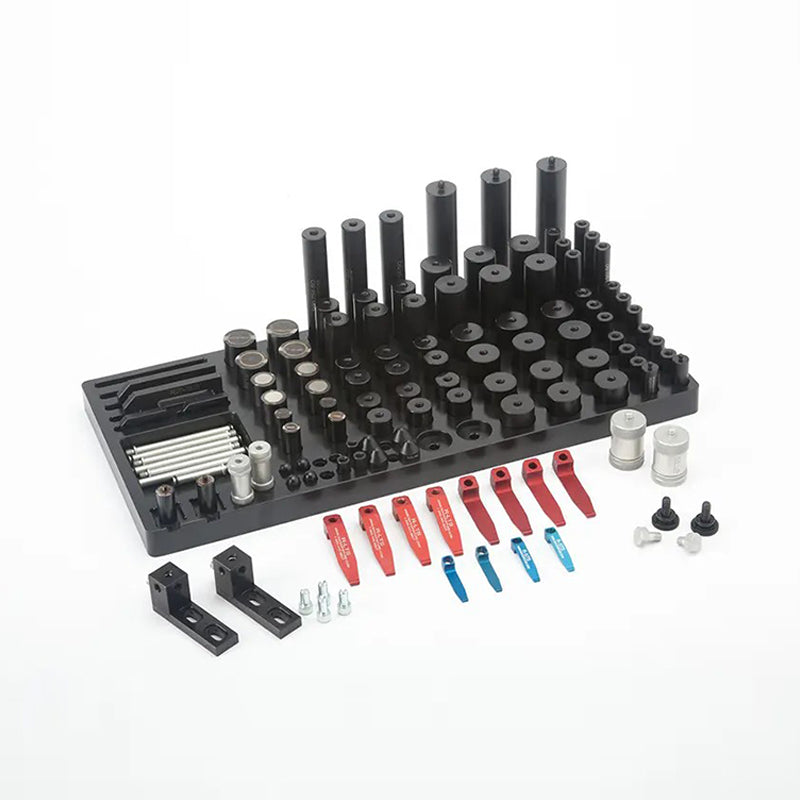

1/4-20 Threaded Magnetic Clamping Kit B with Total Component Count: 111
Magnetic Clamping Kit B with 1/4-20 thread. Total Component Count: 111
(4) R20-50-M: .50” Dia. Magnet
(4) R20-75-M: .75” Dia. Magnet
(4) R20-1-M: 1” Dia. Magnet
(2) R20-50-PM: .50” Dia. Pin Magnet
(3) R20-37550-SO: .375” Dia. x .50” Standoff
(6) R20-5075-SO: .50” Dia. x .75” Standoff
(6) R20-501-SO: .50” Dia. x 1” Standoff
(6) R20-502-SO: .50” Dia. x 2” Standoff
(3) R20-7550-SO: .75” Dia. x .50′ Standoff
(6) R20-7575-SO: .75” Dia. x .75” Standoff
(6) R20-751-SO: .75” Dia. x 1” Standoff
(6) R20-752-SO: .75” Dia. x 2” Standoff
(3) R20-754-SO: .75” Dia. x 4” Standoff
(6) R20-175-SO: 1” Dia. x .75” Standoff
(6) R20-11-SO: 1” Dia. x 1” Standoff
(6) R20-12-SO: 1” Dia. x 2” Standoff
(3) R20-14-SO: 1” Dia. x 4” Standoff
(4) R20-STS-15: Small Tension Spring – 1.5 Post
(8) R20-LTS-3: Large Tension Spring – 3” Post
(4) R20-NC: Nylon Cone
(4) R20-SRP: Steel Resting Pin
(2) R20-50-JS: .50” Dia. Jackstand
(2) R20-1-JS: 1” Dia. Jackstand
(2) R20-MSLD: Mini Slide Base
(2) R20-SLD: Slide Base
(2) R20-LB: Locating Block w/ Base
(1) R20-SCT: 1/4-20 Small Component Tray
Specifications
Application - CMM
Components - 27
Kit Type - Magnetic Clamping Kits
Thread Type - 1/4-20 Thread
