Rayco Fixtures R20-VCK-B Fixture Kit

R20-VCK-B Fixture Kit

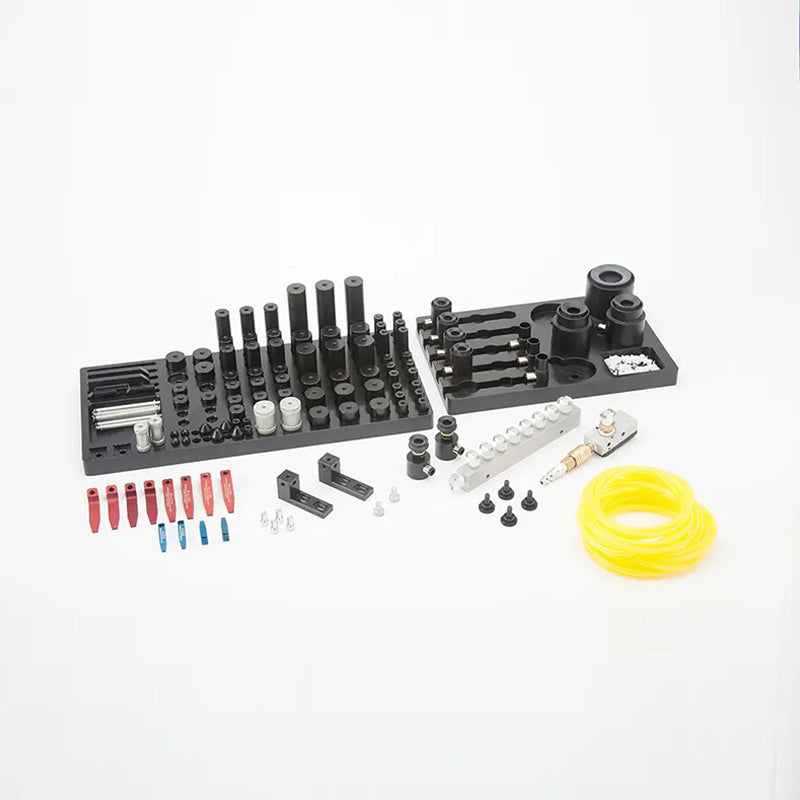

1/4-20 Threaded Vacuum Clamping Kit B with Total Component Count: 141

Vacuum Component Kit B with 1/4-20 thread. Total Component Count: 141
(4) R20-STS-15: Small Tension Spring w/ 1.5” Post
(8) R20-LTS-3: Large Tension Spring w/ 3” Post
(2) R20-50-JS: 1/2” Dia. Small Jackstand
(2) R20-1-JS: 1” Dia. Large Jackstand
(2) R20-SLD: Slide Base
(2) R20-MSLD: Mini Slide Base
(4) R20-NC: Nylon Cone
(4) R20-SRP: Steel Resting Pin
(2) R20-LB: Locating Block w/ Base
(3) R20-10-SC: 10mm Suction Cup w/ Housing
(4) R20-20-SC: 20mm Suction Cup w/ Housing
(2) R20-30-SC: 30mm Suction Cup w/ Housing
(1) R20-50-SC: 50mm Suction Cup w/ Housing
(2) R20-20-EXSC: 20mm Exposed Suction Cup
(1) R-9P-M: 9-Port Manifold
(1) R-X10L-VP: Vacuum Pump Assembly
(20) R-12-VH: Vacuum Hose 12″ L.
(1) R-PMCD2202: Straight Hose Barb Connector
(8) R-PMC23028: Elbow connector
(3) R20-37550-SO: 3/8” Dia. x .50” Standoff
(6) R20-5075-SO: 1/2” Dia. x 3/4” Standoff
(6) R20-501-SO: 1/2” Dia. x 1” Standoff
(6) R20-502-SO: 1/2” Dia. x 2” Standoff
(3) R20-7550-SO: 3/4” Dia. x 1/2” Standoff
(6) R20-7575-SO: 3/4” Dia. x 3/4” Standoff
(6) R20-751-SO: 3/4” Dia. x 1” Standoff
(6) R20-752-SO: 3/4” Dia. x 2” Standoff
(3) R20-753-SO: 3/4” Dia. x 3” Standoff
(6) R20-175-SO: 1” Dia. x 3/4” Standoff
(6) R20-11-SO: 1” Dia. x 1” Standoff
(6) R20-12-SO: 1” Dia. x 2” Standoff
(3) R20-14-SO: 1” Dia. x 4” Standoff
(1) R20-SCT: 1/4-20 Small Component Tray
(1) R-VCT: Vacuum Component Tray

Specifications

Application - CMM
Components - 34
Kit Type - Vacuum Clamping Kits
Thread Type - 1/4-20 Thread
