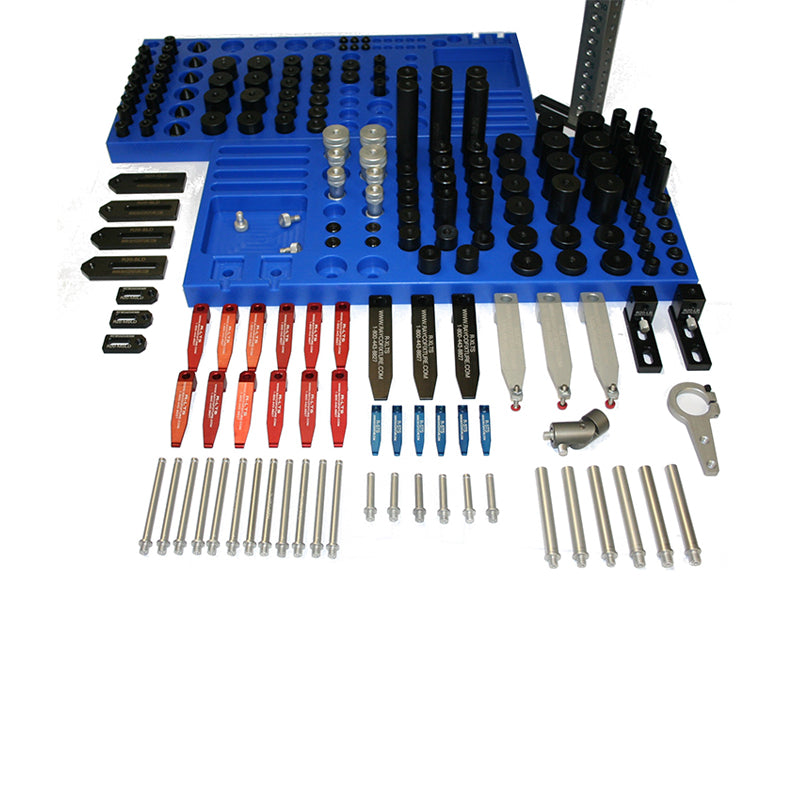

R6-CK-C Fixture Kit
M6 threaded Kit C with Total Component Count: 159
Clamping Kit C with M6 thread. Total Component Count: 160
(6) R6-910-SO: 9mm Dia. x 10mm Standoff
(4) R6-1310-SO: 13mm Dia. x 10mm Standoff
(8) R6-1320-SO: 13mm Dia. x 20mm Standoff
(8) R6-1325-SO: 13mm Dia. x 25mm Standoff
(8) R6-1350-SO: 13mm Dia. x 50mm Standoff
(4) R6-1910-SO: 19mm Dia. x 10mm Standoff
(8) R6-1920-SO: 19mm Dia. x 20mm Standoff
(8) R6-1925-SO: 19mm Dia. x 25mm Standoff
(8) R6-1950-SO: 19mm Dia. x 50mm Standoff
(6) R6-19100-SO: 19mm Dia. x 100mm Standoff
(8) R6-2520-SO: 25mm Dia. x 20mm Standoff
(8) R6-2525-SO: 25mm Dia. x 25mm Standoff
(8) R6-2550-SO: 25mm Dia. x 50mm Standoff
(6) R6-25100-SO: 25mm Dia. x 100mm Standoff
(4) R6-1325-PSO: 13mm Dia. x 25mm Pin Standoff
(2) R6-1920-PSO: 19mm Dia. x 20mm Pin Standoff
(6) R6-STS-38: Small Tension Spring with 38mm Post
(12) R6-LTS-75: Large Tension Spring with 75mm Post
(3) R6-XLTS: X-Large Tension Spring with Post
(3) R6-XLTSP: X-Large Tension Spring with Plunger with Post
(1) R6-25-TSB: 25mm Dia. Tension Spring Bracket
(6) R6-NC: Nylon Cone in M6 thread
(6) R6-SRP: Steel Resting Pin
(1) R6-APJ: Adjustable Pivot Joint
(3) R6-13-JS: 13mm Dia. Jackstand
(3) R6-25-JS: 25mm Dia. Jackstand
(3) R6-MSLD: Mini Slide base
(4) R6-SLD: Slide Base
(2) R6-LB: Locating Block
(1) R6-25300-MT4: 25mm sq. x 300mm Mini Tower
(2) R6-SCT: M6 Small Component Tray (Black)
Specifications
Application - CMM
Components - 31
Kit Type - Clamping Kits
Thread Type - M6 Thread
