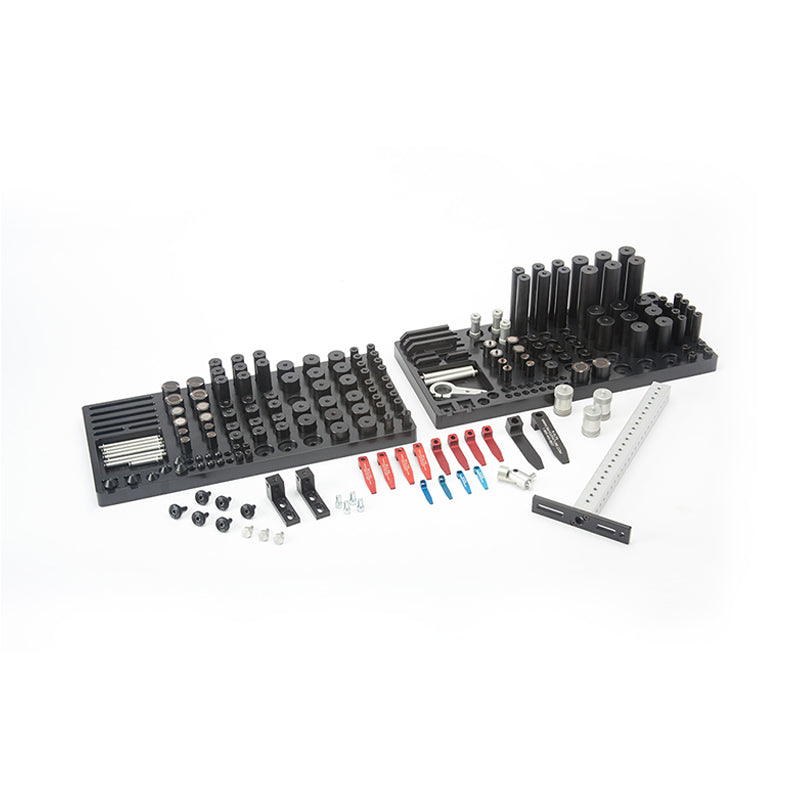

Rayco Fixtures R6-MCK-C Fixture Kit
R6-MCK-C Fixture Kit
M6 Threaded Magnetic Clamping Kit C with Total Component Count: 163
(6) R6-13-M: 13mm dia Magnetic Standoff
(6) R6-19-M: 19mm dia Magnetic Standoff
(6) R6-25-M: 25mm dia Magnetic Standoff
(2) R6-13-PM: 13mm dia Magnetic Pin Standoff
(2) R6-19-PM: 19mm dia Magnetic Pin Standoff
(4) R6-910-SO: 9mm dia x 10mm Standoff
(4) R6-1310-SO: 13mm dia x 10mm Standoff
(8) R6-1320-SO: 13mm dia x 20mm Standoff
(8) R6-1325-SO: 13mm dia x 25mm Standoff
(8) R6-1350-SO: 13mm dia x 50mm Standoff
(4) R6-1910-SO: 19mm dia x 10mm Standoff
(8) R6-1920-SO: 19mm dia x 20mm Standoff
(8) R6-1925-SO: 19mm dia x 25mm Standoff
(8) R6-1950-SO: 19mm dia x 50mm Standoff
(6) R6-19100-SO: 19mm dia x 100mm Standoff
(8) R6-2520-SO: 25mm dia x 20mm Standoff
(8) R6-2525-SO: 25mm dia x 25mm Standoff
(8) R6-2550-SO: 25mm dia x 50mm Standoff
(6) R6-25100-SO: 25mm dia x 100mm Standoff
(4) R6-STS-38: Small Tension Spring (blue) w/ 38mm Post
(8) R6-LTS-75: Large Tension Spring (red) w/ 75mm Post
(2) R6-XLTS: Extra Large Tension Spring w/ 75mm Post
(1) R6-25-TSB: 25mm Dia. Tension Spring Bracket
(6) R6-NC: Nylon Cone
(6) R6-SRP: Steel Resting Pin
(1) R6-APJ: Adjustable Pivot Joint
(3) R6-13-JS: 13mm dia. Jackstand
(3) R6-25-JS: 25mm dia. Jackstand
(3) R6-MSLD: Mini Slide Base – 35mm L
(3) R6-SLD: Slide Base – 75mm L
(2) R6-LB: Locating Block w/ Base
(1) R6-25300-MT4: 25mm x 300mm Tower
(2) R6-SCT: M6 Small Component Trays
Specifications
Application - CMM
Components - 33
Kit Type - Magnetic Clamping Kits
Thread Type - M6 Thread
