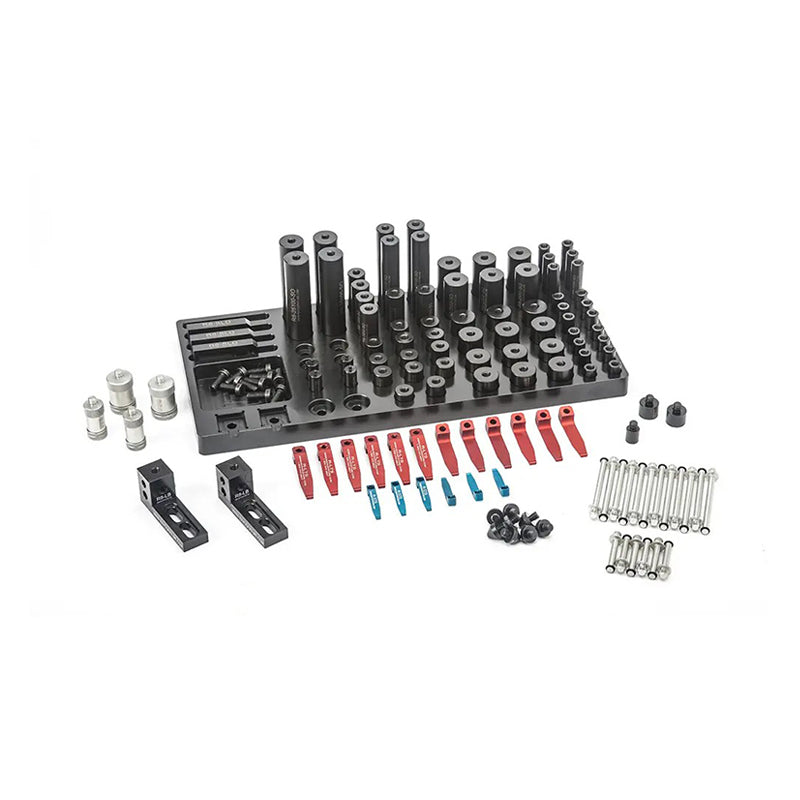

R8-CK-B Fixture Kit
M8 Threaded Kit B with Total Component Count: 108
Clamping Kit B with M8 thread. Total Component Count: 108
(3) R8-1315-SO: 13mm Dia. x 15mm Standoff
(6) R8-1320-SO: 13mm Dia. x 20mm Standoff
(6) R8-1325-SO: 13mm Dia. x 25mm Standoff
(6) R8-1350-SO: 13mm Dia. x 50mm Standoff
(3) R8-1915-SO: 19mm Dia. x 15mm Standoff
(6) R8-1920-SO: 19mm Dia. x 20mm Standoff
(6) R8-1925-SO: 19mm Dia. x 25mm Standoff
(6) R8-1950-SO: 19mm Dia. x 50mm Standoff
(4) R8-19100-SO: 19mm Dia. x 100mm Standoff
(6) R8-2520-SO: 25mm Dia. x 20mm Standoff
(6) R8-2525-SO: 25mm Dia. x 25mm Standoff
(6) R8-2550-SO: 25mm Dia. x 50mm Standoff
(4) R8-25100-SO: 25mm Dia. x 100mm Standoff
(4) R8-1325-PSO: 13mm Dia. x 25mm Pin Standoff
(6) R8-STS-25: Small Tension Spring
(12) R8-LTS-75: Large Tension Spring (75mm Post)
(4) R8-NC: Nylon Cone
(4) R8-SC: Steel Cone
(2) R8-19-JS: 19mm Dia. Small Jackstand
(2) R8-25-JS: 25mm Dia. Large Jackstand
(3) R8-SLD: M8 Slide Base
(2) R8-LB: Locating Block w/base
(1) R8-SCT: Small Component Tray
Specifications
Application - CMM
Components - 23
Kit Type - Clamping Kits
Thread Type - M8 Thread
