Rayco Fixtures R8-VCK-B Fixture Kit
R8-VCK-B Fixture Kit

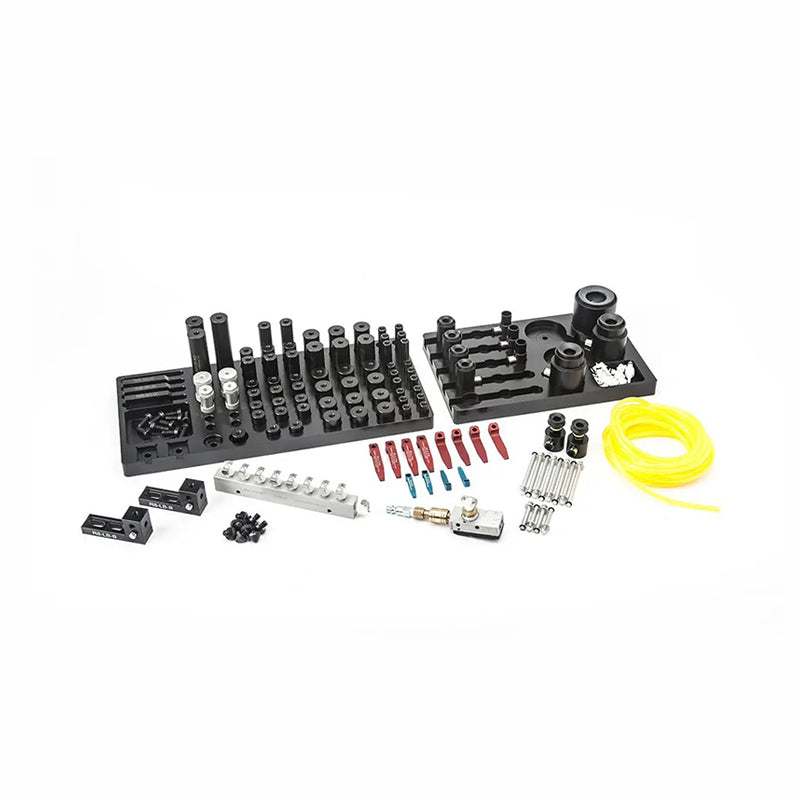

M8 Threaded Vacuum Clamping Kit B with Total Component Count: 139
Vacuum Component Kit with M8 Thread Total Component Count 139
(4) R8-STS-25 Small Tension Spring (25mm Post)
(8) R8-LTS-75 Large Tension Spring (75mm Post)
(2) R8-19-JS 19mm Dia. Small Jackstand
(2) R8-25-JS 25mm Dia. Large Jackstand
(3) R8-SLD M8 Slide Base
(4) R8-NC Nylon Cone
(4) R8-SC Steel Cone
(2) R8-LB Locating Block w/base
(3) R8-10-SC 10mm Suction Cup
(4) R8-20-SC 20mm Suction Cup
(2) R8-30-SC 30mm Suction Cup
(1) R8-50-SC 50mm Suction Cup
(2) R8-20-EXSC 20mm Exposed Suction Cup
(1) R-X10L-VP- Vacuum pump assembly
(1) R-9P-M 9 port manifold
(20) R-12-VH Vacuum hose 12″ length
(11) R-PMC2302 Elbow connectors
(1) R-PMCD2202 Straight hose barb connector
(6) R8-1320-SO 13mm Dia. x 20mm Standoff
(6) R8-1325-SO 13mm Dia. x 25mm Standoff
(6) R8-1350-SO 13mm Dia. x 50mm Standoff
(3) R8-1915-SO 19mm Dia. x 15mm Standoff
(6) R8-1920-SO 19mm Dia. x 20mm Standoff
(6) R8-1925-SO 19mm Dia. x 25mm Standoff
(6) R8-1950-SO 19mm Dia. x 50mm Standoff
(2) R8-1975-SO 19mm Dia. x 75mm Standoff
(6) R8-2520-SO 25mm Dia. x 20mm Standoff
(6) R8-2525-SO 25mm Dia. x 25mm Standoff
(6) R8-2550-SO 25mm Dia. x 50mm Standoff
(3) R8-25100-SO 25mm Dia. x 100mm Standoff
(1) R8-SCT M8 Small Component Tray
(1) R-VCT Vacuum Component Tray
Specifications
Application - CMM
Components - 32
Kit Type - Vacuum Clamping Kits
Thread Type - M8 Thread
