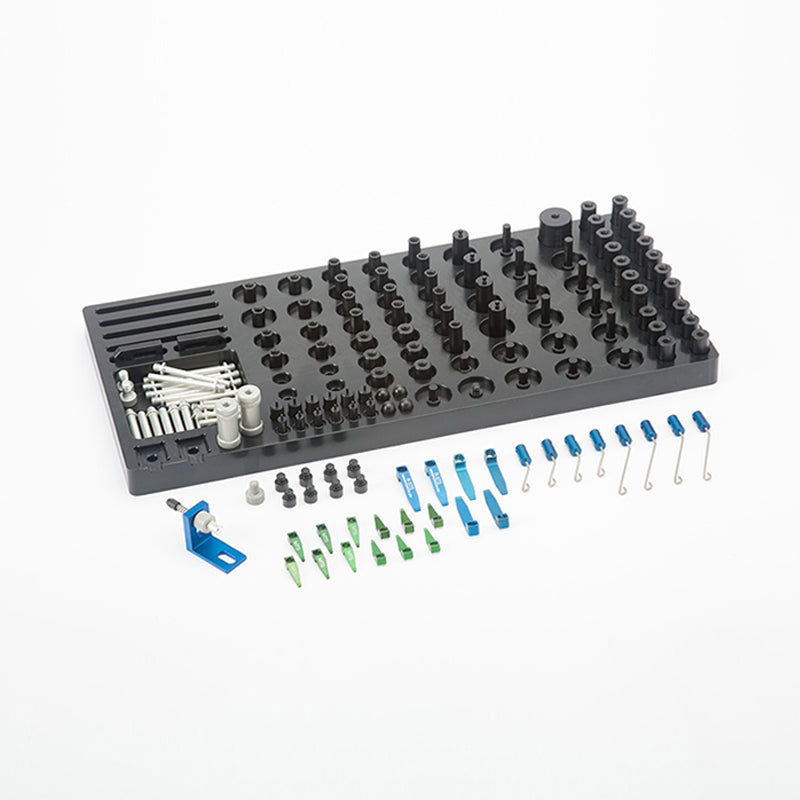

RA20-VK-C Fixture Kit
1/4-20 Threaded Vision Clamping Kit C with Total Component Count: 111
Vision Kit C with 1/4-20 thread. Total Component Count: 111
(8) R20-2550-SO: .25” Dia. x .50” Standoff
(8) R20-251-SO: .25” Dia. x 1.0” Standoff
(8) R20-37525-SO: .375” Dia. x .25” Standoff
(8) R20-37550-SO: .375” Dia. x .50” Standoff
(8) R20-37575-SO: .375” Dia. x .75” Standoff
(6) R20-3751-SO: .375” Dia. x 1.0” Standoff
(6) R20-5050-SO: .50” Dia. x 1/2” Standoff
(6) R20-501-SO: .50” Dia. x 1” Standoff
(6) R20-2550-PSO: .25” Dia. x .50” Pin Standoff
(6) R20-37550-PSO: .375” Dia. x .50” Pin Standoff
(4) R20-501-PSO: .50” Dia. x 1” Pin Standoff
(6) R20-MTS-1: Mini Tension Spring (1” Post)
(6) R20-MTS-2: Mini Tension Spring (2” Post)
(6) R20-STS-15: Small Tension Spring – 1.5” Post
(4) R20-WTS-125-1: Wire Tension Spring Clamp
(4) R20-WTS-2-2: Wire Tension Spring Clamp
(4) R20-SRP: Steel Resting Pin
(1) R20-CV: Corner Viewer
(2) R20-50-JS: .50” Dia. Small Jackstand
(2) R20-MSLD: Mini Slide Base
(1) R20-PC: Pusher Clamp Locating Block w/ Base
(1) R20-SCT: Small Component Tray
Specifications
Application - Vision
Components - 22
Kit Type - Vision Clamping Kits
Thread Type - 1/4-20 Thread
