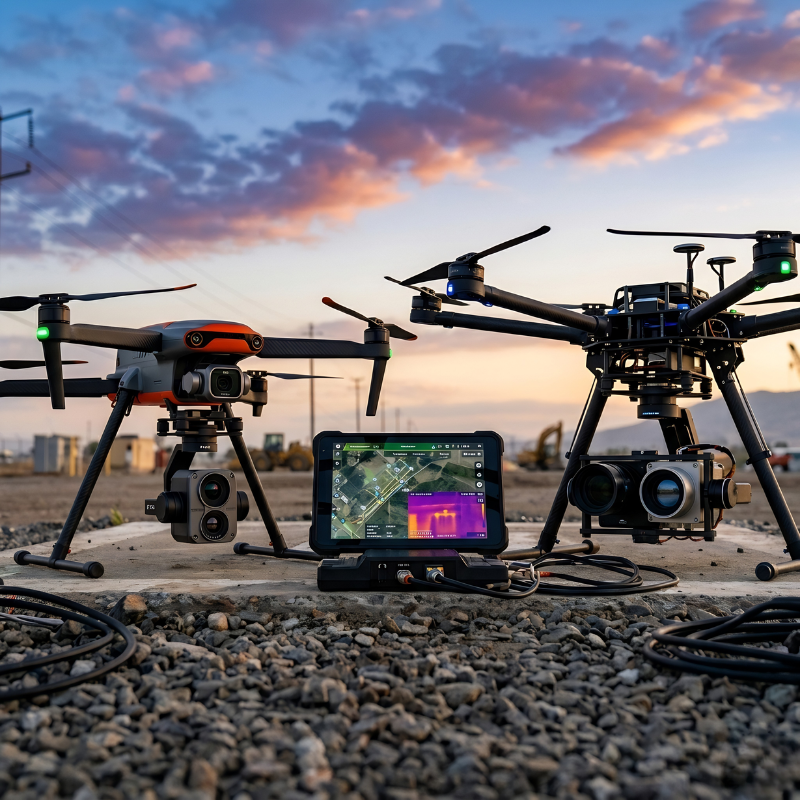

Autel Robotics vs. Inspired Flight: Which Drone Platform Has Better Software and Payload Integration?

When people compare Autel Robotics and Inspired Flight side by side, the conversation often gets pulled toward flight time, payload capacity, or camera specs. Those things matter. But for enterprise and industrial users, the comparison that actually shapes long-term value is different: how does each platform handle software, and how open is it to the payloads your missions actually require?

This guide works through both questions carefully. Not to declare a winner, but to give you a clear picture of how these two platforms are architecturally different and why that architecture determines what each one is suited for.

Two Different Design Philosophies

Before comparing features, it helps to understand where each platform comes from, because origin shapes everything.

Autel Robotics built its reputation in the consumer and prosumer drone market, and the EVO Max series is its expansion into enterprise applications. The platform is capable and feature-rich. The software ecosystem is largely proprietary built around the Autel Enterprise App and Autel's own Smart Controller, with a developer SDK that opens up integrations for partners willing to build to Autel's interface standards.

Inspired Flight was designed for enterprise and government use from the start. The IF800 and IF1200A were built out of requirements from the United States Department of Defense. From the first version, the platform was built on an open architecture specifically ArduPilot, a widely used and deeply trusted open-source flight control system with a universal payload interface intended to let operators integrate whatever sensor their mission demands.

Those are genuinely different philosophies. One is a consumer platform that has grown into enterprise. The other is an enterprise platform that has never been anything else. Understanding that is the foundation for everything that follows.

Software: How Each Platform Operates

Autel's software stack centers on the Autel Enterprise App, which is purpose-built for industrial applications. It handles waypoint mission planning in 3D, autonomous flight modes, target tracking, and fleet management. The interface is polished, with a large sunlight-readable controller display and a touchscreen-driven workflow. For operators who want a ready-to-fly system with minimal setup, the learning curve is manageable.

Autel also offers a developer SDK with three layers: a Mobile SDK for application development on iOS and Android, a Payload SDK for integrating third-party hardware, and a Cloud SDK for connecting to third-party fleet management and live-streaming platforms. The Payload SDK was added to the EVO Max platform more recently from firmware V1.9 onward giving developers a path to custom integrations. A cloud integration through the Autel Integrated Command System (AICS) enables live streaming, fleet oversight, and remote mission management.

The constraint is that all of this operates within Autel's ecosystem. The EVO Max currently requires the Autel Enterprise App and the Autel Smart Controller V3. Third-party integration is possible through the SDK, but it requires development effort and works within the boundaries Autel has defined.

Inspired Flight's software stack is built on a different foundation. The flight management unit on the IF800 runs ArduPilot on a CubePilot Cube Blue H7 which is a flight controller used widely across the aerospace, defense, and research communities. ArduPilot is open-source, extensively documented, and compatible with a broad range of ground control applications.

The primary mission planning and flight interface is Inspired Ground Control (IGC), built on QGroundControl's foundation and tailored for Inspired Flight's aircraft and payloads. It provides intuitive flight planning, payload control, and situational awareness in a single interface. PilotGo handles pre-flight checklists and mission logging. Elevate manages fleet data, airframe health, and asset tracking essentially a maintenance and compliance tool for organizations operating multiple aircraft.

Because the flight control layer is MAVLink-compatible and built on ArduPilot, the platform can also be operated with other MAVLink-compatible ground control software. This matters for organizations that have already invested in a specific operational software environment as they are not forced to adopt a new toolchain to use the platform.

Payload Integration: Where the Real Difference Lives

This is where the two platforms diverge most significantly, and where the choice often turns.

Autel EVO Max payloads are primarily built-in or proprietary. The flagship EVO Max 4T ships with an integrated multi-sensor payload: a 10x optical / 160x hybrid zoom camera, a wide-angle camera, a thermal imaging camera, and a laser rangefinder. All combined in a single unit. For the range of applications Autel targets public safety, energy inspection, emergency response, general surveillance since this integrated package covers most needs without requiring any additional hardware.

Third-party payload integration is possible through the Payload SDK. Autel's interface standard supports external devices like speakers and gas detectors, and the SDK gives developers the tools to build custom integrations. But the payload ecosystem is still maturing, and the range of pre-integrated third-party options is more limited compared to what Inspired Flight offers out of the box.

Inspired Flight's payload integration is built around an open, modular architecture from the start. The IF800's dovetail power bus and universal payload interface are designed to accept a wide range of sensors without modification to the aircraft. Pre-integrated payload partners include Gremsy for EO/IR gimbals (including the Gremsy VIO with 4K visual, radiometric thermal, and laser ranging in one unit), Sony for optical cameras, Sentera for multispectral sensors, and LiDAR specialists including YellowScan and GeoCue.

Beyond the pre-integrated options, Inspired Flight's open SDK and engineering support team are available to help organizations integrate bespoke payloads such as custom sensors, robotics, delivery systems, or specialized instruments that do not appear on any standard compatibility list. That is not a marketing claim; it is a design choice that has been validated through the platform's use in defense, research, and specialized commercial applications.

The practical effect: if your mission requires a specific sensor that is not part of a pre-configured drone kit, Inspired Flight's architecture is designed to accommodate it. Autel's architecture can accommodate some third-party hardware through SDK development, but it is not designed around that kind of flexibility from the ground up.

Data Security and Compliance

This topic deserves its own section because it is often the deciding factor for government, federal, and critical infrastructure users and the two platforms are in fundamentally different positions.

Inspired Flight's IF800 and IF1200A are listed on the Department of Defense's Blue UAS Cleared List. They are also certified under AUVSI's Green UAS program. These certifications mean the aircraft meet strict requirements for NDAA compliance, cybersecurity, and domestic component sourcing. For federal agencies, state and local public safety programs, and commercial operators working on critical infrastructure, Blue UAS listing is not a nice-to-have, it is often a procurement requirement.

Autel Robotics is a Chinese-owned company. The EVO Max series is a capable platform, but it is not currently on the Blue UAS Cleared List. For many commercial applications, this is not a barrier. For federally funded programs, DoD contracts, or organizations with explicit policies around data sovereignty and supply chain security, it is a material constraint that shapes the decision before software and payload integration are even considered.

If compliance is a requirement in your procurement process, that fact alone may resolve the comparison. It is worth knowing clearly, early.

Autonomy and Mission Intelligence

Both platforms offer autonomous mission capabilities, though they approach them differently.

Autel's Autonomy Engine built into the EVO Max series provides obstacle avoidance, autonomous path planning, 3D scene reconstruction, and target tracking. The system uses binocular vision and millimeter-wave radar together, which gives it strong environmental awareness even in low light or light rain. Autel's A-Mesh networking enables multi-drone operations with one controller, with drones relaying signals between each other to extend range beyond what a single link could achieve. For coordinated fleet operations in complex environments, this is a genuinely capable system.

Inspired Flight's autonomy operates through ArduPilot's well-established mission execution engine, which handles waypoint navigation, autonomous return-to-home, and geofencing reliably and with a long track record in demanding environments. More complex autonomous behaviors such as precision inspection routes, automated data collection passes, multi-aircraft coordination are built at the mission planning level in IGC or through third-party software compatible with MAVLink. The strength here is compatibility with a wide ecosystem of autonomy tools rather than a single first-party solution.

The honest assessment: Autel's first-party autonomy features are polished and integrated in a way that requires less assembly. Inspired Flight's open architecture means autonomy capability can be extended by plugging in whatever tool does the job but that extensibility requires more effort to configure. Neither is universally better. It depends on whether you want a system that works out of the box, or a platform you can build precisely for your mission.

Who Each Platform Is Actually For

Reading through all of this, the decision often becomes clearer when you focus on the type of organization, not just the feature list.

Autel EVO Max is a strong fit if:

Your primary use cases fall within the range covered by the integrated 4T or 4N payload — public safety, energy infrastructure inspection, emergency response, general surveillance. You want a polished, ready-to-use system with minimal configuration overhead. Data security requirements do not create a barrier to a non-NDAA-compliant platform. You value a consumer-grade user experience extended to enterprise applications.

Inspired Flight is a strong fit if:

Your work requires specific payloads such as a LiDAR for survey-grade mapping, multispectral sensors for agriculture or environmental monitoring, custom sensors for specialized research or industrial inspection that cannot be covered by a fixed integrated camera system. Your procurement process requires Blue UAS compliance or NDAA conformance. You are operating in a software environment that expects MAVLink compatibility. You want a platform you can build on, not just fly with.

The clearest signal is usually payload. When a mission depends on a particular sensor that does not come pre-integrated into a consumer-style kit, open architecture becomes the deciding factor. That is where Inspired Flight was built to operate.

A Note on Long-Term Investment

Choosing a drone platform is not just choosing hardware. You are choosing a software environment, a payload ecosystem, a support structure, and increasingly a position on compliance and data security.

Switching platforms after deploying at scale is costly. Training, certifications, mission software integration, spare parts inventories compound over time. The platform that fits your current mission may not be the platform that fits your program in three years if your scope changes.

Think about where your work is headed, not just where it is today. If your organization's drone use is expanding, and if the missions ahead will require more specialized payloads, tighter compliance, or deeper software integration, those are the factors to weigh now rather than after a purchase.

There is something grounding about laying out two actual aircraft side by side physically different platforms, physically different payload mounts and asking which one your sensor will actually attach to. That question cuts through a lot of feature comparison quickly.

The Decision Is Yours to Make

Neither platform is the universal answer. Both are capable. Both are improving.

Autel Robotics brings polished software, capable integrated sensors, and a growing SDK ecosystem better suited for organizations that want a ready-configured system covering common enterprise inspection and public safety workflows.

Inspired Flight brings open architecture, NDAA compliance, deep payload flexibility, and a foundation built for organizations that need to integrate specific sensors, meet federal procurement requirements, or build custom capabilities on top of a trusted flight control platform.

Define your mission requirements first. Identify your payload needs and compliance obligations. The platform choice follows from that. It almost always does.
