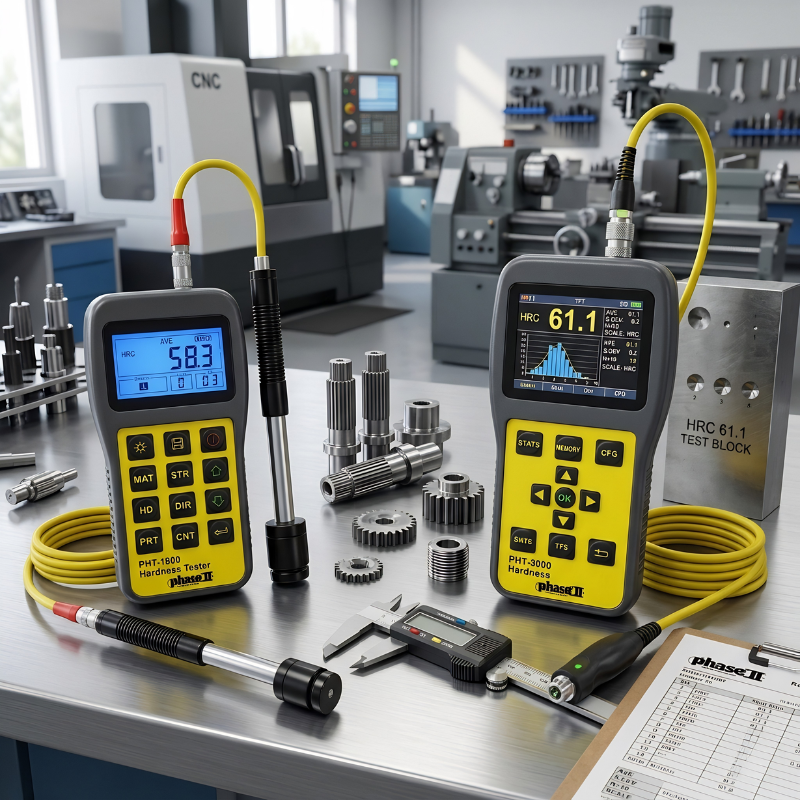

Phase2+ PHT-1800 vs. PHT-3000: Which Portable Hardness Tester Is Right for You?

If you are comparing the Phase2+ PHT-1800 and PHT-3000 and trying to figure out which one makes sense for your work, you are asking a reasonable question. Both instruments measure hardness well. Both use the same testing method. Both convert to the same hardness scales. The differences are real, but they are not about accuracy, they are about workflow, interface, and how you handle results in the field.

This guide walks through both models clearly so you can make a confident decision without second-guessing yourself.

A Quick Foundation: What These Instruments Do

Both the PHT-1800 and PHT-3000 are portable Leeb hardness testers. Before getting into the comparison, it is worth understanding what that means because the testing method is the same for both, and it shapes what both instruments are and are not suited for.

Leeb hardness testing works by dropping a small impact body which is a spring-loaded carbide ball tip against a metal surface. The instrument measures how fast the tip is moving when it hits the surface, and how fast it bounces back. The ratio of rebound velocity to impact velocity gives you the Leeb hardness value, abbreviated HL. From that raw value, the instrument automatically calculates equivalent readings in Rockwell (HRC and HRB), Brinell (HB), Vickers (HV), and Shore (HS) hardness scales.

The result takes less than a second. The test leaves a very small indentation which is typically smaller and shallower than a Brinell test and the instrument can be held against the part in almost any orientation, including overhead, making it practical in the field in ways a benchtop tester cannot be.

One important constraint applies to both instruments equally: Leeb testing is designed for large, solid, heavy metal parts. The component being tested needs enough mass to absorb the impact without moving or vibrating and is generally at least several pounds and, for steel, close to one inch thick of solid material. Thin sheet metal, small parts, and lightweight castings are not good candidates. That is not a limitation of these specific models but it is a characteristic of the Leeb method itself.

The PHT-1800: Reliable, Practical, Field-Proven

The PHT-1800 is Phase2+'s core portable hardness tester. It does the job cleanly with accurate readings, clear display, USB output for data transfer, and a design that has been used in QC labs and field environments long enough to earn a straightforward reputation.

The interface is button-operated. A standard LCD screen displays the reading, the hardness scale, and the statistical output from a test group. The display is clear and easy to read in most conditions. Operating it is direct and there is not much to learn, which means less time getting oriented and more time working.

The PHT-1800 includes the Type D impact device, which is the universal standard for general hardness testing on flat and round metal surfaces. It supports a range of optional impact devices for specialized applications: the DC for very confined spaces like bores and cylinders, the DL for gear teeth and narrow grooves, the D+15 for recessed surfaces, the G for rough castings and large forgings, and the C for case-hardened or thin-walled components.

Results are stored in memory and transferred to a PC via USB. The software allows you to view, sort, and export measurement data for documentation and records. Accuracy is ±0.5% referenced to L=800 across a measuring range of 200 to 960 HL.

The PHT-1800 ships NIST-traceable and carries a five-year warranty. It meets ASTM A956 specifications, which matters in quality-managed environments where the inspection method needs to be documented against a standard.

For most QC lab and field inspection work like incoming material verification, post-weld hardness checking, heat treatment confirmation, maintenance inspection on large components the PHT-1800 handles the job without asking anything unnecessary of the operator.

The PHT-3000: Same Core, Upgraded Interface and On-Site Output

The PHT-3000 measures hardness with the same Leeb method, the same accuracy, and the same hardness scale conversions as the PHT-1800. The measurement performance is comparable. What is different is the interface and what comes with it.

The PHT-3000 is built around a touchscreen display in a PDA-style form factor. PDA stands for Personal Digital Assistant and is the format of an older handheld computer, wide and flat, with a large screen that takes up most of the front face. In practice, this means a larger display area, a touch-based menu system, and a user experience that will feel familiar to anyone accustomed to operating a smartphone or tablet.

Navigating settings, switching hardness scales, reviewing stored results, and managing test groups is done by tapping the screen rather than cycling through button menus. For operators who find touchscreens more intuitive, or for environments where the instrument is shared among multiple users who need to orient to it quickly, this can be a meaningful usability improvement.

The other significant difference: the PHT-3000 includes an infrared mini-printer in the kit. The printer is small and portable. After completing a test series, you can print the results directly from the instrument to a paper record in hand, on site, without needing to return to a computer, open software, and generate a report later.

That capability matters in specific situations. An inspector documenting hardness readings on a large weld repair in the field, a service technician verifying material hardness on installed equipment, a quality engineer who needs to hand a printed result to a customer or supervisor immediately after testing in these cases, the built-in printer changes the workflow in a useful way.

The Key Differences, Plainly Stated

Both instruments share the same measurement method, accuracy, hardness scales, measuring range, and impact device compatibility. The differences are:

Display and interface. The PHT-1800 uses a button-operated LCD display. The PHT-3000 uses a touchscreen on a larger PDA-style body.

On-site printing. The PHT-3000 kit includes an infrared mini-printer. The PHT-1800 does not and results are transferred to a PC via USB for documentation.

Form factor. The PHT-3000's wider, flatter PDA format is noticeably different from the more compact cylindrical-body style of the PHT-1800. Some operators find the PHT-3000 easier to hold and operate with one hand; others prefer the smaller profile of the PHT-1800, particularly in tight spaces.

Price. The PHT-3000 carries a higher price reflecting the touchscreen interface and the included printer. If neither of those features changes your workflow, the additional cost does not buy you better measurements.

How to Choose

The honest answer is that the measurement you get from either instrument will be the same. The choice is about how you work, not how well the instrument measures.

Choose the PHT-1800 if:

You are doing lab or shop floor inspection where results get documented digitally. The USB output and PC software handle your record-keeping, and a button-operated interface does not slow you down. You want a capable, proven instrument without paying for features you will not use. You work in tighter spaces where a more compact form factor helps.

Choose the PHT-3000 if:

You need to produce printed records in the field, on site, without returning to a computer. A touchscreen interface is meaningfully easier for your operators to use quickly or train on. You regularly hand physical copies of hardness results to customers, supervisors, or inspectors immediately after testing.

There is a third scenario worth naming: if you are outfitting a team or buying multiple instruments, the per-unit price difference adds up. In that case, the question of whether the touchscreen and printer genuinely improve your workflow rather than just being a nice feature deserves a direct answer before you commit.

A Note on Impact Devices

Both instruments are compatible with the same range of optional impact devices, and the choice of impact device often matters more than the choice between these two models.

The standard Type D device covers most general surface testing on flat and rounded parts. But if your work regularly involves gear teeth, bore interiors, narrow grooves, rough castings, or case-hardened components, the right optional impact device makes the difference between a test you can perform and one you cannot.

When you configure either instrument, think about the impact devices you will actually need for the parts in your inspection scope and not just the base device that comes in the kit.

Practical Guidance on the Leeb Method

A few things worth keeping in mind when putting either instrument to work:

Surface preparation matters. The test surface should be clean, free of scale, paint, or heavy oxide, and smooth enough to make consistent contact. A quick pass with fine abrasive paper or a wire brush before testing is standard practice.

Part orientation affects reading. The impact direction setting on the instrument needs to match the actual direction of the test whether its horizontal, vertical downward, vertical upward, or angled. The instrument compensates for gravity automatically once the direction is set correctly. Forgetting to update this setting is a common source of inconsistent readings.

Take multiple readings. A single Leeb reading is not a reliable result. Standard practice is to take a group of readings, typically five and use the statistical mean. Both instruments calculate and display the mean automatically.

Part mass and coupling. Lightweight or thin parts need to be rigidly coupled to a heavy backing piece to behave like the solid mass the Leeb method requires. If the part vibrates or moves when the impact body strikes it, the reading is not valid.

The Decision Is Simpler Than It Looks

Choosing between the PHT-1800 and PHT-3000 comes down to two questions. Do you need to print results on-site? Do you want a touchscreen interface?

If yes to either, the PHT-3000 earns the premium. If not, the PHT-1800 measures just as well and handles documentation through USB output and PC software which is how most QC environments process inspection data anyway.

Pick the one that fits the way you actually work. The hardness readings will take care of themselves.
