Micrometer Calibration: Why It Matters and How to Do It Properly

There is something quietly satisfying about a micrometer that reads true. You close the thimble, feel the gentle resistance of the ratchet stop, and the number that comes up is the number you can count on. That trust is not accidental. It comes from calibration.

If you have never calibrated a micrometer before or if it has been a while, this guide will walk you through it clearly. No intimidating jargon. No skipped steps. Just what you need to know and how to do it right.

Why Calibration Matters

A micrometer is only useful if it is accurate. Even a small error, say a few thousandths of an inch can mean the difference between a part that fits and a part that does not. In industries like machining, aerospace, or quality control, that difference matters a great deal.

Micrometers can drift out of calibration over time. Dropping the tool, thermal expansion from heat, normal wear on the spindle and anvil, and even storage conditions can all shift the zero point. It is not a sign that anything is broken. It is just what happens to precision instruments that get used.

Calibrating your micrometer regularly keeps your measurements honest. It is that simple.

How Often Should You Calibrate?

This depends on how often you use the tool and what you are measuring. A general rule:

• Daily use in a production environment: Check zero at the start of each shift.
• Regular shop use: Check before any critical measurement session.
• Occasional or storage use: Check before use if it has been sitting for more than a few weeks.

When in doubt, check. It takes less than a minute once you know how.

What You Will Need

Before you start, gather a few things:

• The micrometer you want to calibrate
• A calibration standard - usually a gauge block or a set of certified reference standards
• A clean, lint-free cloth or tissue - for wiping the measuring faces
• A wrench or spanner - (if your micrometer has a barrel lock and adjustable nut)
• A stable, flat work surface - ideally at room temperature (around 68°F / 20°C)

Temperature matters more than most people expect. Metal expands and contracts with heat. If your micrometer just came in from a cold truck or a hot car, let it sit at room temperature for at least 30 minutes before you begin.

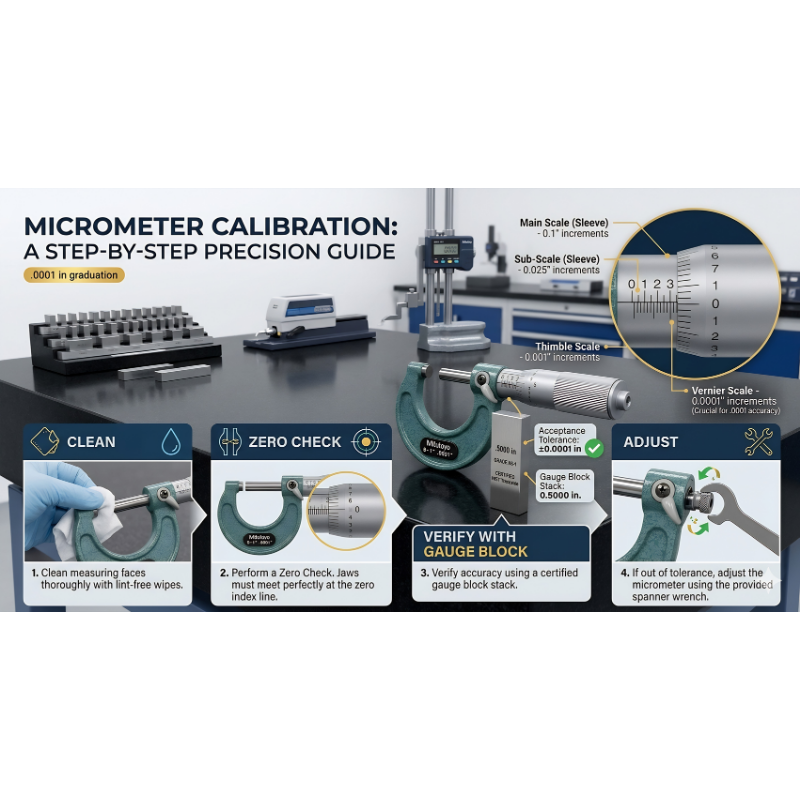

Step 1: Clean the Measuring Faces

Hold the micrometer so that the spindle (the part that moves) and the anvil (the fixed part opposite it) are facing you. Take your cloth and gently wipe both faces.

Dust, oil, and tiny particles can add a few tenths here and there which is more than enough to throw off a reading. This step takes ten seconds and is worth it every time.

Step 2: Check the Zero (for a 0–1 inch or 0–25mm micrometer)

Close the spindle gently against the anvil. Use the ratchet stop and not your fingers to apply the closing force. The ratchet stop is the small knurled drum at the end of the thimble. It clicks when the right amount of force is reached. This keeps the pressure consistent and protects the measuring faces.

With the spindle fully closed, look at the reading.

• The barrel line (also called the datum line) should line up with the zero mark on the thimble.
• If it does not, you have some adjustment to make.

On most micrometers, you will see a small notch or flat on the barrel. This is where the spanner wrench fits. Loosen the locking nut slightly if there is one, then use the spanner to rotate the barrel until the zero mark aligns. Close the spindle again with the ratchet stop and check. Repeat until it reads zero cleanly.

If you do not have a spanner, some micrometers include one in the case. Check the original packaging or the manufacturer's documentation.

Step 3: Verify with a Gauge Block

A gauge block is a precision-ground piece of metal with a certified, known thickness. They are made to extremely tight tolerances and are the standard way to verify a micrometer's accuracy across its range.

Here is how to use one:

1. Select a gauge block that falls within your micrometer's range, 0.500 inches for a 0–1 inch mic.
2. Wipe the gauge block faces with a clean cloth.
3. Place the gauge block between the spindle and anvil.
4. Close with the ratchet stop.
5. Read the micrometer. It should match the gauge block's certified value.

If it does not match and the error is consistent, your zero may need adjustment, or the instrument may have wear or damage that needs professional service. A small, consistent error (called a systematic error) can sometimes be compensated for by re-zeroing. A scattered or inconsistent error often points to something mechanical that needs attention.

Step 4: Check Multiple Points (for Larger Range Micrometers)

For 1–2 inch, 2–3 inch, or larger micrometers, zero is set with a setting rod or a reference standard specific to that range usually included with the tool or available from the manufacturer. The process is the same: set the standard, close with the ratchet, check the reading.

For these tools, also verify at a midpoint in the range. A micrometer can read correctly at both ends and still have a small bow in the barrel or wear in the middle. Checking the middle gives you confidence across the full range.

What to Watch For

A few things that often catch people off guard:

The ratchet stop slipping. If the ratchet clicks but does not feel firm, it may need service. A worn ratchet means inconsistent clamping force, which leads to inconsistent readings.

Backlash in the spindle. Close the spindle, then try to wiggle it slightly. A little movement is normal. Noticeable play is not. If you feel significant backlash, the spindle threads may be worn.

Scratched measuring faces. Hold the anvil and spindle up to light. The faces should be flat, clean, and unmarked. Deep scratches or pitting will affect readings and usually mean the tool needs to be replaced or reground.

Thermal drift during measurement. Hold the frame by the insulated sections, not the barrel or spindle. Body heat transfers quickly to metal, and a warm micrometer will read slightly differently than a cool one.

Keeping Records

If you are working in a shop environment or doing work that requires traceability, write down your calibration checks. Note the date, the tool, the standards used, and the result. This does not have to be elaborate. A simple log in a notebook will do. Over time, you will start to see patterns: how often your specific tools drift, whether a particular micrometer needs attention more than others.

Good records also protect you. If a part is ever questioned, you have evidence that your instruments were checked and in calibration when the measurement was made.

A Word on Professional Calibration

Calibrating your own micrometer at the bench, what is described in this guide is called in-house calibration or user verification. It is appropriate for most shop and field use.

For work that requires formal traceability to national standards (NIST in the United States, or equivalent bodies elsewhere), you will need to send your tools to a certified calibration laboratory. They will issue a calibration certificate with documented uncertainty values. If your customers or quality standards require this, it is not something you can replicate in-house without the same lab-grade equipment they use.

When in doubt about what level of calibration your situation requires, check your quality plan or ask your customer. Most of the time, the answer is clear.

You Got This!

Calibration can sound technical. In practice, it is a careful, methodical habit. Clean the faces. Check the zero. Verify with a standard. Write it down.

You do not need to be an expert metrologist to maintain your own instruments. You just need to take the time and pay attention.

Once you have done it a few times, it becomes second nature like part of picking up the tool, the way you would check the battery on a multimeter before trusting a reading. A small act of care that keeps everything downstream reliable.

Your measurements are only as good as the tools behind them. Taking care of those tools is part of doing the work right.
