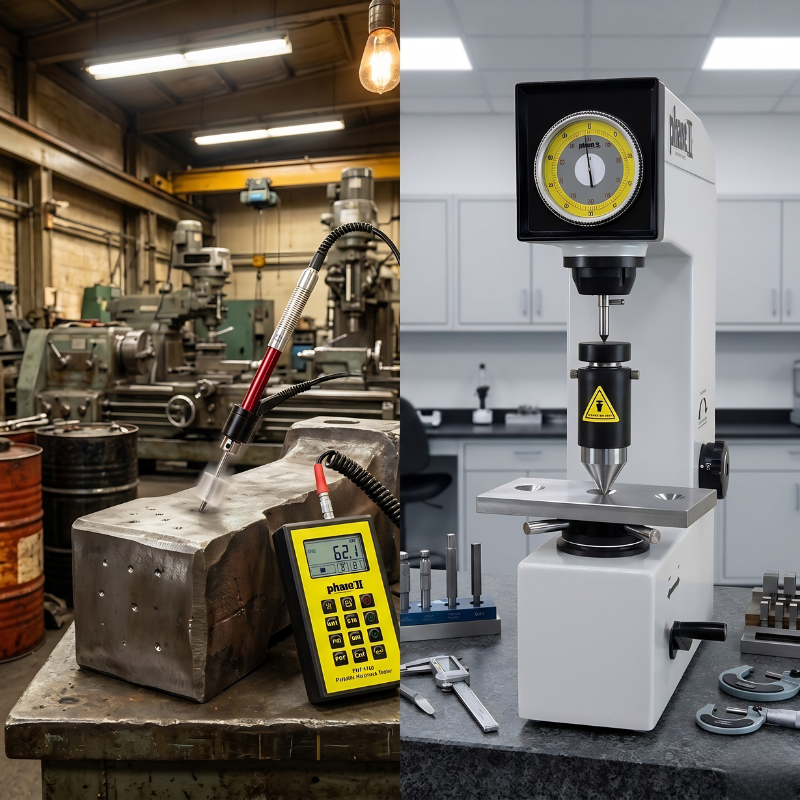

Phase2+ Leeb vs Rockwell Hardness Testing: Pros, Cons, and Use Cases

If you've been looking into hardness testing and feel like you're going in circles between Leeb, Rockwell, portable, benchtop, HRC, HLD, you're not alone. The terminology piles up fast. But the underlying question is actually pretty simple: which method fits the work you're doing?

This post breaks down both methods clearly. What each one measures. Where each one makes sense. And where things can go sideways if you pick the wrong tool for the job.

What Hardness Testing Actually Measures

Before comparing the two methods, it helps to understand what hardness testing is really telling you.

Hardness is a material's resistance to being permanently indented or deformed. It's not the same as strength, but the two are closely related especially in metals. A harder material generally means a stronger one, and knowing the hardness of a part tells you a lot about how it was processed, whether heat treatment worked the way it was supposed to, and whether it's fit for its intended use.

That's why hardness testing shows up in so many industries. Aerospace. Automotive. Tool and die. Heavy fabrication. Anywhere metal parts have to perform under load.

Rockwell Hardness Testing: The Established Benchtop Standard

How it works

Rockwell testing presses a diamond cone or hardened ball directly into the surface of the material using two separate loads, a minor load first to seat the indenter, then a major load on top of that. The depth difference between those two stages becomes the hardness number.

You never have to measure the indent visually. The machine reads depth directly. That's one reason Rockwell became so widely adopted since it's fast, direct, and the result appears almost immediately.

The Rockwell scales

Rockwell uses different scales depending on the material being tested. The two you'll encounter most often:

• HRC (Rockwell C) - for hard materials like hardened steel, tool steel, and hard alloys. Uses a diamond cone indenter.
• HRB (Rockwell B) - for softer materials like mild steel, aluminum, brass, and copper. Uses a ball indenter.

There are other scales, but HRC and HRB cover the large majority of industrial work.

Where Rockwell makes sense

Rockwell is the right call when:

• You're testing in a controlled environment such as a lab, QC station, or shop floor with a dedicated workstation
• The parts are small enough to bring to the machine
• You need a high volume of tests done quickly and consistently
• Your industry specs or material standards call out Rockwell values specifically

The Phase2+ Rockwell hardness testers are built around this workflow. They're benchtop instruments designed for repeatability and accuracy are the kind of equipment that sits in a quality control area and handles production testing day after day.

Limitations to know

Rockwell testing requires a stable, flat, supported surface. The part has to be held firmly since any movement during the test skews the result. It also requires a minimum part thickness, because the indent goes into the material and you can't have the deformation pushing through the other side.

And of course: the part has to come to the machine. That works fine in a production environment. It doesn't work at all on a large weldment, a structural beam, or anything that can't be moved.

Leeb Hardness Testing: The Portable Field Method

How it works

Leeb testing measures the rebound of a small impact body, normally a spring-loaded device fires a carbide ball against the surface, and a sensor measures how fast it's moving just before impact and just after it bounces back. The ratio of those two velocities becomes the Leeb hardness value (HL).

That number can then be converted to Rockwell, Brinell, Vickers, or other scales using built-in conversion tables.

It's worth pausing on what makes this genuinely clever: you're not measuring depth, you're measuring energy loss. Harder materials return more energy. Softer ones absorb more of it. The physics are elegant, and the method has proven reliable across decades of industrial use.

Where Leeb makes sense

Leeb is the right call when:

• The part can't be moved such as large castings, installed machinery, structural components
• You're working in the field, not a lab
• You need a quick check across multiple locations on the same part
• The geometry doesn't allow for a benchtop test

The Phase2+ portable Leeb hardness testers are designed for exactly this kind of work. Handheld, battery-powered, with on-board scale conversions and data storage. You can carry one to a job site, test a weld heat-affected zone, check a shaft in place, and have documented results before you leave the area.

There's something quietly useful about being able to do that standing next to a piece of equipment that can't come off its mount, getting the data you need without a shutdown or a sample extraction.

Limitations to know

Leeb is sensitive to a few things that don't affect benchtop testing as much.

Surface condition matters. The test surface needs to be smooth, clean, and free of scale, oxidation, or coating. Rough surfaces scatter the impact and produce inconsistent readings. A light grind or polish on the test spot is usually all it takes.

Minimum mass and thickness. Leeb works well on parts with enough mass to absorb the impact without vibrating or flexing. Very thin sections, small parts, or parts that aren't securely supported will give unreliable results. Phase2+ portable testers include guidance on minimum part weight and it's worth consulting before testing anything that feels light or springy.

Curved surfaces need correction. Testing on a cylinder or a curved surface changes the way the impact body travels. Most Phase2+ Leeb testers include built-in correction factors for common geometries, but you need to apply them consistently.

Conversions are approximations. Converting a Leeb value to HRC or HRB works well within defined material groups, but it's not an exact science across all alloys. If your specification requires a Rockwell value and tight tolerances, verify with a benchtop instrument when possible.

Side-by-Side Comparison

When to Use Both

Some operations use both methods and that's not redundancy, that's good practice.

A fabrication shop might use a Phase2+ Leeb tester to check large weldments and heat-treated plates in the yard, then bring sample coupons or smaller machined parts to a Rockwell benchtop unit for precise QC sign-off. The two methods work well together when each is applied to what it's actually suited for.

If your work requires traceability against a Rockwell specification, the portable Leeb test can serve as a fast screening tool and the benchtop test as the verification step. That workflow is common in aerospace supply chains and heavy equipment manufacturing.

Common Questions Worth Addressing

Are Leeb conversions accurate enough for certification?

It depends on the specification. Some standards accept Leeb-derived values with proper documentation. Others require direct Rockwell or Brinell measurement. Check your applicable standard. ASTM A956 covers Leeb testing specifically and is a good starting point.

Do I need to calibrate my tester before use?

Yes, and it's simpler than it sounds. Both Rockwell benchtop units and Leeb portable testers come with test blocks for this purpose. A quick check at the start of a testing session with a few indentations or impacts on the reference block confirms the instrument is reading correctly. Phase2+ testers include reference blocks for exactly this step.

What if my readings are inconsistent?

Before assuming the instrument is the problem, check the basics. For Leeb: surface prep, part support, impact direction. For Rockwell: anvil seating, part flatness, specimen clamping. Inconsistency usually traces back to setup, not equipment failure.

The Steady Takeaway

Leeb and Rockwell aren't competing methods. They're tools with different strengths, suited to different situations.

If your parts come to you and your work happens at a bench, Rockwell gives you speed, directness, and a result your specs already recognize. If your work happens in the field, on large parts, installed components, or anything that can't be moved then Leeb gives you the flexibility to get real data where you actually need it.

Phase2+ builds both, and they're designed to hold up in the environments where hardness testing actually happens and not just in ideal conditions, but in shops, yards, and field sites where the work is real and the stakes are genuine.

Pick the method that fits the job. Learn it well. The rest follows from there.
