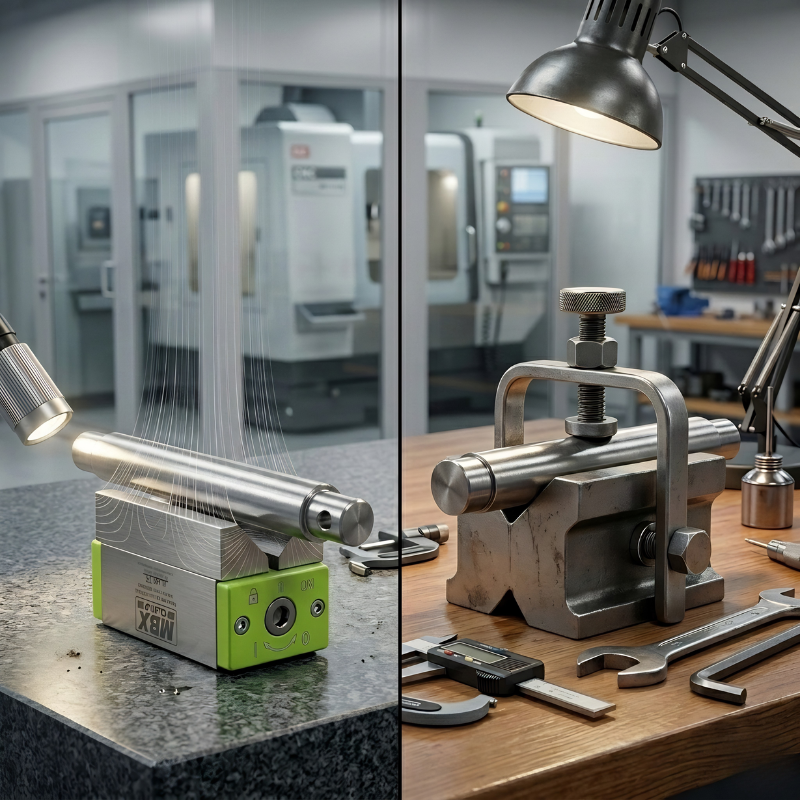

Mag-Mate Magnetic V-Blocks vs Standard V-Blocks: When Magnets Change Everything

V-blocks are one of those tools that don't get much attention until you really need one. Then you need it to work exactly right.

If you're trying to decide between a standard V-block and a magnetic one or trying to understand why Mag-Mate magnetic V-blocks exist in the first place, this post is for you. We'll cover what each type does well, where each one falls short, and how to read the situation so you can make a confident call.

What a V-Block Does

A V-block is a precision-ground steel block with a V-shaped groove cut into the top. That groove cradles round workpieces like shafts, rods, pins, cylinders and holds them steady while you inspect, measure, or machine them.

The V shape is what makes it work. When a cylinder sits in a V, it self-centers. You don't have to chase it into position. Gravity and geometry do that for you.

That's it. Simple tool, well-understood geometry, decades of reliable use. The question isn't whether V-blocks work but which kind fits your situation.

Standard V-Blocks: Reliable, Straightforward, Limited by One Thing

A standard V-block holds a workpiece in the groove and relies on a clamp usually a strap or a hold-down that bridges across the top to keep it from rolling or lifting.

They're accurate. They're stable. They've been used in inspection rooms and machine shops for as long as precision work has existed. On a surface plate, with a cylindrical part clamped in place, a standard V-block does exactly what it's supposed to do.

But the clamp is also the limitation.

Getting the clamp positioned right takes time. It can interfere with where you need to put your indicator or your hands. On small parts, it can obscure the very surface you're trying to reach. And if you're rotating the part to take readings at multiple positions around the circumference, the clamp has to come off and go back on, repeatedly.

None of this is a problem in the right workflow. But it becomes friction in others.

Magnetic V-Blocks: What Changes When You Add a Magnet

Mag-Mate magnetic V-blocks add a permanent magnet to the body of the block itself. Flip the activation switch, and the magnet energizes, holding the ferromagnetic workpiece firmly in the groove without any external clamp.

The part sits. The magnet holds. Your hands are free.

That shift is more useful than it might sound in theory. In practice, it means you can rotate a shaft in the groove with light fingertip pressure, take readings at every position around the circumference, and never once fight a clamp or worry about the part lifting out. The grip is consistent. The part doesn't wander.

There's also the setup time. Place the block, set the part, activate the magnet. That's the whole sequence. On a busy inspection bench where you're running multiple parts in a session, that adds up.

Where Magnetic V-Blocks Genuinely Outperform Standard Ones

Some situations are where magnetic V-blocks earn their place clearly:

Runout and concentricity inspection. When you need to rotate a shaft under a dial indicator and record readings at multiple clock positions, the magnet holds the part firmly enough that it won't shift but lightly enough that you can rotate it by hand with control. A clamp makes this awkward. A magnet makes it clean.

Repeated setups across a batch. Loading and unloading parts quickly, one after another, without fussing with a clamp each time. The magnet activates and deactivates with a switch. That's real time savings in a production inspection context.

Situations where clamp access is tight. Some parts have features near the ends such as chamfers, grooves, cross-holes that a clamp would sit right on top of. The magnet holds the part without touching those features at all.

Holding parts on a steel surface plate. Some Mag-Mate magnetic V-blocks can also use their magnetic base to grip the surface plate itself, keeping the block from sliding during use. That stability matters when you're applying lateral force with an indicator.

Where Standard V-Blocks Still Make More Sense

Magnetic V-blocks aren't the answer to every situation. A few honest cases where standard blocks hold their ground:

Non-ferromagnetic materials. Aluminum, brass, copper, most plastics don't really respond to a magnet. On these materials, the magnetic function does nothing. A standard clamp is your only hold and a standard V-block is the right tool.

Very heavy parts. A large, heavy shaft generates a lot of weight. Magnetic holding force has limits, and a heavy part that shifts during a measurement is worse than no measurement at all. Standard clamps with mechanical grip are more appropriate for significant mass.

Environments where magnetism causes problems. In some precision measurement work particularly when working near sensitive instruments or with parts that can't be magnetized (certain bearing components, for example) introducing a magnetic field creates complications. Know your environment.

Cost-sensitive general-purpose use. If you need a V-block for occasional, straightforward work and the clamp approach doesn't create any friction in your process, a standard block is simpler and less expensive. No reason to pay for a capability you don't need.

What to Look For in a Mag-Mate Magnetic V-Block

Not all magnetic V-blocks are built the same. A few things worth checking:

Holding force rating. Mag-Mate publishes holding force data for their blocks. Match that to the weight range of the parts you're testing. Heavier parts need more holding force so don't assume one block covers all applications.

Ground accuracy. V-blocks are precision tools, and their accuracy depends on how well the V and the base are ground. Look for flatness and squareness specs. Mag-Mate manufactures to tight tolerances, but it's worth confirming for your specific application requirements.

Groove angle. Most V-blocks use a 90-degree included angle, which works well for a wide range of shaft diameters. Some applications call for 120-degree grooves for larger diameters. Confirm the geometry fits the parts you're running.

Matched pairs. If you're supporting a long shaft at two points, you need a matched pair or two blocks ground to the same height. Mag-Mate offers matched pairs specifically for this. Using two blocks that aren't matched introduces tilt and skews your readings.

A Practical Decision Framework

If you're still working through which type fits your situation, these questions usually settle it:

1. Is the part ferromagnetic? If no, stop here and use a standard V-block with a clamp.
2. Do you need to rotate the part during the test? If yes, a magnetic V-block makes that significantly easier.
3. Is clamp access a problem for your geometry? If yes, magnetic holding clears that obstacle.
4. Is part weight within the magnetic holding force rating? If no, reconsider or look at higher-force options.
5. Does your environment or part require avoiding magnetism? If yes, standard blocks only.

Most inspection work on ferromagnetic shafts and cylinders lands squarely in magnetic V-block territory. Most non-ferrous or heavy-part work stays with standard clamps.

One More Thing Worth Knowing

V-blocks, magnetic or otherwise, need to be stored carefully. The precision-ground surfaces that make them accurate are also surfaces that can be nicked, scratched, or corroded if left exposed on a workbench. Most come with storage cases or protective covers for a reason.

A burr on the base of a V-block will rock on a surface plate. A scratch across the V groove changes the seating geometry. Neither problem announces itself loudly, you just start getting inconsistent readings and wonder why. Keeping the block clean, lightly oiled, and properly stored is the simplest quality habit in precision work.

The Calm Summary

Standard V-blocks are reliable, proven, and right for a lot of work. They've earned their place on inspection benches everywhere.

Magnetic V-blocks specifically Mag-Mate's line solve a real problem that comes up repeatedly in shaft inspection and cylindrical part work: the friction of clamps when you need to rotate, access, or quickly cycle through parts. When that friction is present in your work, the magnet removes it cleanly.

Neither tool is better in the abstract. The better one is the one that fits what you're actually doing.

You already understand your work. Matching the right tool to it is just the next step and now you have what you need to make that call.
