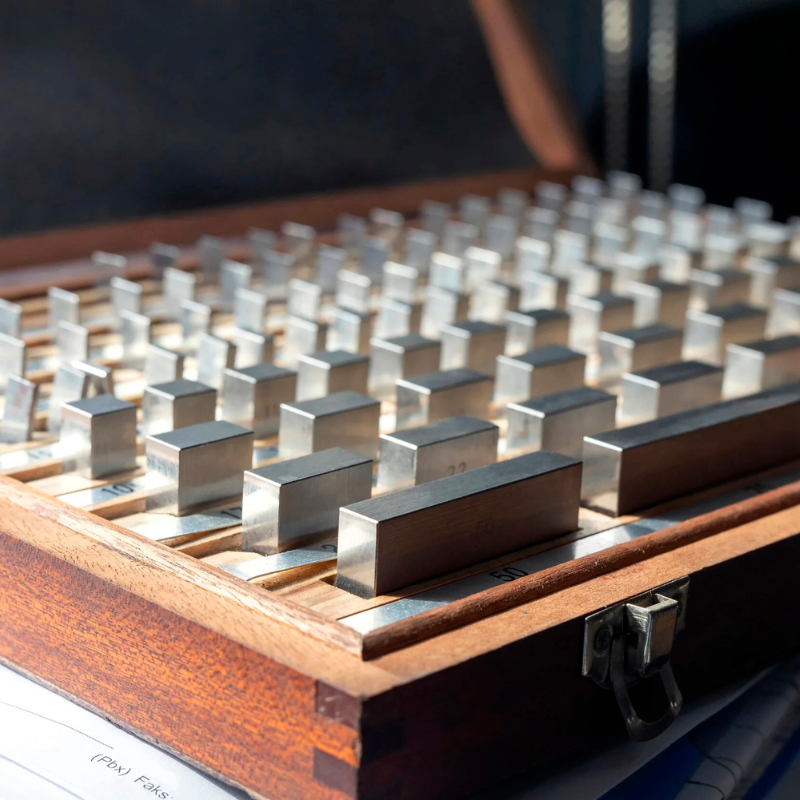

Gauge Block Grades: Everything You Need To Know!

What Are Gauge Blocks?

"Gauge blocks" also known as gauge standards, Jo blocks, or slip gauges are precision-ground and lapped metal or ceramic blocks used to produce exact lengths.
They form the foundation for dimensional measurement in calibration laboratories, manufacturing, and quality assurance.

Each block is manufactured to a specific nominal size with extreme accuracy typically within a few millionths of an inch and can be “wrung” together to create custom lengths.



Why Gauge Block Grades Matter

Not all gauge blocks are created equal and understanding their grades is essential for maintaining measurement accuracy and quality control in any precision environment.

The grade of a gauge block defines its tolerance, flatness, and parallelism, directly impacting the accuracy of your measurements. In other words, the grade determines how close the block’s actual length is to its nominal value, and how consistently that accuracy can be replicated during calibration or inspection.

Choosing the correct gauge block grade ensures that your measurements are:

• Consistent across instruments and setups

• Traceable to international calibration standards such as ISO 3650, ASME B89.1.9, and BS 4311

• Compliant with industry and customer specifications

When the wrong grade, the result can be measurement uncertainty, equipment misalignment, and tolerance stacking errors. These issues often lead to failed inspections, non-conforming parts, and costly rework or downtime on the production floor.

In high-precision industries like aerospace, automotive, and medical manufacturing, the difference between a Grade 0 and a Grade 1 block can mean the difference between a perfect fit and a rejected part. That’s why understanding and selecting the right gauge block grade isn’t just a technical detail it’s a key step in protecting your production quality, reputation, and bottom line.



Common Gauge Block Grades and Their Meanings

Different organizations define grades slightly differently, but most manufacturers (including Insize, Mitutoyo, and Starrett) follow either ISO 3650 or ASME B89.1.9.

Here’s a breakdown of the most common grades:



ISO vs. ASME Grades: Key Differences

While ISO 3650 is recognized as the global benchmark for gauge block classification, the ASME B89.1.9 standard is more commonly applied throughout North America, particularly in the United States. Both systems aim to ensure precision and traceability, but they differ slightly in tolerance definitions, environmental requirements, and marking conventions. All of which can influence calibration accuracy and compliance.



1 - Tolerance Values

The most noticeable difference lies in the tolerance ranges.
ASME B89.1.9 gauge blocks generally allow slightly looser tolerances at lower grades (such as Grade 1 and Grade 2) compared to ISO 3650 standards. This means that while both meet high precision levels, ISO-grade blocks often provide tighter control for laboratory or reference-grade applications.

For industries requiring ultra-precision calibration, such as aerospace or medical device manufacturing, ISO-compliant sets may be preferred.



2 - Environmental Requirements

The ISO 3650 standard also defines stricter environmental and surface finish requirements.

ISO specifies that calibration must occur at a reference temperature of 20°C (68°F) under controlled humidity and cleanliness conditions.
These parameters help minimize thermal expansion and surface deformation, ensuring measurement stability and international traceability.

While ASME B89.1.9 also recognizes temperature control as critical, its environmental specifications are less prescriptive, offering more flexibility for production-floor use.



3 - Marking Conventions

Another key distinction lies in measurement markings.
ASME-compliant gauge blocks are typically marked in inches, aligning with the imperial system used across U.S. manufacturing and calibration laboratories.
In contrast, ISO 3650 blocks may feature metric, inch, or dual markings, making them more versatile for global calibration networks and multinational production facilities.



Which Standard Should You Choose?

If you’re based in the United States or Canada, ASME B89.1.9 gauge block sets are usually the best choice for compatibility with local calibration labs and domestic measurement systems.

However, if your organization operates internationally or must align with global OEM or ISO 9001 requirements, an ISO 3650-certified set provides broader traceability and interoperability.



How to Choose the Right Gauge Block Grade



Grade K / Grade 0 – For Calibration and Reference Standards

Grade K (sometimes called Calibration Grade) and Grade 0 gauge blocks are the most precise available commercially.
These blocks are used in metrology laboratories, national standards institutes, and high-precision calibration environments where measurement uncertainty must be virtually zero.

• Best for: CMM calibration, master block sets, and laboratory reference standards

• Typical tolerance: ±0.05 µm to ±0.2 µm

• Recommended when: You need traceable accuracy according to ISO 3650 or ASME B89.1.9

• Common materials: Ceramic or carbide, for superior thermal stability and wear resistance

If your facility performs internal calibrations or must meet ISO 9001 or AS9100 quality standards, Grade K or Grade 0 gauge blocks are essential investments.



Grade 1 – For Inspection and Toolroom Applications

Grade 1 gauge blocks strike the perfect balance between accuracy and affordability.
They are ideal for toolrooms, inspection departments, and precision manufacturing setups, where consistent results are crucial but laboratory-level precision is not mandatory.

• Best for: Setting micrometers, height gauges, dial indicators, and bore gauges

• Typical tolerance: ±0.2 µm to ±0.5 µm

• Used by: Aerospace, automotive, and machining companies for intermediate precision tasks

Because of their reliability and durability, Grade 1 blocks are often considered the industry standard for most quality control and production verification operations.

Grade 2 or Workshop Grade – For Production and Everyday Use

Grade 2 and Workshop-grade gauge blocks are designed for routine checks, machine setups, and general shop floor measurements.
They offer solid accuracy at a lower cost, making them perfect for daily production environments where ultra-precision is not required.

• Best for: Machine calibration, fixture setup, and basic part verification

• Typical tolerance: ±0.5 µm to ±1.0 µm

• Ideal for: Manufacturing plants, maintenance departments, and training facilities

Although not suited for calibration tasks, Grade 2 sets are robust, easy to maintain, and provide excellent value for high-volume industrial use.



Gauge Block Materials and Stability

The material composition of a gauge block plays a crucial role in its accuracy, durability, and long-term dimensional stability. Choosing the right material can significantly extend the life of your gauge block set and ensure that your measurements remain repeatable, traceable, and reliable under varying conditions.

Below are the three most common materials used in precision gauge blocks, each offering distinct performance advantages depending on the environment, application, and frequency of use.



Steel Gauge Blocks – Durable and Traditional Choice

Steel gauge blocks have been the industry standard for decades. Made from high-grade alloy steel or stainless steel, they provide a strong balance between stability and affordability.

• Advantages:

  • Excellent dimensional stability under controlled temperatures

  • Tough and durable, resistant to mechanical wear

  • Ideal for laboratory calibration and general inspection

• Considerations:

  • Require regular oiling and cleaning to prevent corrosion

  • Sensitive to temperature changes - expansion can affect accuracy if not measured at 20°C (68°F)

Steel gauge blocks are a great option for precision environments with proper climate control and maintenance. However, for humid or production-heavy settings, corrosion-resistant materials may perform better.



Ceramic Gauge Blocks – Non-Corrosive and Thermally Stable

Ceramic gauge blocks (typically made from zirconia or alumina-based ceramics) have become increasingly popular due to their non-corrosive nature and exceptional thermal stability.

• Advantages:

  • Completely rust-proof, requiring minimal maintenance

  • Thermally stable, minimizing expansion or contraction with temperature changes

  • Excellent wear resistance — ideal for frequent use in toolrooms and inspection areas

  • Maintain flatness and parallelism over long-term use

• Considerations:

  • Slightly more brittle than steel or carbide

  • Typically higher in cost

Because of their low maintenance and high repeatability, ceramic gauge blocks are ideal for daily measurement routines, educational labs, and clean manufacturing environments where consistency is key.



Carbide Gauge Blocks – Maximum Hardness and Longevity

For the most demanding production environments, tungsten carbide gauge blocks offer superior hardness, wear resistance, and long-term dimensional stability.

• Advantages:

  • Extremely hard and dense — up to three times harder than steel

  • Maintain calibration for extended periods, even with heavy use

  • Ideal for high-volume production lines, CMM setup, and industrial calibration

  • Resistant to deformation and surface scratches

• Considerations:

  • Heavier and more expensive than other materials

  • Can chip if dropped due to high brittleness

Carbide blocks are the go-to choice for precision manufacturing and metrology labs that demand long-lasting accuracy and minimal wear over time.



Choosing the Right Material

When selecting gauge blocks, match the material properties to your working environment:

• For controlled labs - Choose steel or ceramic for precision and traceability.

• For high-volume industrial use - Preferably choose carbide for unmatched wear resistance.

• For humid or variable environments - Ceramic provides stability without corrosion risk.

The right material not only preserves accuracy but also reduces the frequency of recalibration, helping you maintain ISO 3650 and ASME B89.1.9 compliance while extending the service life of your gauge block set.



How to Care for Gauge Blocks

Even the most precisely manufactured gauge blocks will lose accuracy over time if not properly maintained. Because these tools are the foundation of dimensional calibration, their care directly impacts your measurement reliability, traceability, and compliance with international standards like ISO 3650 and ASME B89.1.9.

Proper storage, handling, and cleaning not only preserve their accuracy but also extend their usable life, ensuring that every calibration or inspection you perform remains within certified tolerance.

Below are key gauge block care and maintenance tips every engineer, machinist, or metrologist should follow:



Clean Before and After Every Use

Before using your gauge blocks, always clean both the block surface and your work area to remove oil, dust, or debris. Even a tiny particle can alter measurement readings by several microns.

• Use a lint-free cloth or specialized gauge block cleaner (never paper towels).

• After use, remove any residue or wringing oil to prevent buildup.

• Lightly apply a protective oil film to steel gauge blocks before storage to prevent corrosion.

Proper cleaning helps ensure that each block wrings perfectly and maintains flatness and parallelism across its surface.



Store in Climate-Controlled Conditions

Gauge blocks are highly sensitive to temperature and humidity changes. Even small variations can cause thermal expansion or contraction, leading to inaccurate length readings.

• Store your gauge blocks in a climate-controlled environment — ideally at 20°C (68°F).

• Avoid direct sunlight or areas near heating/cooling vents.

• Keep them in a protective case with anti-corrosion paper or silica gel packs.

Maintaining stable environmental conditions ensures long-term dimensional stability and traceable measurement results.





Handle with Gloves

Your hands naturally contain oils, salts, and moisture that can lead to corrosion or surface contamination. To avoid damaging precision surfaces, always handle gauge blocks with clean cotton or nitrile gloves.

• Never touch the measuring faces directly.

• When wringing blocks together, ensure both surfaces are clean, dry, and free of fingerprints.

This small habit greatly reduces the risk of oxidation, staining, and wear over time — especially for steel and carbide blocks.



Recalibrate Regularly

Even with careful handling, gauge blocks gradually experience wear, micro-scratches, and dimensional drift. Regular calibration ensures that they remain within the manufacturer’s specified tolerance.

• Recommended frequency: Every 12 months or after heavy usage, depending on your quality system.

• Use an accredited calibration lab traceable to NIST or equivalent standards.

• Maintain calibration certificates for compliance with ISO 9001, ISO/IEC 17025, or ASME B89.1.9 requirements.

Regular recalibration confirms that your measurements remain accurate, traceable, and audit-ready.



Traceability and Calibration Certificates

When it comes to precision measurement, traceability is not just a recommendation but an essential requirement for ensuring accuracy, consistency, and compliance across every part of your operation.

Whether you’re working in manufacturing, quality assurance, or metrology, always make sure your gauge block set includes a traceable calibration certificate from an accredited laboratory.



What Is Traceability in Metrology?

In simple terms, traceability means that every measurement result can be linked through an unbroken chain of comparisons to a recognized national or international standard, such as NIST (National Institute of Standards and Technology) in the United States, PTB in Germany, or NPL in the UK.

This chain of comparison, documented through calibration certificates, ensures that your gauge block’s dimensions are verified against higher-order standards using calibrated instruments under controlled environmental conditions.

In other words, traceability guarantees that the measurements you take today are accurate, repeatable, and globally comparable.



Why Calibration Certificates Matter

A calibration certificate is official documentation issued by an accredited calibration lab confirming that your gauge blocks have been tested, measured, and certified according to international standards like ISO 3650, ASME B89.1.9, or ISO/IEC 17025.

Each certificate typically includes:

• The serial number and nominal size of each block

• The measured deviation from nominal

• The measurement uncertainty

• The environmental conditions during testing

• The traceability statement to a national metrology institute (e.g., NIST)

This document acts as proof that your gauge blocks provide verifiable, standard-based measurements, essential for ISO 9001, AS9100, or IATF 16949 compliance.



How to Verify a Traceable Calibration Certificate

To ensure your gauge blocks truly meet international traceability requirements, check that the calibration certificate:

1. Lists the accredited lab’s name and accreditation number (e.g., A2LA or NVLAP in the U.S.).

2. References NIST or an equivalent national standard in the traceability statement.

3. Specifies uncertainty values within your operational tolerance limits.

4. Includes calibration date and recommended recalibration interval (usually every 12 months).

If your certificate lacks this information, your gauge blocks may not be fully traceable, which can compromise audits, certifications, or product quality verification.



Maintaining Traceability Over Time

Traceability isn’t permanent. Similar to getting your hair cut regularly, it must be maintained through regular recalibration.

Environmental conditions, handling, and wear can gradually affect the block’s length, meaning your calibration certificate’s validity depends on proper care and recalibration schedules.

• Recalibrate annually or per your usage intensity.

• Work only with ISO/IEC 17025-accredited calibration labs.

• Retain all past calibration certificates for audit trails and process validation.

By keeping your gauge blocks calibrated and documented, you ensure every measurement aligns with global metrology standards, building confidence and credibility in your results.



Final Thoughts

Understanding gauge blocks grades isn’t just the job of metrologists. It’s critical for engineers, machinists, and quality professionals in every precision-driven industry. Whether you work in manufacturing, aerospace, automotive, or medical device production, gauge blocks form the foundation of dimensional measurement and calibration.

Every tool that measures length from micrometers and calipers to CMMs (Coordinate Measuring Machines) and height gauges ultimately depends on gauge blocks as a reference standard. Selecting the correct grade ensures that these instruments deliver accurate, traceable, and repeatable results, helping maintain process capability and product conformity.





The Role of Gauge Block Grades in Daily Operations

Each gauge block grade corresponds to a specific tolerance level and intended use from ultra-precise Grade K or Grade 0 blocks used in calibration labs to durable Grade 2 or workshop-grade blocks used on production floors. Understanding these differences allows professionals to:

• Prevent measurement errors that lead to part rejections or rework

• Maintain compliance with international standards like ISO 3650, ASME B89.1.9, and BS 4311

• Improve productivity by using the right grade for the right task

• Extend tool life by avoiding overuse of high-grade blocks for routine checks

In essence, knowing how to match gauge block grades with your measurement requirements protects both your quality standards and your bottom line.



Practical Applications of Gauge Block Grades

No matter your role in production or inspection, gauge blocks are part of your workflow often indirectly. For example:

• Setting up a CMM (Coordinate Measuring Machine): High-accuracy Grade 0 or K blocks ensure reference accuracy for 3D measurements.

• Checking a micrometer or caliper: Grade 1 blocks are ideal for verifying small measuring tools quickly and reliably.

• Calibrating a height gauge or fixture setup: Grade 2 or workshop-grade blocks offer enough precision for production setups without unnecessary cost.

By understanding which grade best fits each scenario, you can optimize accuracy, minimize downtime, and ensure traceable results across your measurement system.





Precision, Compliance, and Confidence

Selecting the correct gauge block grade means more than just meeting technical specifications — it’s about achieving confidence in every measurement.
When your instruments are verified with traceable, properly graded blocks, you ensure:

• Precision – Every component meets design intent.

• Compliance – Measurements align with ISO and ASME standards.

• Confidence – Your inspection results are defensible and repeatable.

In today’s competitive manufacturing landscape, measurement accuracy is quality assurance — and gauge block grades are where that assurance begins.
