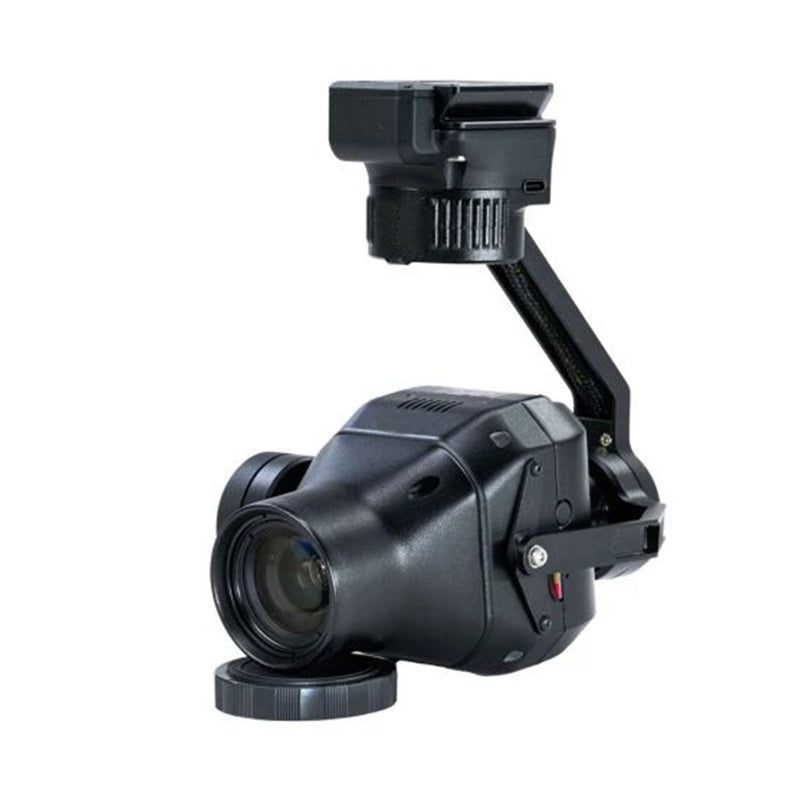

Inspired Flight Sentera 65R - IF800/IF1200A Payload
Compatible with IF800 & IF1200
The Sentera 65R, the first ultra-high-resolution precision sensor designed specifically for seamless integration with drone systems, including RTK systems
With a ground sampling distance of 0.45cm/pixel, enhance efficiency and accuracy by capturing more pixels per image. This allows you to cover more ground significantly faster than any other camera available
The 65R is engineered for easy integration with drones, focusing on ultra-high-resolution aerial image capture to support critical decisions in survey and mapping applications
Whether you need an RGB mosaic, a detailed digital surface model (DSM), or in-depth analytics, the 65R can easily generate the data required for your specific use case, whether it's surveying, modeling, or mapping
Resolution & Lens
Gipxel GMAX3265
Resolution: 9344 x 7000
HFOV: 57.6° x 44.8°
GSD @ 38m (125 ft): 0.45cm
GSD @ 120m (200 ft): 1.43cm
Focal Length: 27mm
Shutter - Global
Pixel Size - 3.2um
Dimensions - 6.35cm x 6.3m x 10.64cm (2.50" x 2.48" x 4.19")
Weight - 330 grams (including lens)
Power - 9-26V Input, 12W Typical
Frame Rate - 3 fps
Image Format - JPEG
Storage - 512 GB Internal PCIe NVMe
Interfaces:
USB-C
Gigabit Ethernet
UART
Digital I/O
Input Pulse/PWM for Image Capture
Input Pulse Per Second (PPS) for Time/Position Sync
Output Pulse for Image Exposure Sync
Features:
Integrated IMU
Pushbutton Trigger Option
