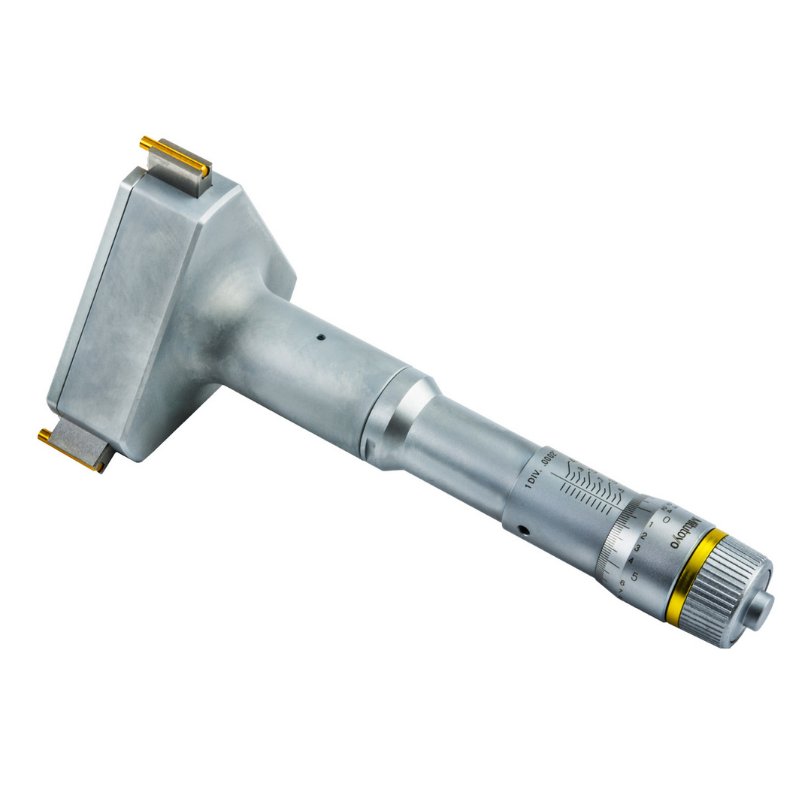

Mitutoyo 368-273 Holetest 3.5 - 4" Carbide,TN

Mitutoyo 368 Holtest Series

  • Measures internal diameters from 0.08" to 12"
  • Self-centering 3-point contact
  • Mechanical design
  • Ideal for blind and short bore measurement
  • High accuracy
by Mitutoyo
$1,950.00
Availability: Translation missing: en.general.icons.icon_check_circle icon Only 1 left!

Notify me when back in stock

trustbadge

FREE SHIPPING

trustbadge

ALWAYS TAX FREE

trustbadge

PRICE MATCH GUARANTEE

trustbadge

EASY 30-DAY RETURN

Mitutoyo 368 Holtest Series

The Mitutoyo 368 Holtest Series (Inch) provides precise, repeatable internal diameter measurements using a proven self-centering 3-point measuring system. Designed for accuracy and durability, these mechanical Holtest gages deliver stable results even in short or blind bores. With a comprehensive measuring range from 0.08 in to 12 in, the 368 Series supports inspection, setup, and quality control across machining, aerospace, automotive, and general manufacturing applications.



Key Features

  • Inch measuring range from 0.08" to 12"
  • Self-centering 3-point contact for consistent bore measurement
  • Mechanical operation - no batteries or electronics
  • High accuracy across small and large diameter ranges
  • Ideal for blind and short bores
  • Rugged construction for shop-floor reliability



Specifications

Inch SKU Number Inch Range Accuracy Extension Rod
368-021 0.08 in - 0.1 in
±2μm (max diff. 2μm)
±0.0001 in (max diff. 0.0001 in)
-
368-022 0.1 in - 0.12 in
368-023 0.12 in - 0.16 in
368-024 0.16 in - 0.2 in
368-025 0.2 in - 0.24 in
368-026 0.24 in - 0.28 in
368-261 0.275 in - 0.35 in
368-262 0.35 in - 0.425 in
100mm (952322)
368-263 0.425 in - 0.5 in
368-264 0.5 in - 0.65 in
±3μm (max diff. 3μm)
±0.00015 in (max diff. 0.00015 in)
150mm (952621)
368-265 0.65 in - 0.8 in
368-266 0.8 in - 1 in
150mm (952622)
368-267 1 in - 1.2 in
368-268 1.2 in - 1.6 in
368-269 1.6 in - 2 in
368-270 2 in - 2.5 in
150mm (952623)
368-271 2.5 in - 3 in
±4μm (max diff. 4μm)
±0.0002 in (max diff. 0.0002 in)
368-272 3 in - 3.5 in
368-273 3.5 in - 4 in
368-274 4 in - 5 in
±5μm (max diff. 5μm)
±0.00025 in (max diff. 0.00025 in)
368-275 5 in - 6 in
368-276 6 in - 7 in
368-277 7 in - 8 in
368-278 8 in - 9 in
±6μm (max diff. 6μm)
±0.0003 in (max diff. 0.0003 in)
368-279 9 in - 10 in
368-280 10 in - 11 in
368-281 11 in - 12 in



Items Included

  • Mitutoyo 368 Holtest (selected model)
  • Measuring head assembly
  • Extension rod (Sold Separately)
  • Manufacturer documentation



INSIZE ISHW-L20B Webster Hardness Tester ManualMitutoyo 368 Holtest Series Catalog

Mitutoyo 368 Holtest Series

$1,950.00

Description

Mitutoyo 368 Holtest Series

The Mitutoyo 368 Holtest Series (Inch) provides precise, repeatable internal diameter measurements using a proven self-centering 3-point measuring system. Designed for accuracy and durability, these mechanical Holtest gages deliver stable results even in short or blind bores. With a comprehensive measuring range from 0.08 in to 12 in, the 368 Series supports inspection, setup, and quality control across machining, aerospace, automotive, and general manufacturing applications.



Key Features

  • Inch measuring range from 0.08" to 12"
  • Self-centering 3-point contact for consistent bore measurement
  • Mechanical operation - no batteries or electronics
  • High accuracy across small and large diameter ranges
  • Ideal for blind and short bores
  • Rugged construction for shop-floor reliability



Specifications

Inch SKU Number Inch Range Accuracy Extension Rod
368-021 0.08 in - 0.1 in ±2μm (max diff. 2μm)
±0.0001 in (max diff. 0.0001 in) 		-
368-022 0.1 in - 0.12 in
368-023 0.12 in - 0.16 in
368-024 0.16 in - 0.2 in
368-025 0.2 in - 0.24 in
368-026 0.24 in - 0.28 in
368-261 0.275 in - 0.35 in
368-262 0.35 in - 0.425 in 100mm (952322)
368-263 0.425 in - 0.5 in
368-264 0.5 in - 0.65 in ±3μm (max diff. 3μm)
±0.00015 in (max diff. 0.00015 in) 		150mm (952621)
368-265 0.65 in - 0.8 in
368-266 0.8 in - 1 in 150mm (952622)
368-267 1 in - 1.2 in
368-268 1.2 in - 1.6 in
368-269 1.6 in - 2 in
368-270 2 in - 2.5 in 150mm (952623)
368-271 2.5 in - 3 in ±4μm (max diff. 4μm)
±0.0002 in (max diff. 0.0002 in)
368-272 3 in - 3.5 in
368-273 3.5 in - 4 in
368-274 4 in - 5 in ±5μm (max diff. 5μm)
±0.00025 in (max diff. 0.00025 in)
368-275 5 in - 6 in
368-276 6 in - 7 in
368-277 7 in - 8 in
368-278 8 in - 9 in ±6μm (max diff. 6μm)
±0.0003 in (max diff. 0.0003 in)
368-279 9 in - 10 in
368-280 10 in - 11 in
368-281 11 in - 12 in



Items Included

  • Mitutoyo 368 Holtest (selected model)
  • Measuring head assembly
  • Extension rod (Sold Separately)
  • Manufacturer documentation



INSIZE ISHW-L20B Webster Hardness Tester ManualMitutoyo 368 Holtest Series Catalog
